48 Keysight Models 6811C, 6812C, and 6813C Quick Start Guide
More transient examples
The previous examples showed how the transient system can be used to control
the output voltage amplitude. The transient system can also control output
frequency, phase, waveform shape, voltage and frequency slew rates, offset
voltage, and peak current limit. The following examples illustrate how the
transient system's Pulse mode can generate frequency, shape, phase, and voltage
slew pulses.
Key press and display Result
FREQ:M PULSE
FREQ 60
FREQ:T 50
WIDTH .1
INIT:IMMED

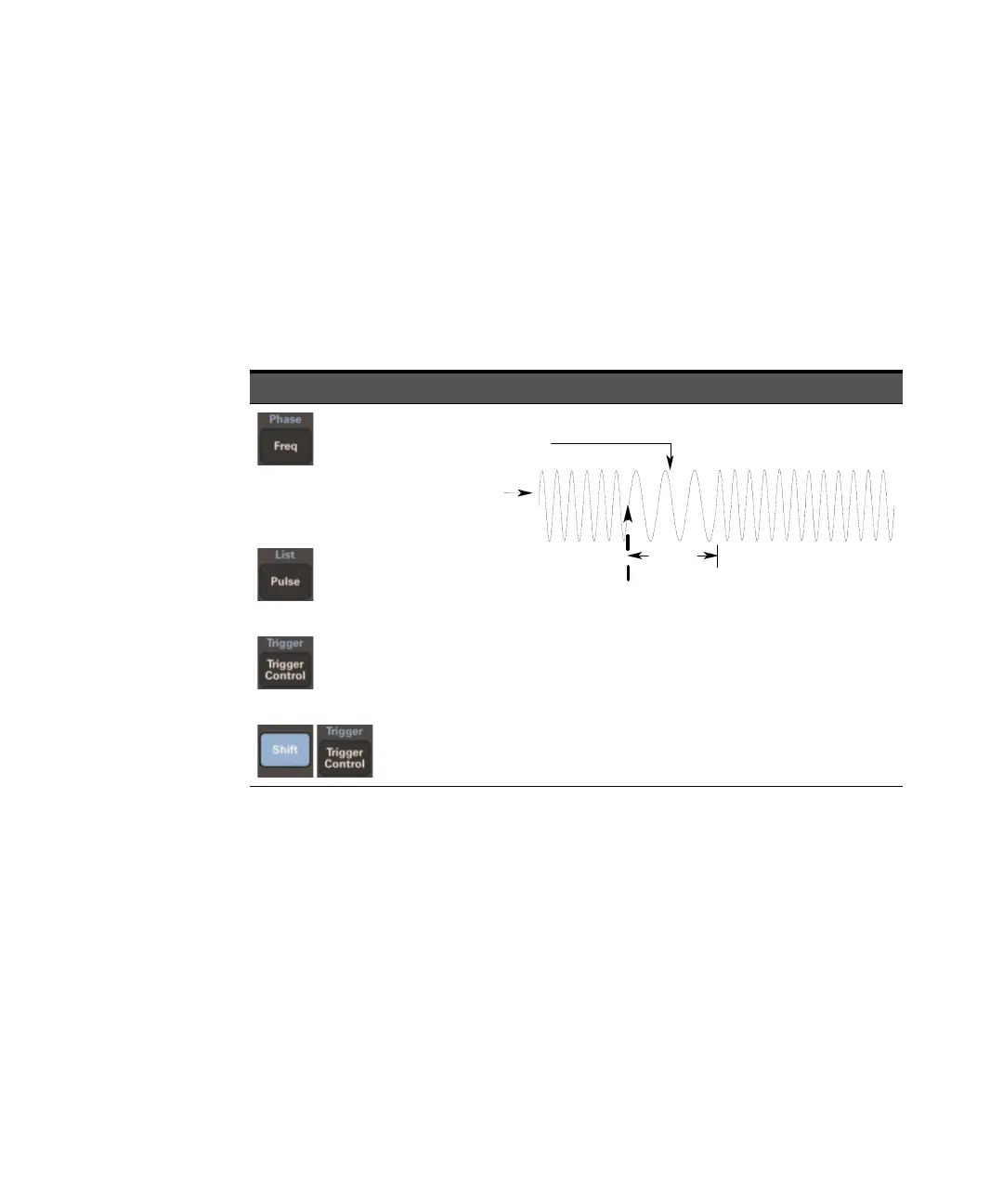

Generate output frequency.
FREQ
FREQ TRIG
width
Trigger
