Keysight Models 6811C, 6812C, and 6813C Quick Start Guide 49
SHAPE:M PULSE
SHAPE SINE
SHAPE:T SQUARE
WIDTH .05
INIT:IMMED

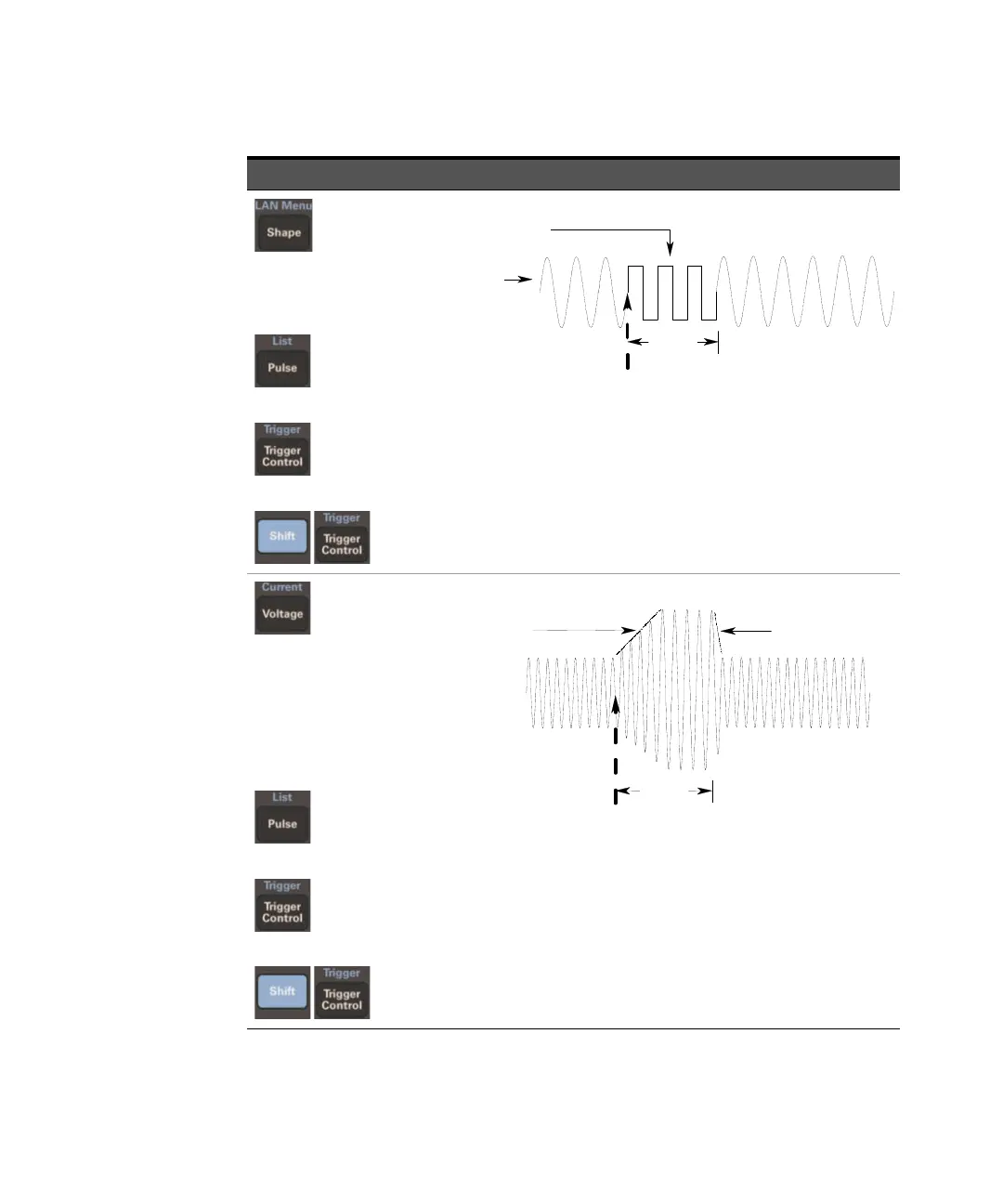

Generate waveform shape.
VOLT:M PULSE
VOLT 120
VOLT:T 150
SLEW:M PULSE
SLEW 10000
SLEW:T 1000
WIDTH .1
INIT:IMMED
Generate voltage and frequency slew rates.
Key press and display Result
SHAPE
SHAPE TRIG
width
Trigger
SLEW
SLEW TRIG
width
Trigger
