160 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide
10 Triggers

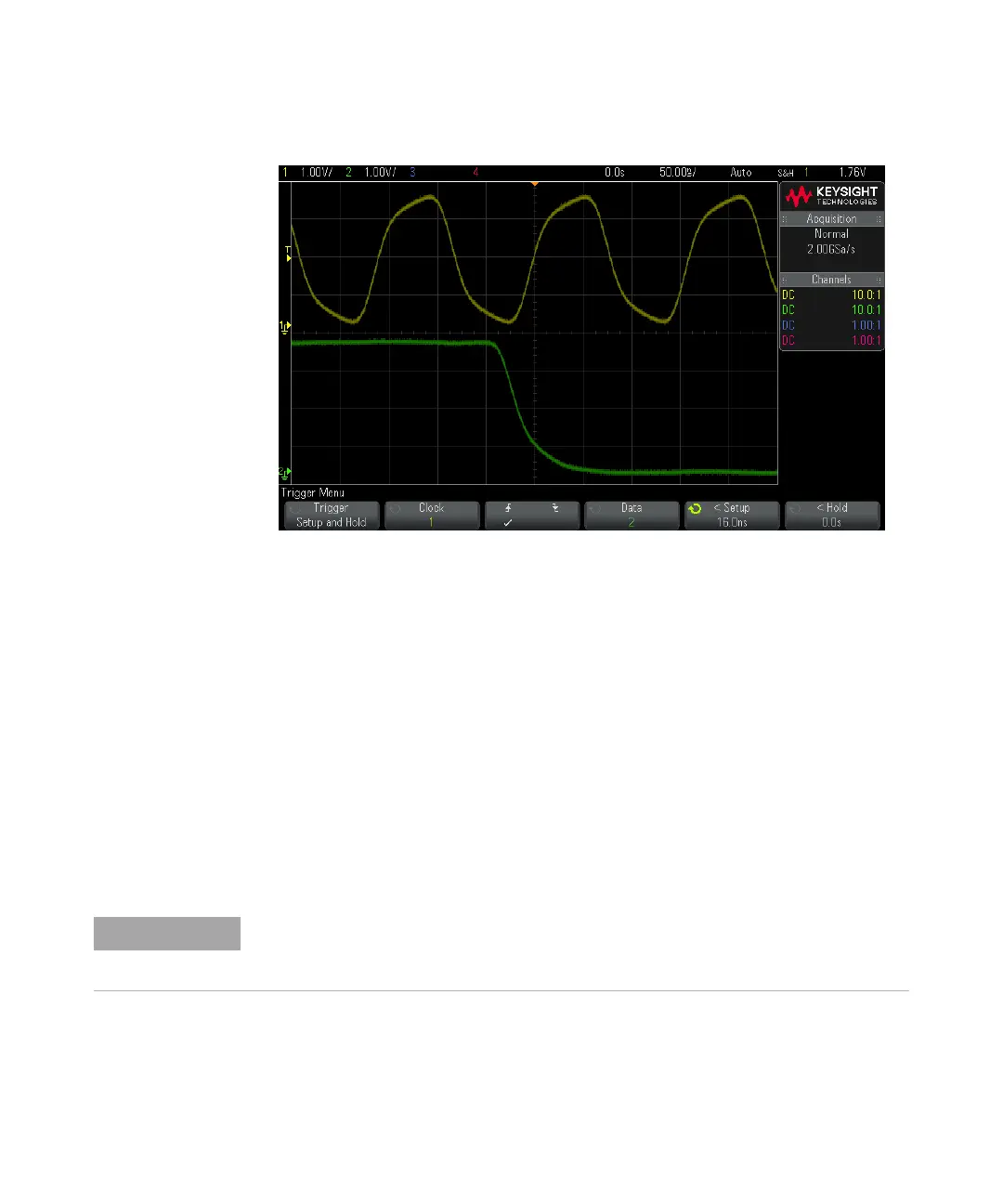

9 Press the <Hold softkey, and turn the Entry knob to select the hold time.
Video Trigger
Video triggering can be used to capture the complicated waveforms of most
standard analog video signals. The trigger circuitry detects the vertical and
horizontal interval of the waveform and produces triggers based on the video
trigger settings you have selected.
The oscilloscope's MegaZoom IV technology gives you bright, easily viewed
displays of any part of the video waveform. Analysis of video waveforms is
simplified by the oscilloscope's ability to trigger on any selected line of the video
signal.
1 Press the [Trigger] key.
It is important, when using a 10:1 passive probe, that the probe is correctly compensated. The
oscilloscope is sensitive to this and will not trigger if the probe is not properly compensated,
especially for progressive formats.
