Use the Bandwidth softkey to select the filter's -3 dB cutoff frequency.
Math Visualizations
With the advanced math measurements license, you can apply visualization math
functions that give you different ways of viewing captured data and measurement
values.
• "Magnify" on page 96
• "Measurement Trend" on page 96
• "Chart Logic Bus Timing" on page 98
• "Chart Logic Bus State" on page 99
The ratio of the input signal's Nyquist frequency and the selected -3 dB cutoff frequency
affects how many points are available in the output, and under some circumstances, there are
no points in the output waveform.

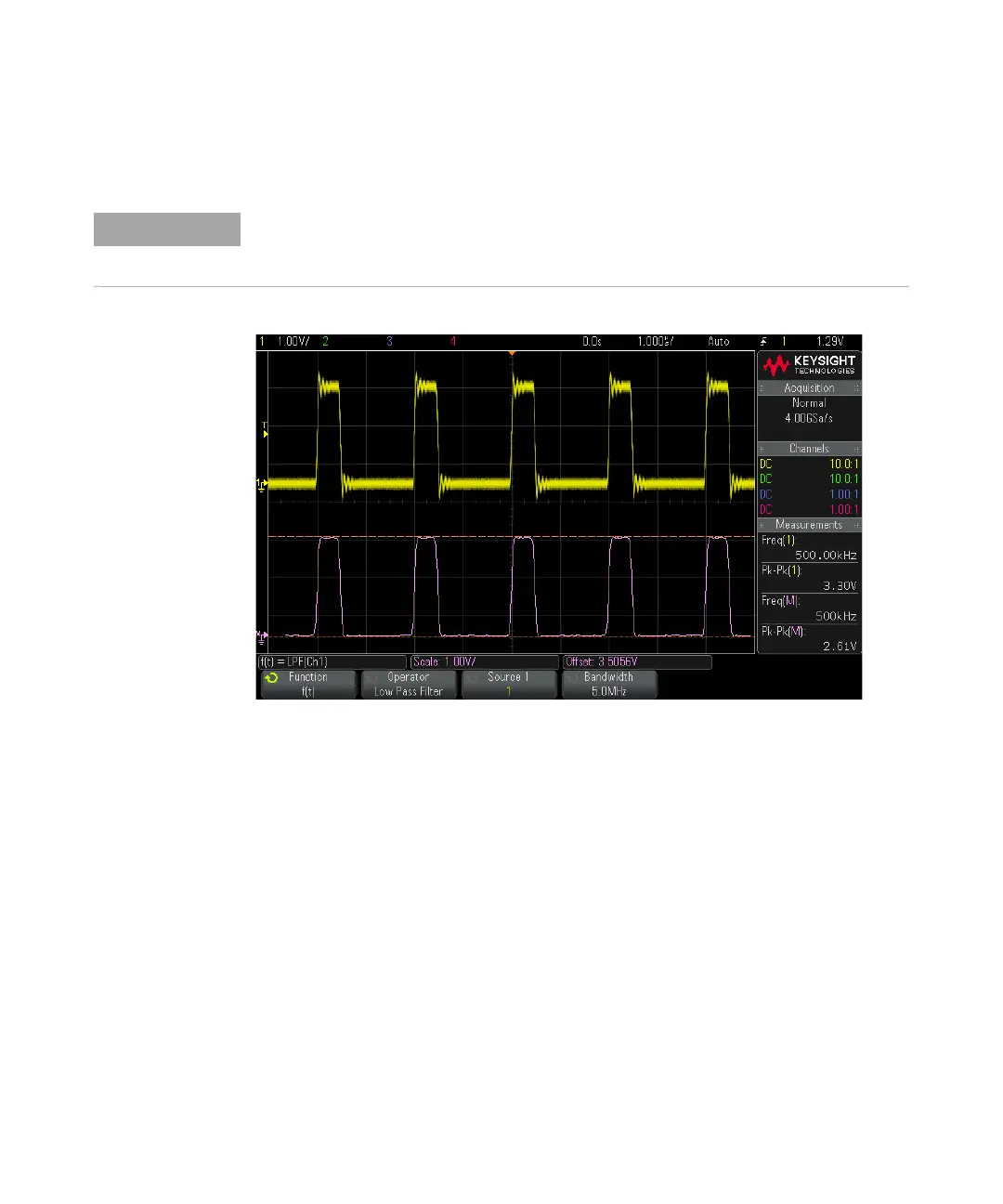

Figure 15 Example of Low Pass Filter
