Waveform Generator 17

Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 261

• "To restore waveform generator defaults" on page 272

To edit arbitrary waveforms

1 When Arbitrary is selected as the generated waveform type (see "To select

generated waveform types and settings" on page 257), press the Edit Waveform

softkey to open the Edit Waveform Menu.

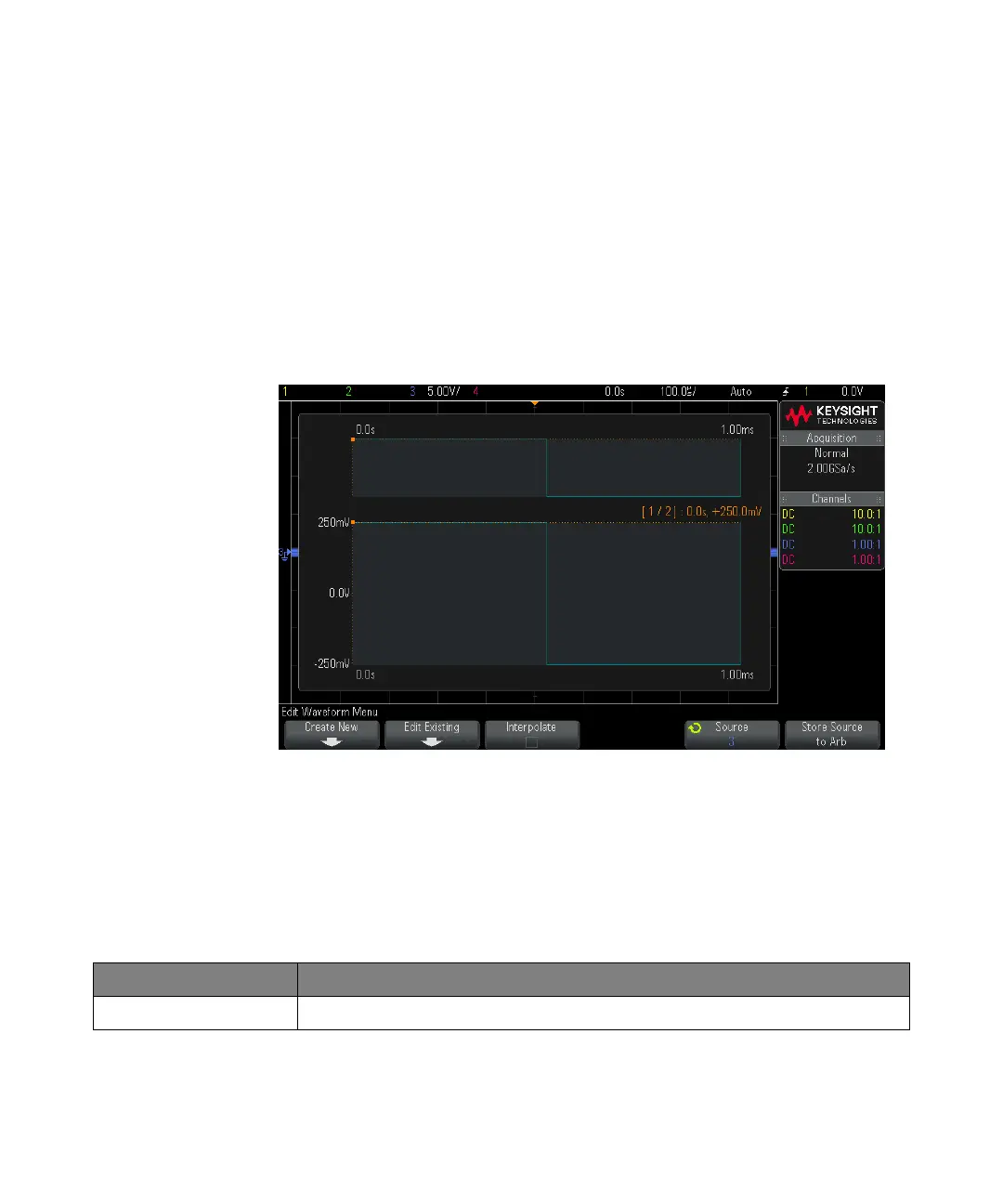

When you open the Edit Waveform Menu, you see the existing arbitrary

waveform definition. The voltage and time period you see in the diagram are

the bounding parameters — they come from the frequency and amplitude

settings in the main Waveform Generator Menu.

2 Use the softkeys in the Edit Waveform Menu to define the shape of the arbitrary

waveform:

Softkey Description

Create New Opens the New Waveform Menu. See "Creating New Arbitrary Waveforms" on page 262.
