• Invert Grat — the graticule in the image file has a white background instead of
the black backgound that appears on-screen.
• Palette — lets you choose between Color or Grayscale images.
4 Finally, press the Press to Save softkey.
A message indicating whether the save was successful is displayed.
See Also • "Adding an Annotation" on page 308
To save CSV, ASCII XY, or BIN data files
Data files can be saved to an external USB storage device.
1 Press [Save/Recall] > Save > Format; then, turn the Entry knob to select CSV data
(*.csv), ASCII XY data (*.csv), or Binary data (*.bin).
2 Press the softkey in the second position and use the Entry knob to navigate to
the save location. See "To navigate storage locations" on page 280.
3 Press the Settings softkey.
In the File Settings Menu, you have these softkeys and options:

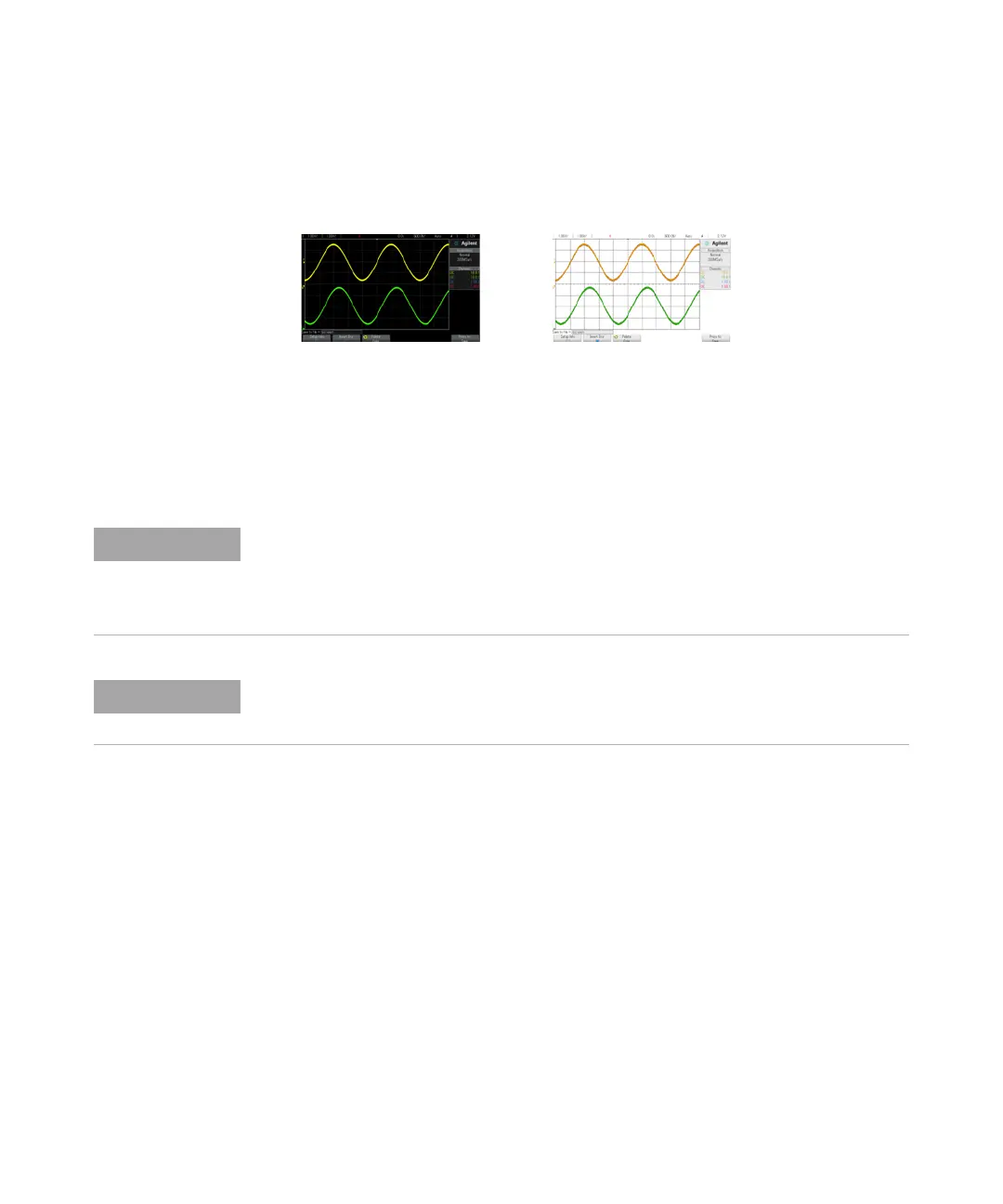

raticule Not Inverte
raticule Inverte
When saving screen images, the oscilloscope uses the last menu visited before pressing the
[Save/Recall] key. This lets you save any relevant information within the softkey menu area.
To save a screen image showing the Save/Recall Menu at the bottom, press the [Save/Recall]
key twice before saving the image.
You can also save the oscilloscope's display image using a web browser. See "Get
Image" on page 318 for details.
