Measurements 14
Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 237
Select the measurements you desire for the channels you are using (see
"Measurements Summary" on page 214).

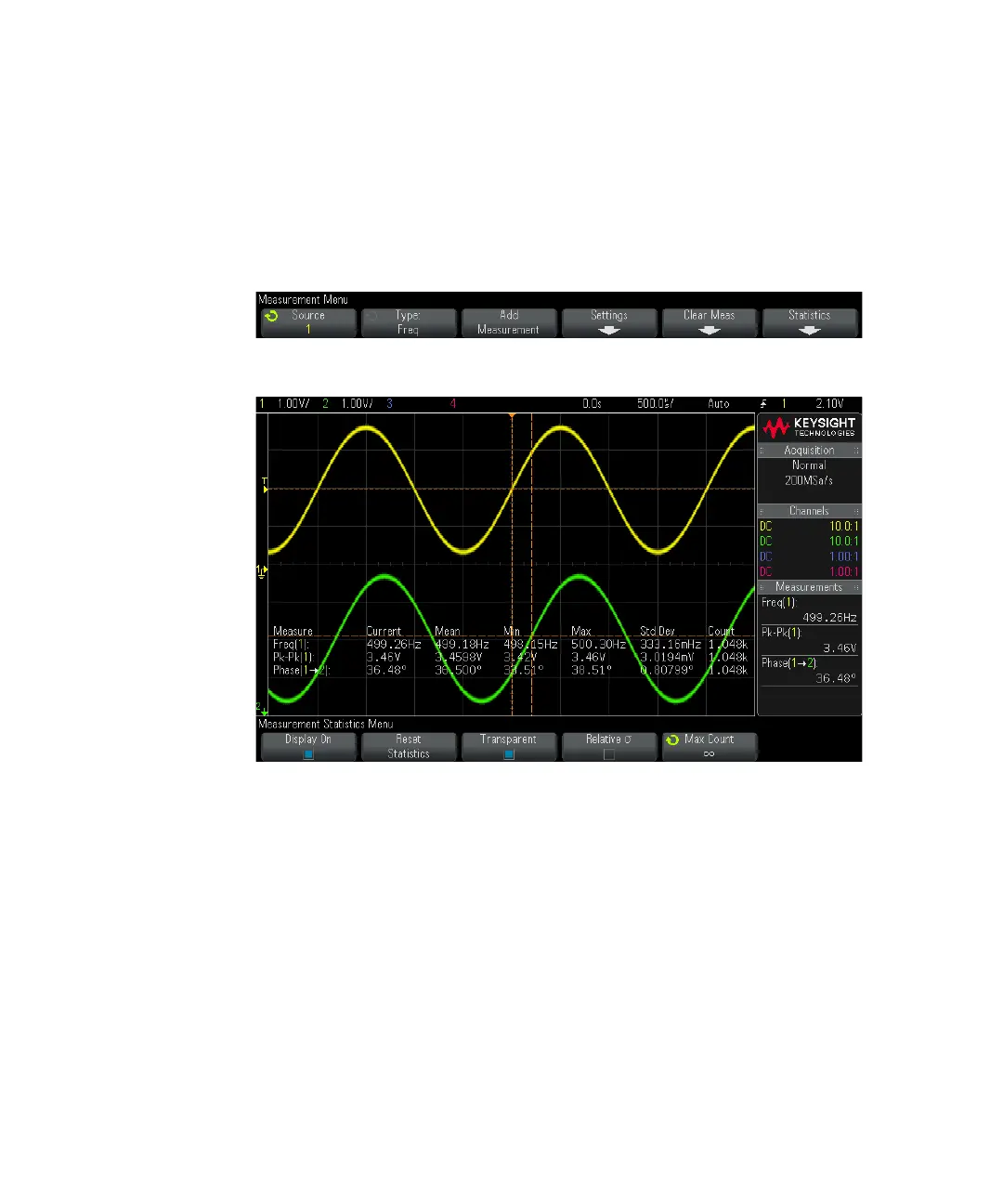

From the Measurement Menu, press the Statistics softkey to enter the Statistics
Menu.
The following statistics are shown: Name of the measurement, current measured
value, mean, minimum measured value, maximum measured value, standard
deviation, and the number of times the measurement has been made (count).
Statistics are based on the total number of captured waveforms (count).
The standard deviation shown in Statistics is calculated using the same formula
used for calculating the standard deviation measurement. The formula is shown in
the section titled "AC RMS" on page 223.
The source channel of the measurement is shown in parenthesis after the
measurement name. For example: "Freq(1)" indicates a frequency measurement on
channel 1.
