15 Mask Testing

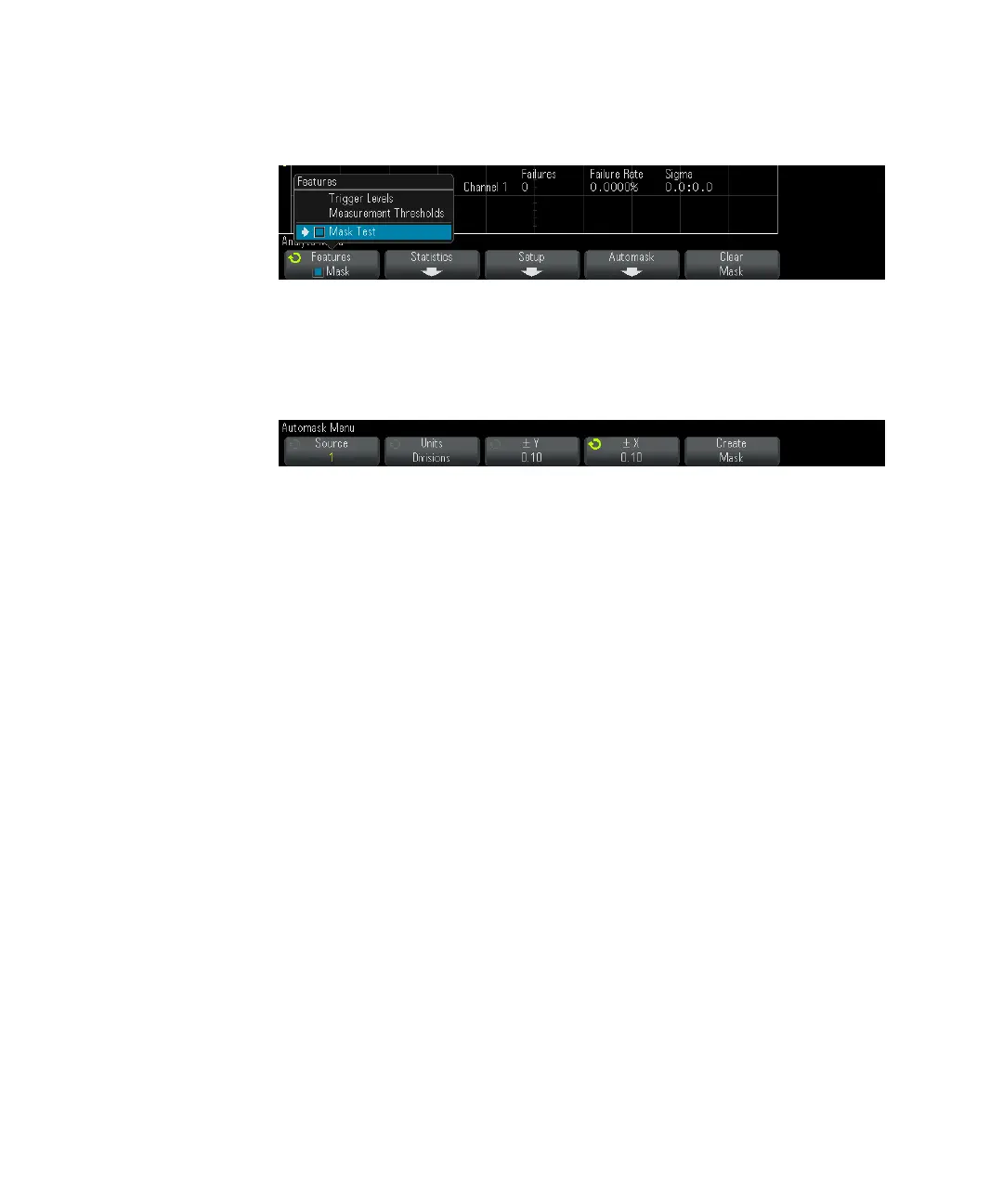

5 Press Automask.

6 In the Automask Menu, press the Source softkey and ensure the desired analog

channel is selected.

7 Adjust the mask's horizontal tolerance (± Y) and vertical tolerance (± X). These

are adjustable in graticule divisions or in absolute units (volts or seconds),

selectable using the Units softkey.

8 Press the Create Mask softkey.

The mask is created and testing begins.

Whenever the Create Mask softkey is pressed the old mask is erased and a new

mask is created.
