17 Waveform Generator
To specify the voltage values of points:
1 Press Point #; then, use the Entry knob to select the point whose voltage value
you wish to set.
2 Press Voltage; then, use the Entry knob to set the point's voltage value.
To insert a point:
1 Press Point #; then, use the Entry knob to select the point after which the new
point will be inserted.
2 Press Insert Point.
All points are adjusted to maintain uniform time spacing between points.
To remove a point:
1 Press Point #; then, use the Entry knob to select the point you want to remove.
2 Press Remove Point.
All points are adjusted to maintain uniform time spacing between points.

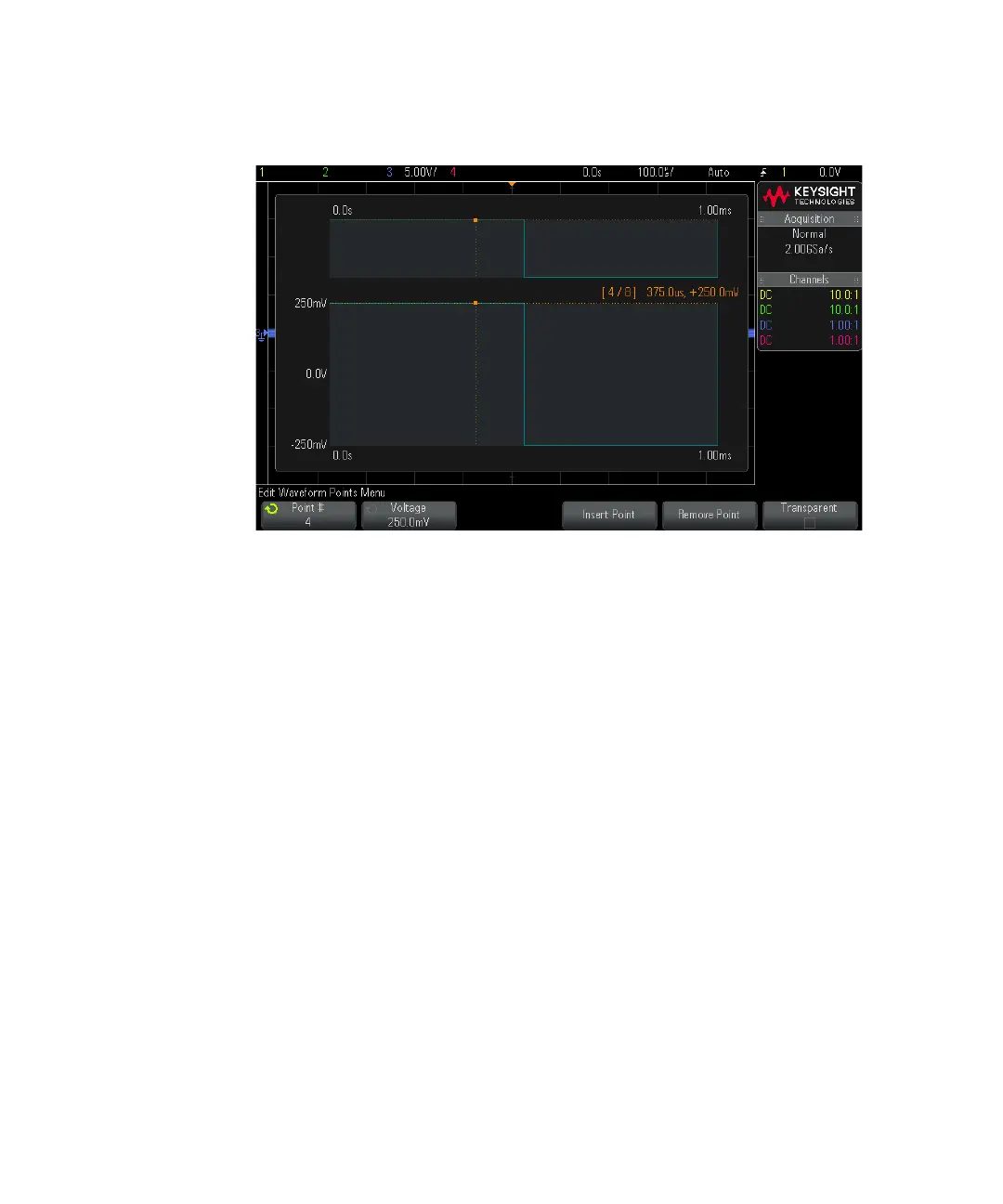

The Transparent softkey enables or disables transparent backgrounds. When
enabled, you can view underlying waveforms. When disabled, the background is
shaded.
