Keysight Agile Signal Generator Service Guide 137
Assembly Replacement
Rear Panel Plugins
Tools Required
— T-15 driver
Removal Procedure
1. Disconnect the power cord.
2. Remove the outer-cover from the signal generator. Refer to “Outer Cover”
on page 99.
3. Refer to Figure 3-34. Remove the A8 Solid State Drive (1) and the A13
Module (2) by using the T-15 driver to loosen the thumb screws where
indicated and pulling out of the rear panel.

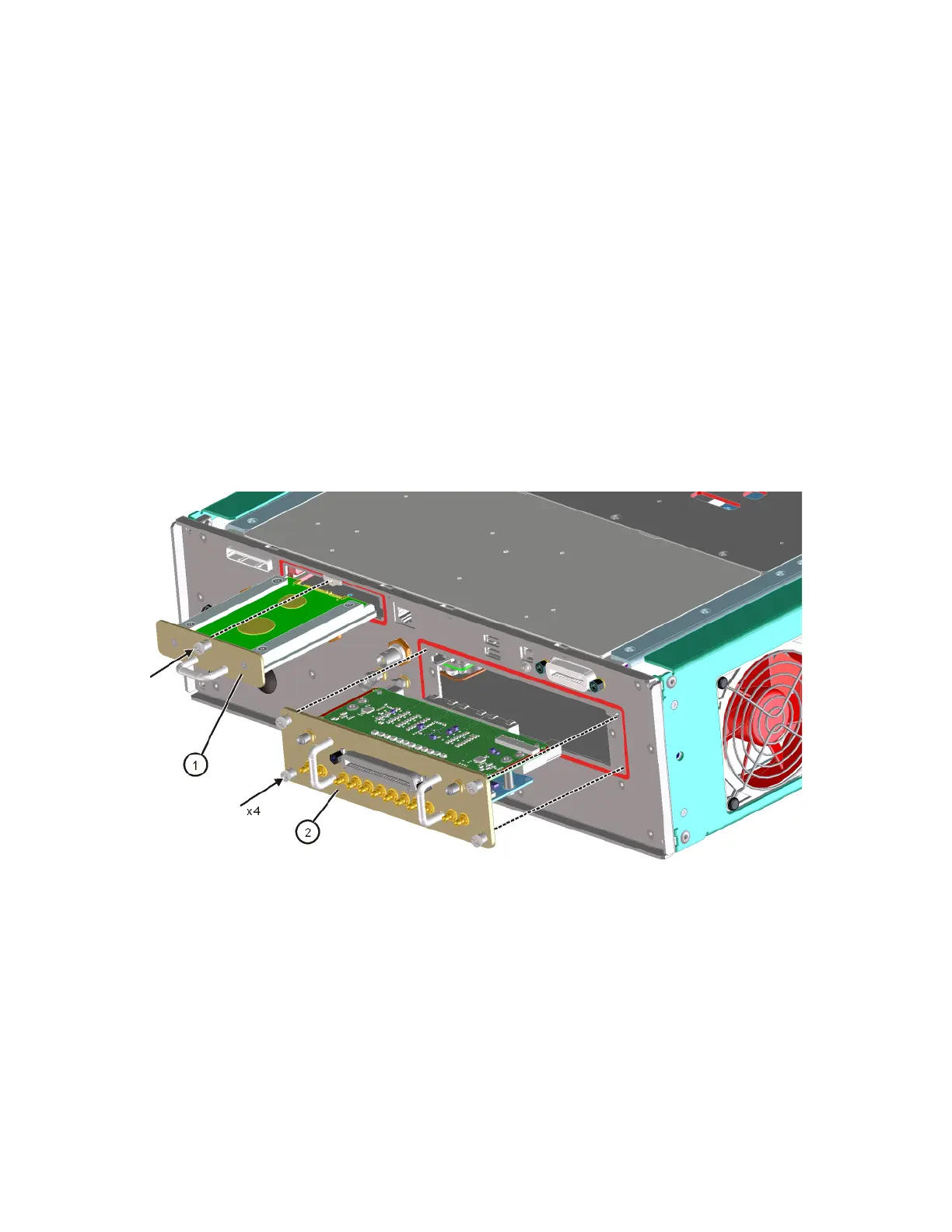

Figure 3-34 Rear Panel Assemblies Removal
Replacement Procedure
1. Reverse the order of the removal procedures.
2. Recommended torque for all screws is 9 in–lbs.
