Keysight Agile Signal Generator Service Guide 151
Assembly Replacement
Rear Panel
Tools Required
— T-10 driver
— T-15 driver
— 5/16” open-ended wrench
Removal Procedure
1. Disconnect the power cord.
2. Remove the outer-cover from the signal generator. Refer to “Outer Cover”
on page 99.
3. Refer to Figure 3-46. Remove the A8 Solid State Drive (1) and the A13
Module (2) by using the T-15 driver to loosen the thumb screws where
indicated and pulling out of the rear panel.

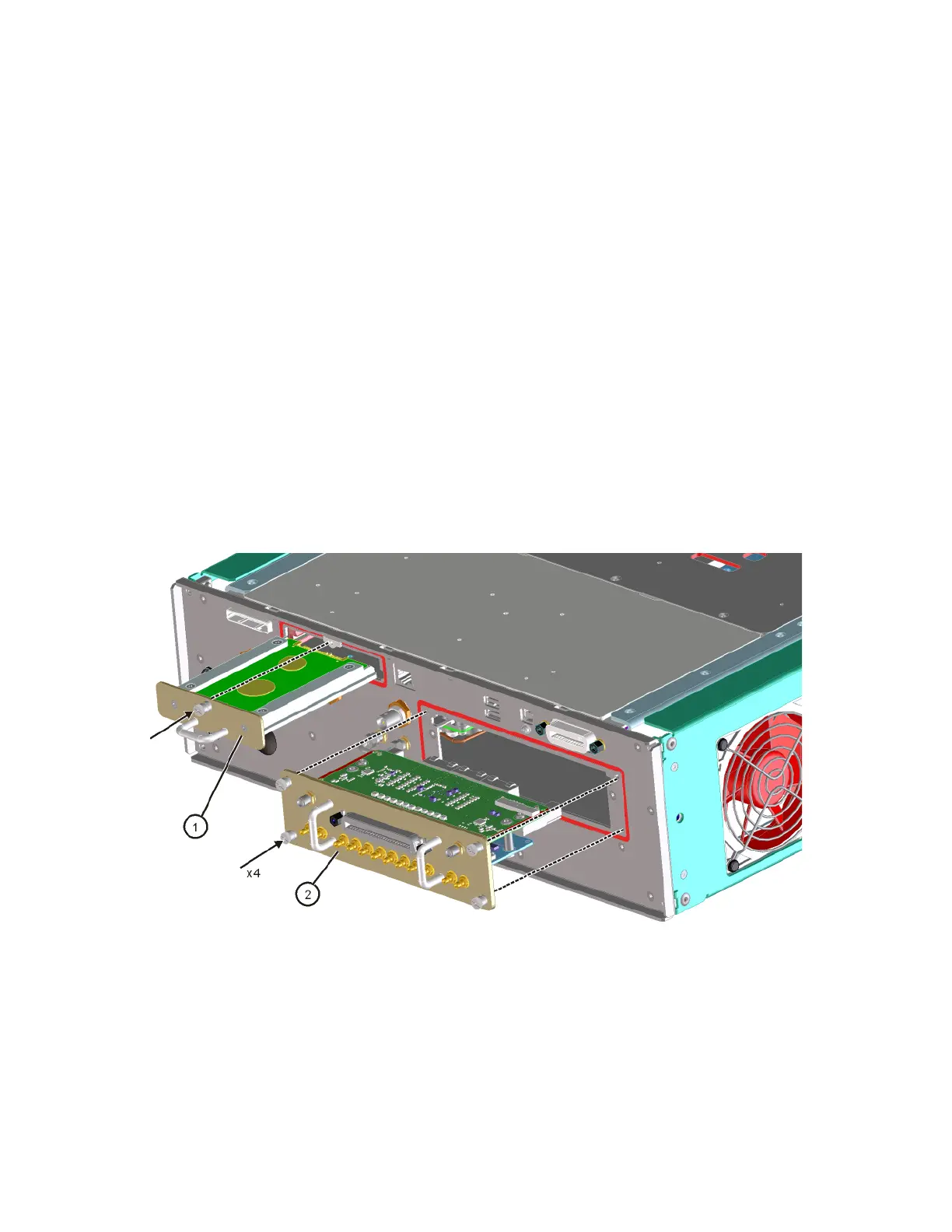

Figure 3-46 Rear Panel Assemblies Removal
