82 Keysight Agile Signal Generator Service Guide
Replaceable Parts

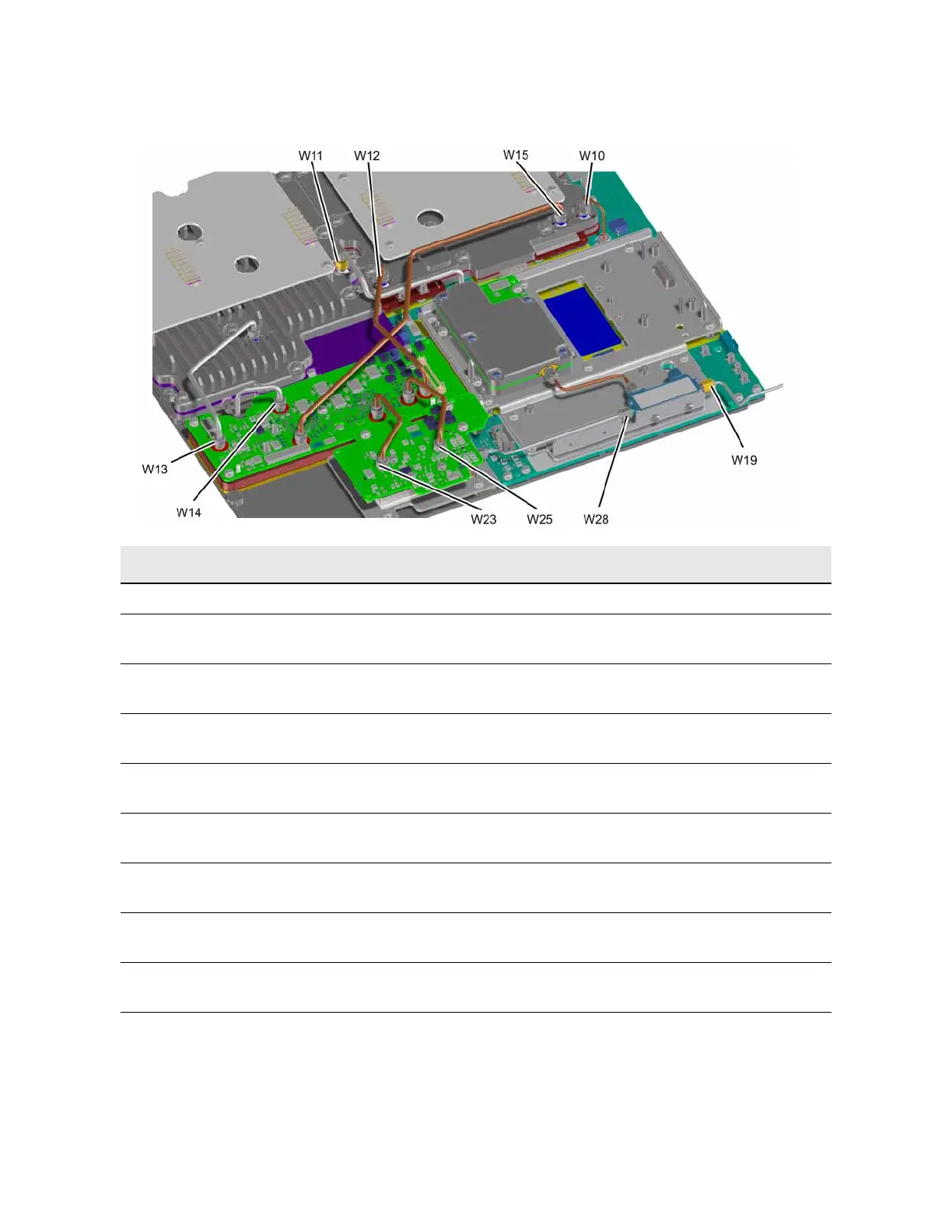

Figure 2-16 Microdeck Cables Option 540/54E, UNM
Item Description Part Number
W10 Cable Assembly - RF, Semi-Rigid, Agile Cleanup Bypass Output N5191-20122
W11 Cable Assembly - RF, Semi-Rigid, Agile Cleanup Output to Multiplier
Input
N5191-20123
W12
a
a. NOTE: for instruments with serial prefix < MY/SG/US5619xxxx, cables W12 and W15 MUST be
replaced at the same time.
Cable Assembly - RF, Semi-Rigid, Low Band Output to Mod Filter Low
Band Input
N5191-20238
W13 Cable Assembly - RF, Semi-Rigid, Multiplier Low Band Output to Mod
Filter Low Band Input
N5191-20125
W14 Cable Assembly - RF, Semi-Rigid, Multiplier High Band Output to Mod
Filter High Band Input
N5191-20126
W15
a
Cable Assembly - RF, Semi-Rigid, Mod Filter Low Band Output to Low
Band Board Input.
N5191-20239
W19 Cable Assembly - RF, Semi-Rigid, Mech Attn Output to RF Out, Option
540/54E, 2.4 mm Connector, UNM
N5191-20138
W23 Cable Assembly - RF, Semi-Rigid, Mod Filter Output to 40 GHz Doubler
Input, Option 540/54E
N5191-20240
W25 Cable Assembly - RF, Semi-Rigid, Low Band Board Output to 40 Doubler
Low Band Input, Option 540/54E
N5191-20241
W28 Cable Assembly - RF, Semi-Rigid, 40 Doubler Output to Coupler Input,
Option 540/54E
N5191-20177
