Keysight Technologies N5290/1A PNA Series User Manual

Installation Note N5222-90131 35
Description of the Upgrade
Installation Procedure for the Upgrade
Refer to Figure 15 for this step of the procedure. New parts are listed in Table 2
on page 11. Torque to 9 in-lbs.
3. Install the bias tee combiner assemblies using 0515-0372 (x4) screws as
shown.

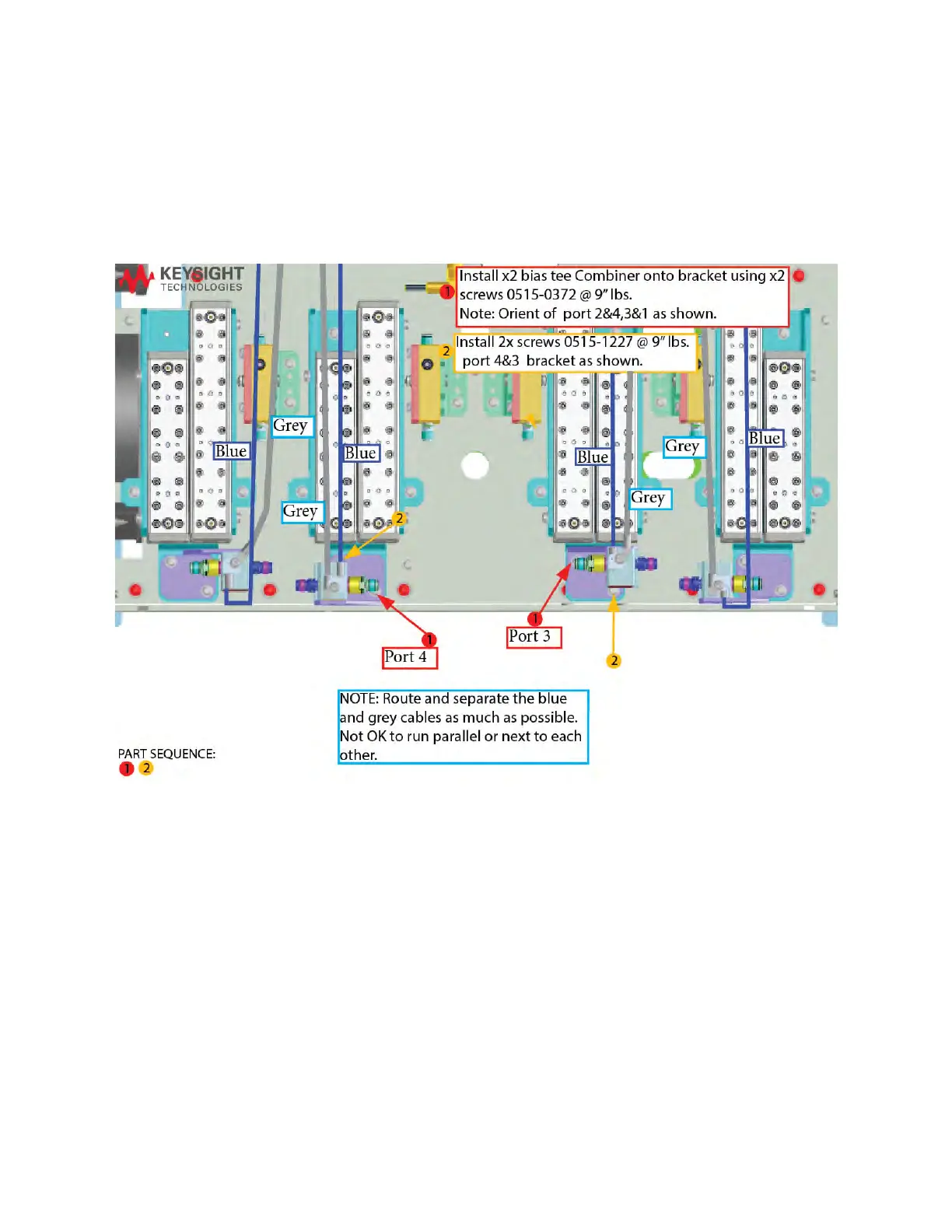

Figure 15 Bias Tee Combiner Installation (using 0515-0372, 0515-1227 screws)
