1 Introduction
Modules
To complete the N1000A, an electrical or optical input module must be
purchased and installed. Figure 5 shows an installed module. The N1000A's
module bay has four slots which can accommodate many combinations of
modules that have different slot widths:
n
One four-slot module. For example, an 86108B.
n
One three-slot model (N1060A) and one one-slot module.
n
Two two-slot modules.
n
One standard module and two mini modules.
n
Four one-slot mini-modules.
Use the supplied filler panels to cover any unused module slots. Although the
instrument is not damaged when running with uncovered module-bay slots, the
altered air flow may affect measurement accuracy.
All documentation (including specifications) for plug-in modules is located in
the N1000A’s Help system. To access the Help system, complete the
installation steps, turn on the N1000A, and click Help on FlexDCA's menu.

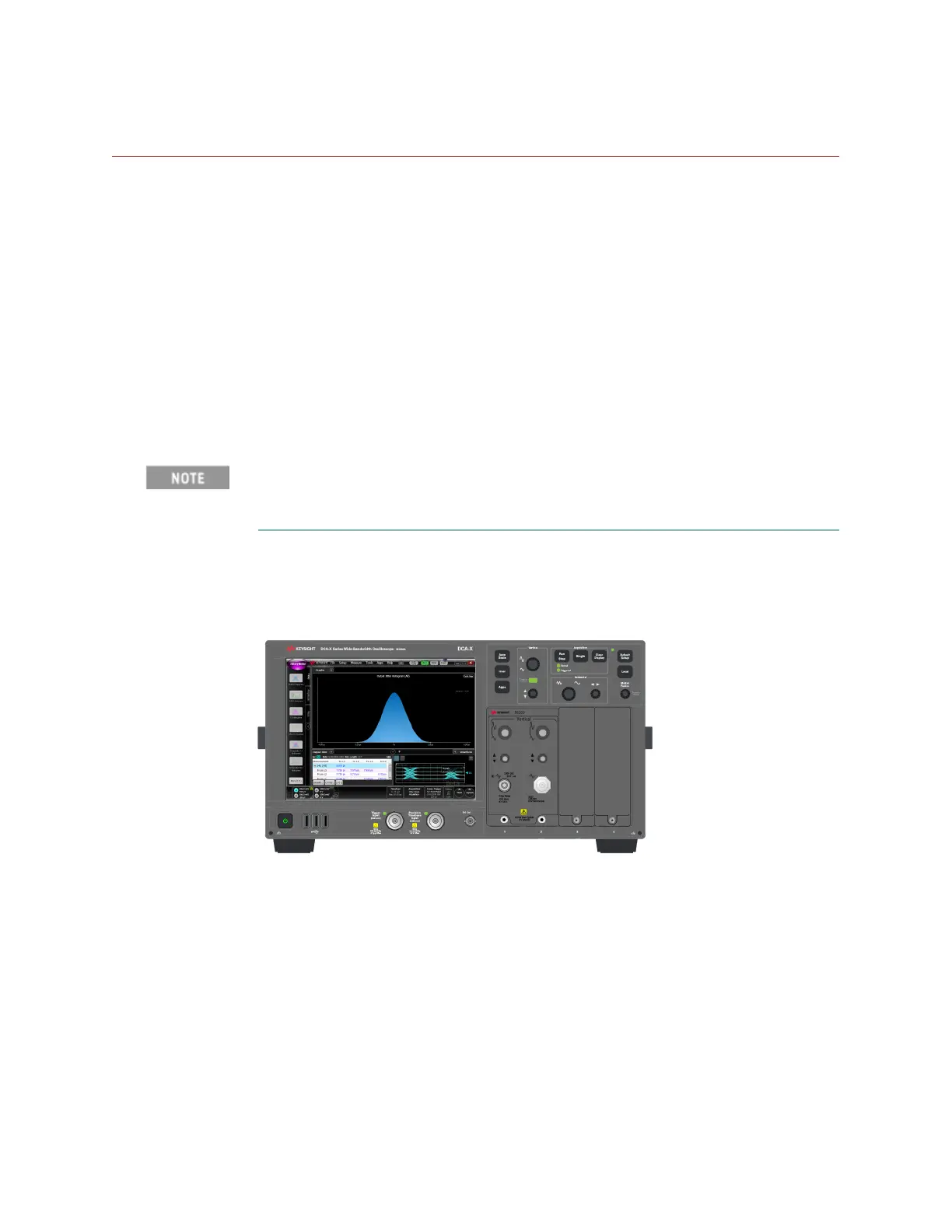

Figure 5. N1000A with a Module
Compatible Products
n
All modules released in 2017 and later plus these older modules 86105C/D,
86107A, 86108A/B, 86112A, 86115D, 86116C, 86117A, 86118A, N1045A,
and N1055A.
n
DCA-M series "modules" do not install in the N1000A's module slot bay.
Instead, these modules connect to the N1000A via USB. DCA-M modules
N1000A Quick Start Guide 9
