M8100 Series Arbitrary Waveform Generators Getting Started Guide 39
Basic Setup for M8100A 2
Review the Keysight recommended list of host computers at
http://literature.cdn.keysight.com/litweb/pdf/5990-7632EN.pdf that are
compatible with the Keysight M9505A AXIe Chassis.

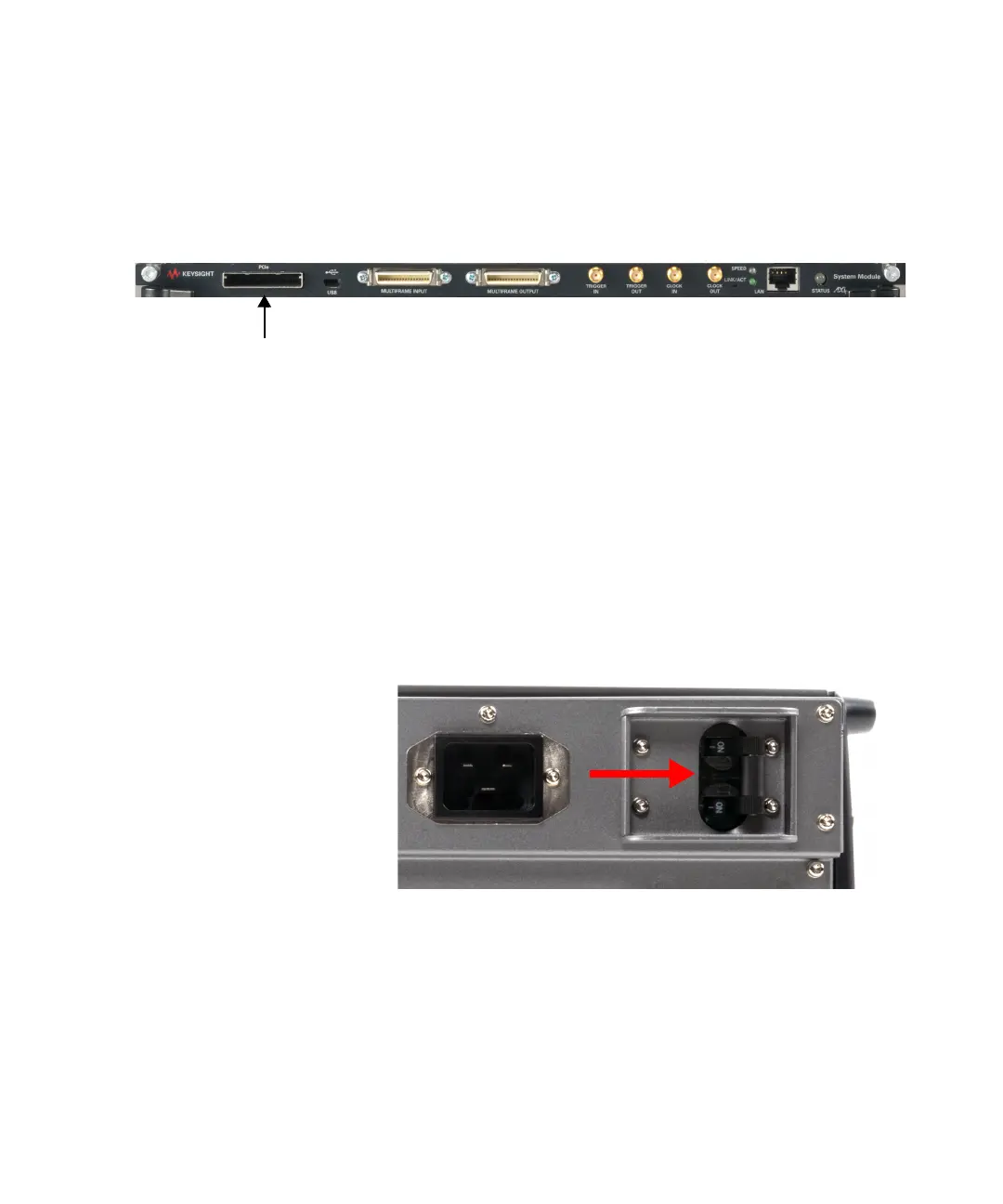

Figure 13 PCIe port on the front panel of the AXIe ESM
Step 4 - Connecting the M9505A AXIe Chassis to a Power Supply
You can use an external power supply, typically AC power mains.
1 The instrument module uses the power supplied by the M9505A AXIe
Chassis in which it is installed. The M9505A AXIe Chassis power cord
comes with the chassis shipment. Insert the power cord into the inlet
at the rear of the chassis.
2 Connect the cord to an appropriate AC power main.
3 Push the circuit breaker to the right, which is the ON position.
Figure 14 Chassis circuit breaker
