50 M8100 Series Arbitrary Waveform Generators Getting Started Guide
2 Basic Setup for M8100A
Performing connections to the M8199B AWG
Connecting M8008A Clock Generator to M8199B AWG Module
Following are the possible ways to connect a M8008A clock source to one
or more M8199B AWG modules:
Case 1 Connecting M8008A clock module to one M8199B AWG module
In this case, make the connections as described below:
1 Connect the 1.85 mm, 45 cm M8199A-810 replacement channel clock
blue cable (M8199-61624) from Sample Clk Out of M8008A to Clk In of
M8199B.
2 Connect the 3.5 mm, 50 cm M8199A-811 sync cable (M8199-61620)
from Sync Out of M8008A to Sync In of M8199B.

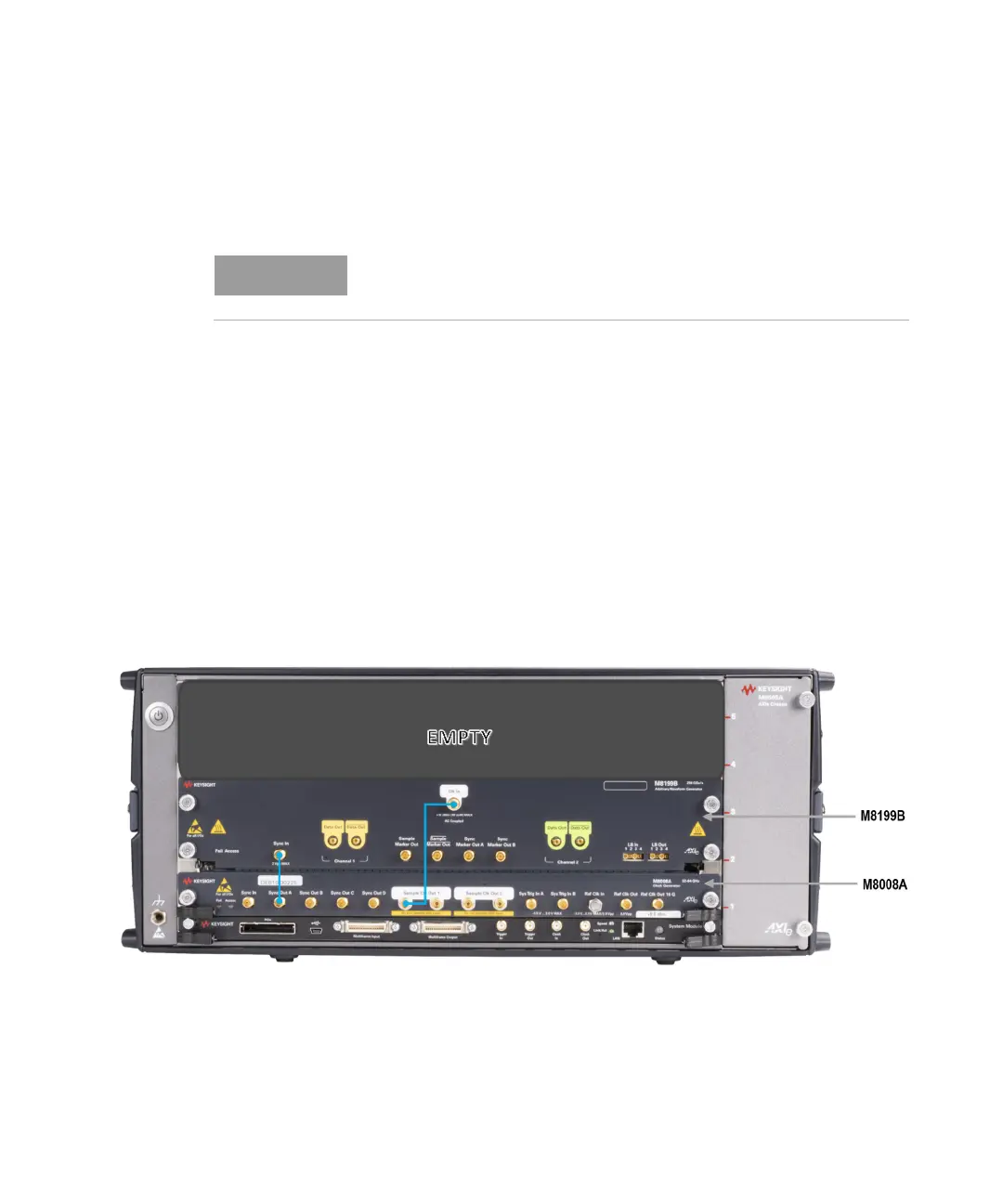

Figure 20 shows how to connect the M8008A clock generator module to
an M8199B AWG module:
Figure 20 Connecting M8008A clock generator to one M8199B AWG module
The unused output should be disabled on the M8070B software or
terminated with 50 Ohms on the module hardware.
