5 Math Waveforms
See Also • “Units for Math Waveforms" on page 101
Math Transforms
Math transforms perform a transform function (like differentiate, integrate, FFT, or
square root) on an analog input channel or on the result of an arithmetic
operation.
• “Differentiate" on page 105
• “Integrate" on page 106
• “FFT Magnitude, FFT Phase" on page 108
• “Square Root" on page 113
• “Ax + B" on page 114
• “Square" on page 115
• “Absolute Value" on page 115
• “Common Logarithm" on page 116

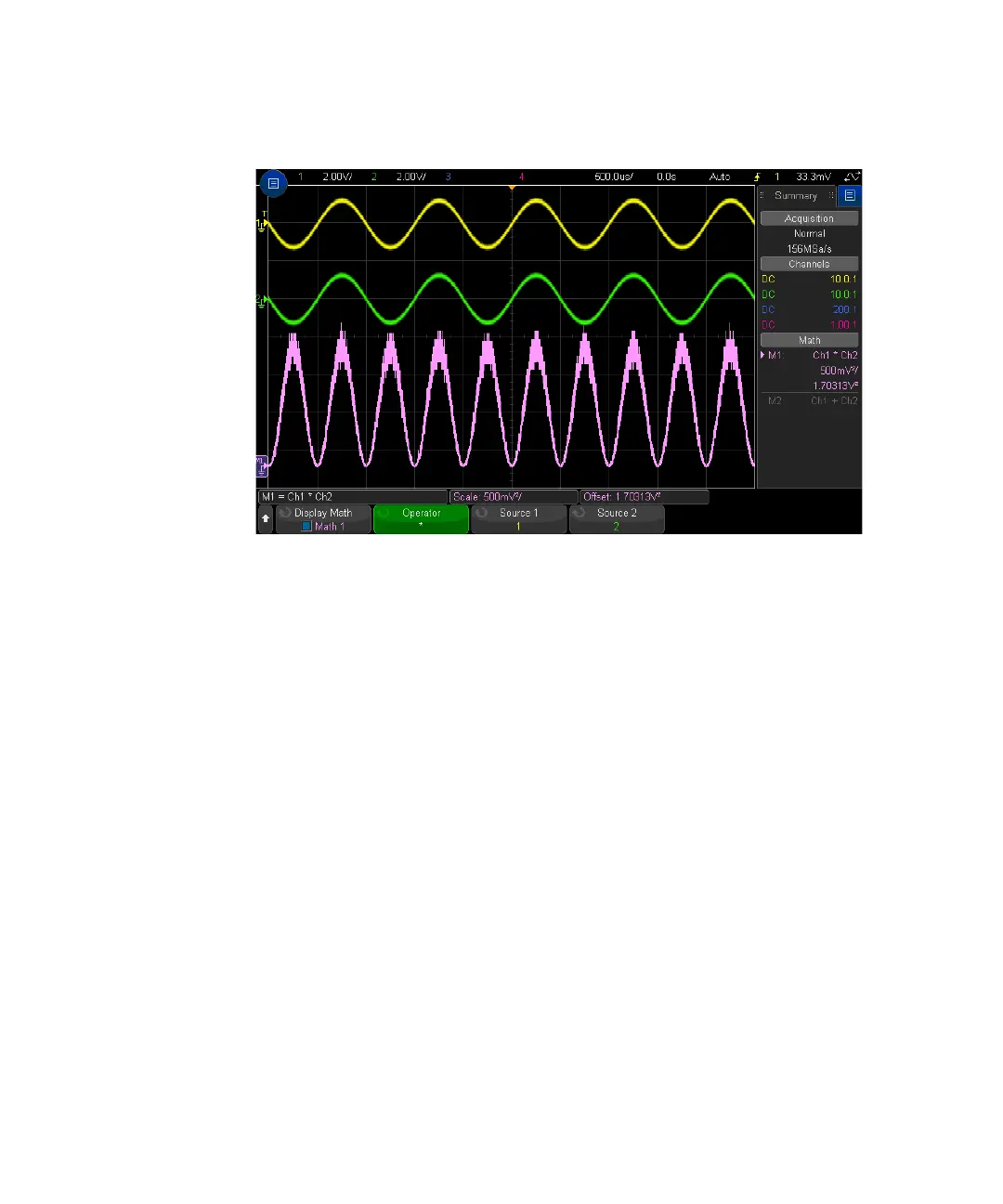

Figure 7 Example of Multiply Channel 1 by Channel 2
