Manchester/NRZ Triggering and Serial Decode 30
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 479
In Bit format, the frame is not divided into fields. All bits in the frame are displayed
as soon as the start of frame occurs. Each bit is displayed on the decoded bus,
time-aligned with the corresponding NRZ signal.

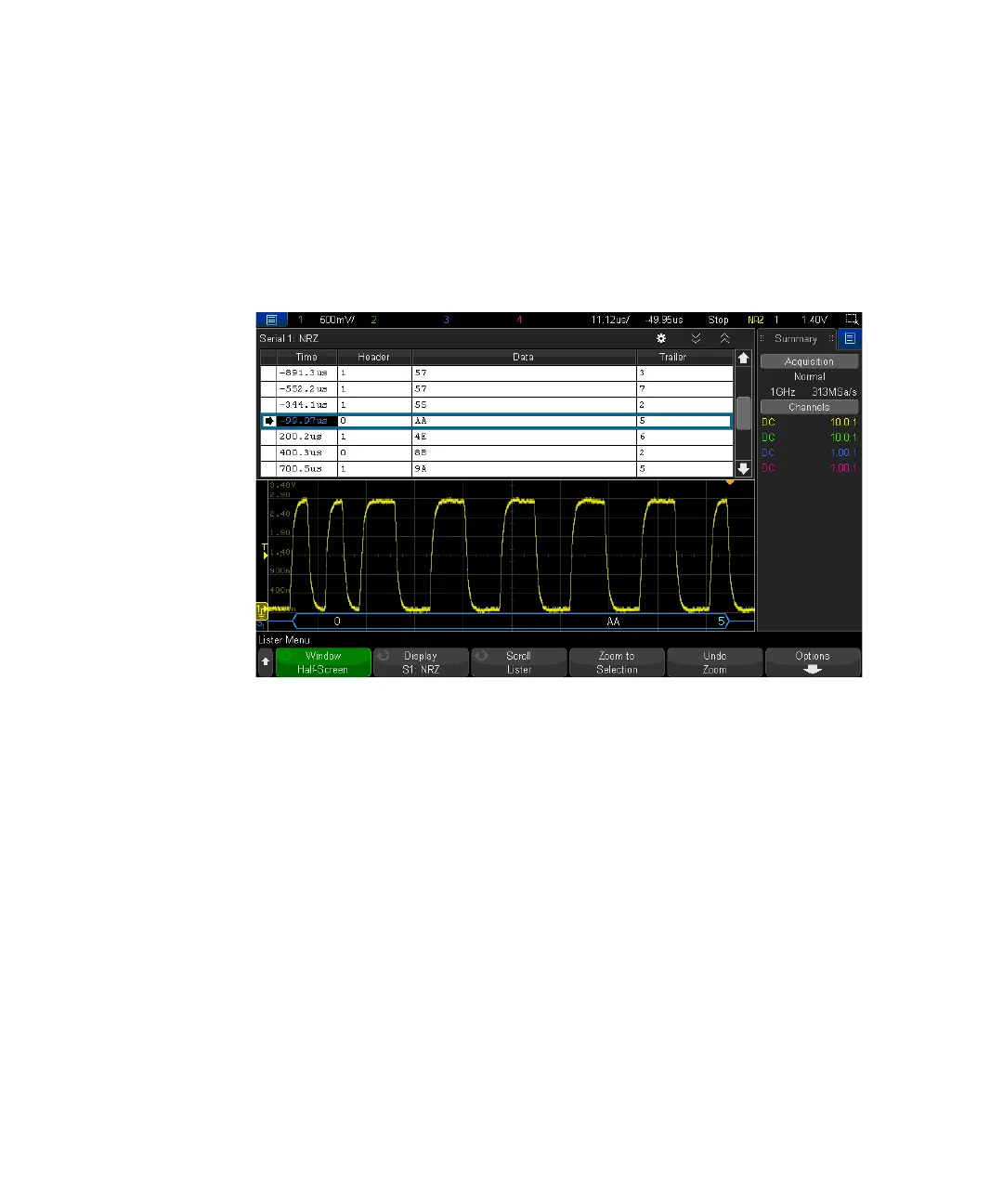

Interpreting NRZ Lister Data
In addition to the standard Time column, the NRZ Lister contains these columns:
•In Word format:
• Header (hex)
• Data (hex, unsigned decimal, or ASCII)
• Trailer (hex)
•In Bit format:
• Value (binary)
Aliased data is highlighted in pink. When this happens, decrease the horizontal
time/div setting and run again.
