FlexRay Triggering and Serial Decode 27
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 431

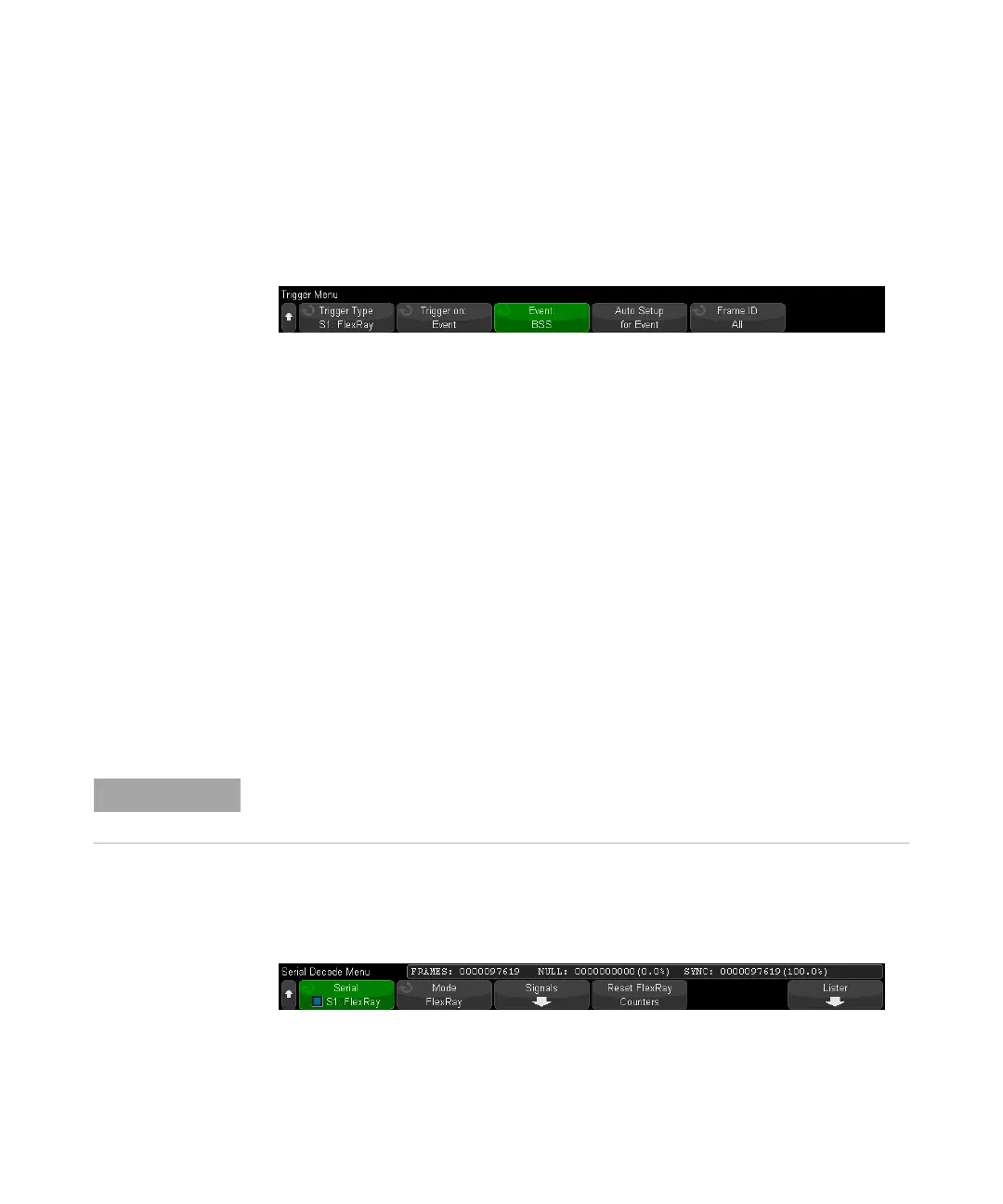

2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to
select the serial bus (Serial 1 or Serial 2) on which the FlexRay signals are being
decoded.
3 Press the Trigger softkey; then, turn the Entry knob to select Event.
4 Press the Event softkey; then, select the event type:
• Wake-up
• TSS — Transmission Start Sequence.
• BSS — ByteStart Sequence.
• FES/DTS — Frame End or Dynamic Trailing Sequence.
5 Press Auto Setup for Event.
This automatically configures oscilloscope settings (as shown on the display)
for the selected event trigger.
FlexRay Serial Decode
To set up the oscilloscope to capture FlexRay signals, see “Setup for FlexRay
Signals" on page 427.
To set up FlexRay serial decode:
1 Press [Serial] to display the Serial Decode Menu.
NOTE
For FlexRay triggering setup see “FlexRay Triggering" on page 428.
