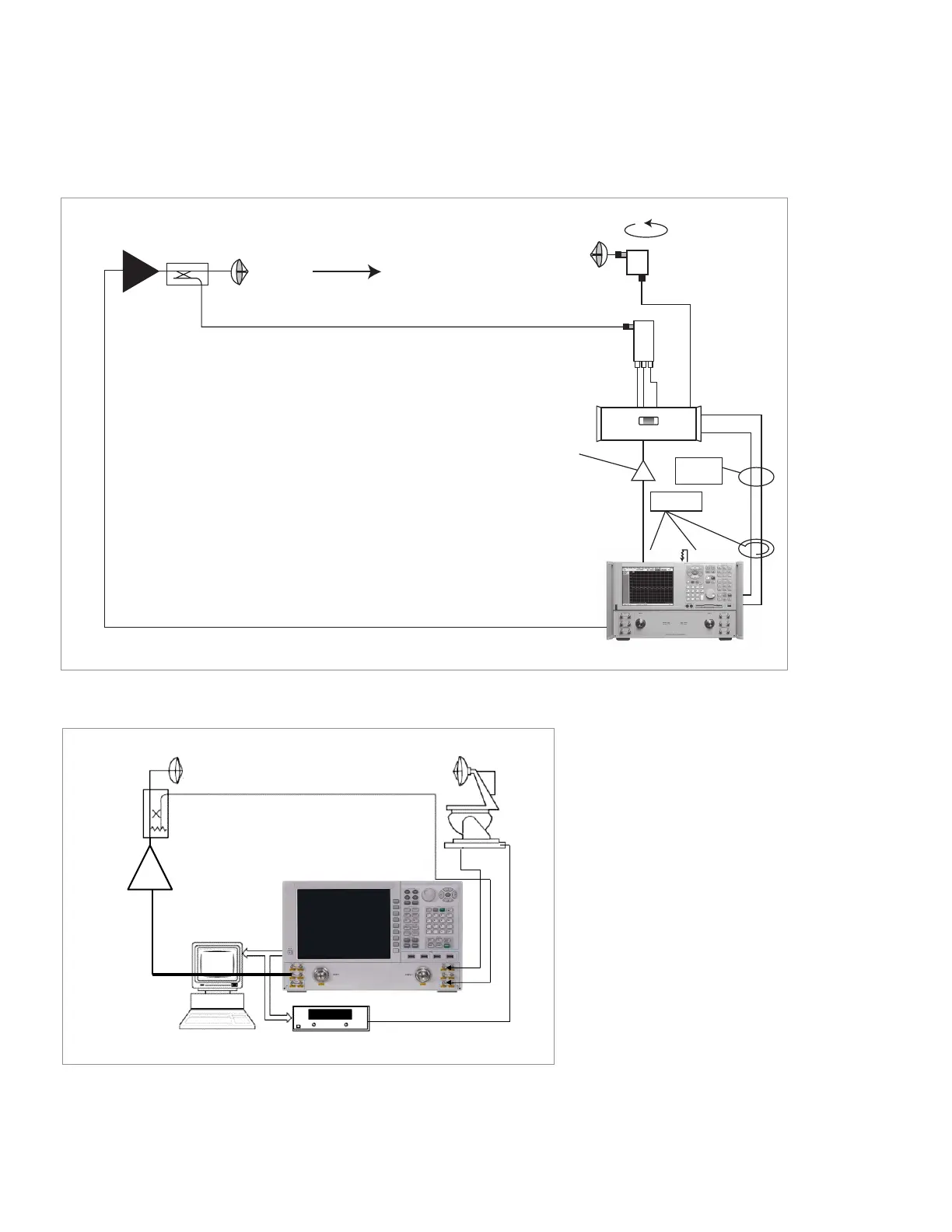

Figure 6. Far-eld antenna conguration utilizing internal sources from the Legacy (E836xC)
PNA Option H11.
Figure 7. Far-eld antenna conguration utilizing internal sources with PNA-L Option 216,
PNA Option 201, PNA-X standard.
If the range allows the use of ampliers instead of a PSG, you can take advantage of the
excellent frequency agility of the PNA/PNA-X which minimizes the frequency switching
time for far-eld measurements congurations. See Figure 6.
Transmit amplifier
Transmit
antenna
Antenna
under test
85320A
test mixer
85320B
ref mixer
LO/IF
LO amp
LO Input
LO Det
J1
J4 J3
J9 TEST IF
J10 REF IF
J2
J5
85309B
IF
Fixed
8.33 MHz
Option H11
2nd converter
inputs
E836xC, 014, UNL, 080, H11
LO out RF out
N5242A standard R B
Coupler reference signal
Personal computer
Positioner/controller
Source
antenna
Antenna
under test
Optional�
amplifier
HP-IB
Far-eld antenna measurements (continued)
09 | Keysight | Antenna Test – Selection Guide

Keysight PNA Series Specifications

General

Number of Ports	2, 4
Impedance	50 Ω
Output Power Range	-55 dBm to +13 dBm (varies by model)
Dimensions	Varies by model
Weight	Varies by model
Power Requirements	100-240 VAC, 50/60 Hz
Storage Temperature	-40°C to 70°C
