6-2 CYLINDER VALVE
Each cylinder is supplied with a pneumatic cylinder valve (discharge valve). The cylinder valve
is equipped with a burst disc and must also be equipped with a completer kit that will include a
pressure gauge with supervisory pressure switch, hose and connection fittings.
The completer kits allow the valves to be released either electrically, by means of a solenoid, or
pneumatically, using the manual release. The valve discharge outlet is connected to the discharge
manifold via a high pressure flexible hose and a check valve.
1/4" BSP PILOT
CONNECTION
BURST DISC
P/N 06-236376-001 FOR
2900 PSI (200 BAR) CYLINDER
(COLOR CODE GREY,
STAMPED 4350 PSI [300 BAR]
BURST PRESSURE)
HANDLE FOR
FILLING ONLY
M28 X 1.5
M25 X 1.5
FILLING PORT
(DISCHARGE
PORT OUTLET)
CONNECTION TO
ARGONITE CYLINDER
SIDE VIEW
FRONT VIEW
GAUGE PORT

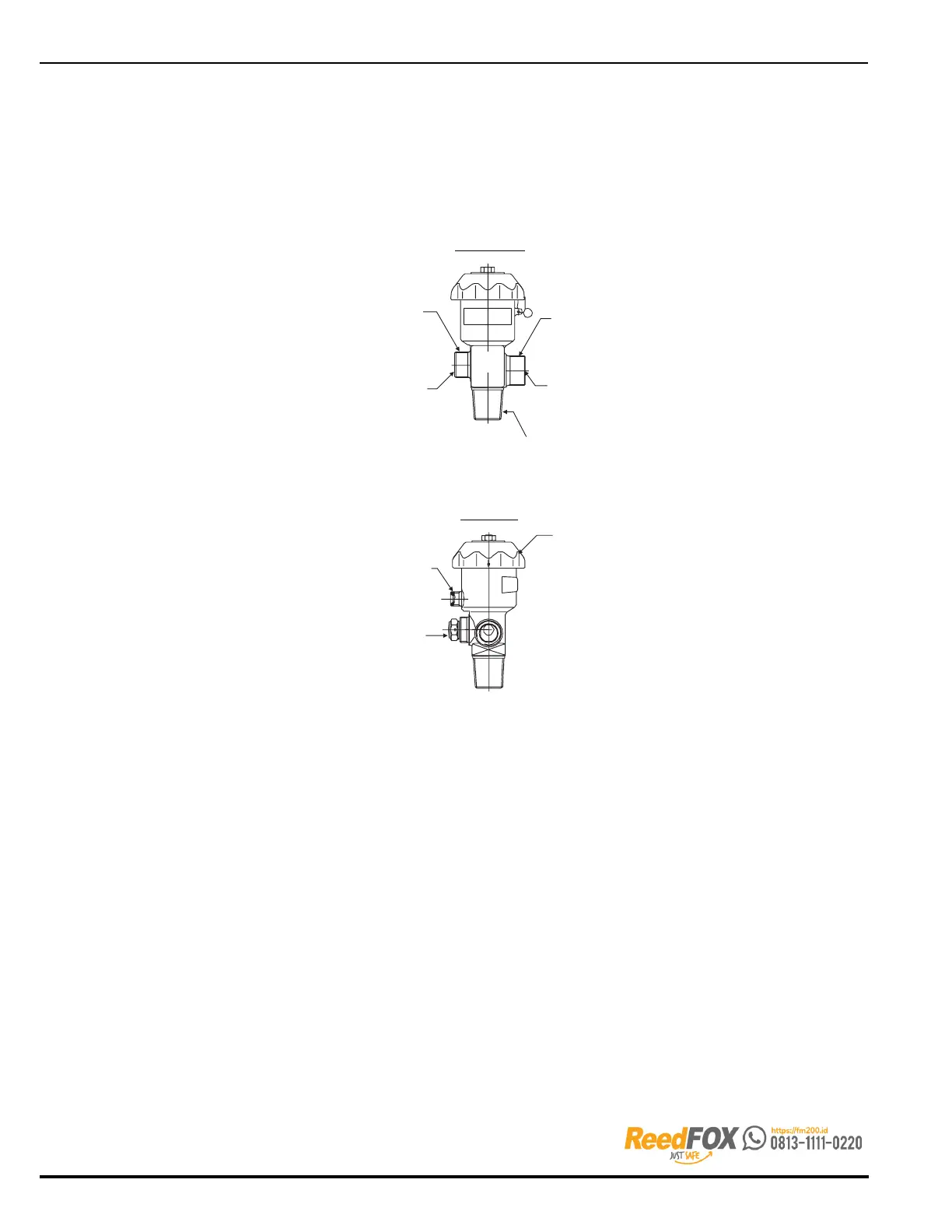

Figure 6-2. Argonite Cylinder Valve, P/N 06-220015-001
