Kidde Fire Systems Argonite User Manual

6-3
July 2004
Argonite
®
Engineered Fire Suppression System
38-KFSARG-000
6-3 CYLINDER RELEASE
The pressure for activation is taken from the primary/pilot cylinder through the electrical actuator
and via high pressure flexible hoses connected to the pneumatic actuator inlet on the pilot
cylinder as well as to the actuator inlets on the neighboring slave cylinders. The actuation ports
on the cylinders are interconnected by the use of high pressure flexible hoses. The arrangement
allows all the cylinders in the cylinder bank to be opened almost simultaneously.
PRESSURE GAUGE WITH
PRESSURE SWITCH AND
P/N 38-109891-001
1/2” FLEX CONDUIT
P/N 38-509804-001
PILOT HOSE #1
P/N 38-509818-001
TEE FITTING
P/N 38-509816-001
PILOT LINE
BLEEDER VALVE
P/N 38-509840-001
24 VDC SOLENOID
P/N 38-509834-001
WITH 1/2” FNPT
SOLENOID CONNECTOR
P/N 38-509866-001
1/2” DISCHARGE HOSE
P/N 38-509819-001
PILOT HOSE #2
P/N 38-509820-001
TEE FITTING
P/N 38-509816-001
MANUAL
ACTUATOR
P/N 38-509841-001

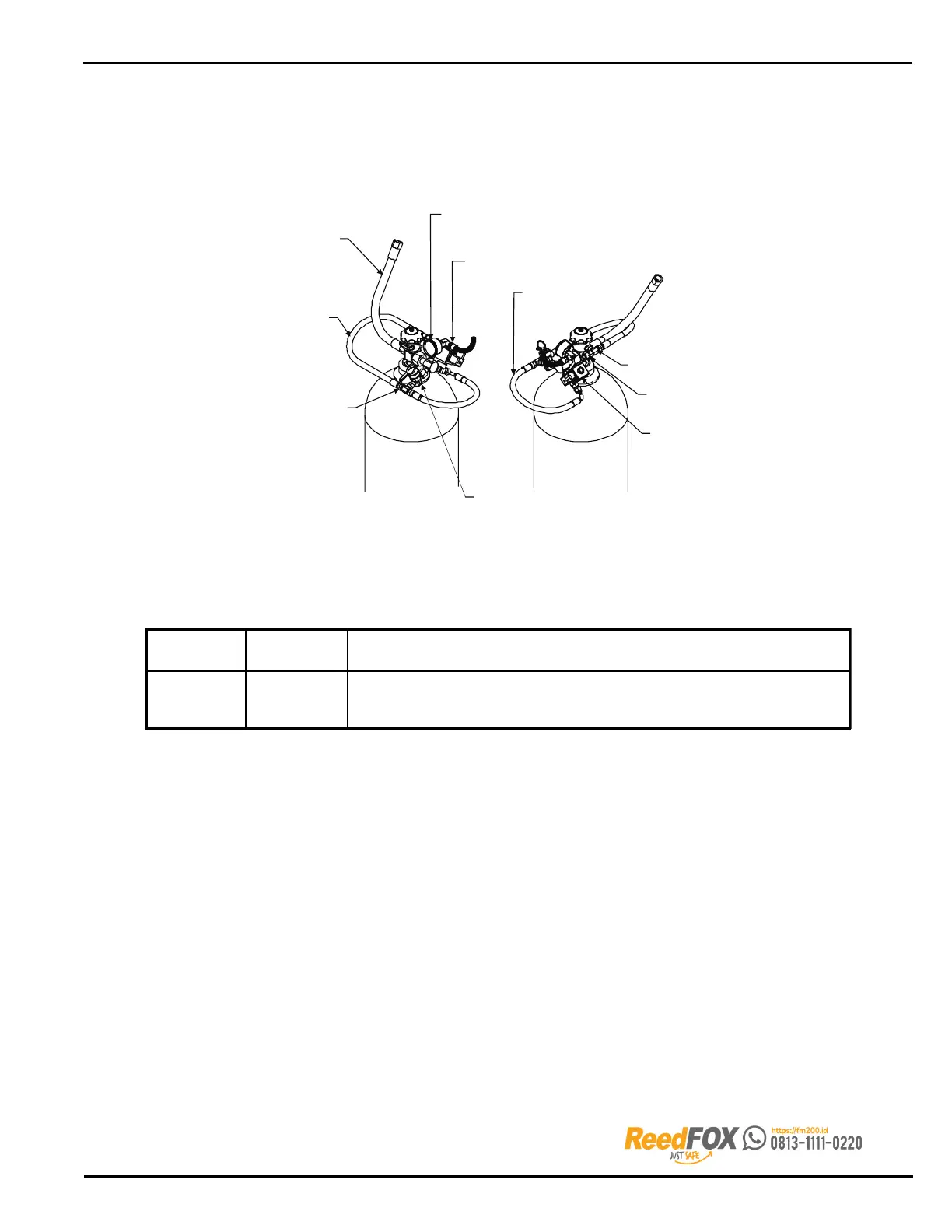

Figure 6-3. Primary Completer Kit
Table 6-2. Primary Completer Kit Information
Rating Part Number Description
NEMA 4 38-109802-001
Completer Kit includes:
Manual Release Pressure Gauge with Supervisory Pressure Switch, Solenoid,
Bleeder Valve, Hoses, Fittings and Emergency Operation Nameplate
