6-17
July 2004
Argonite
®
Engineered Fire Suppression System
38-KFSARG-000
6-9 CYLINDER RACKS
6-9.1 Cylinder Mounting Bracket (P/N 38-109875-001)
Due to the relatively small size and light weight of the 15.9L cylinder assembly, the
typical mounting bracket for this unit allows the cylinder to be wall mounted.

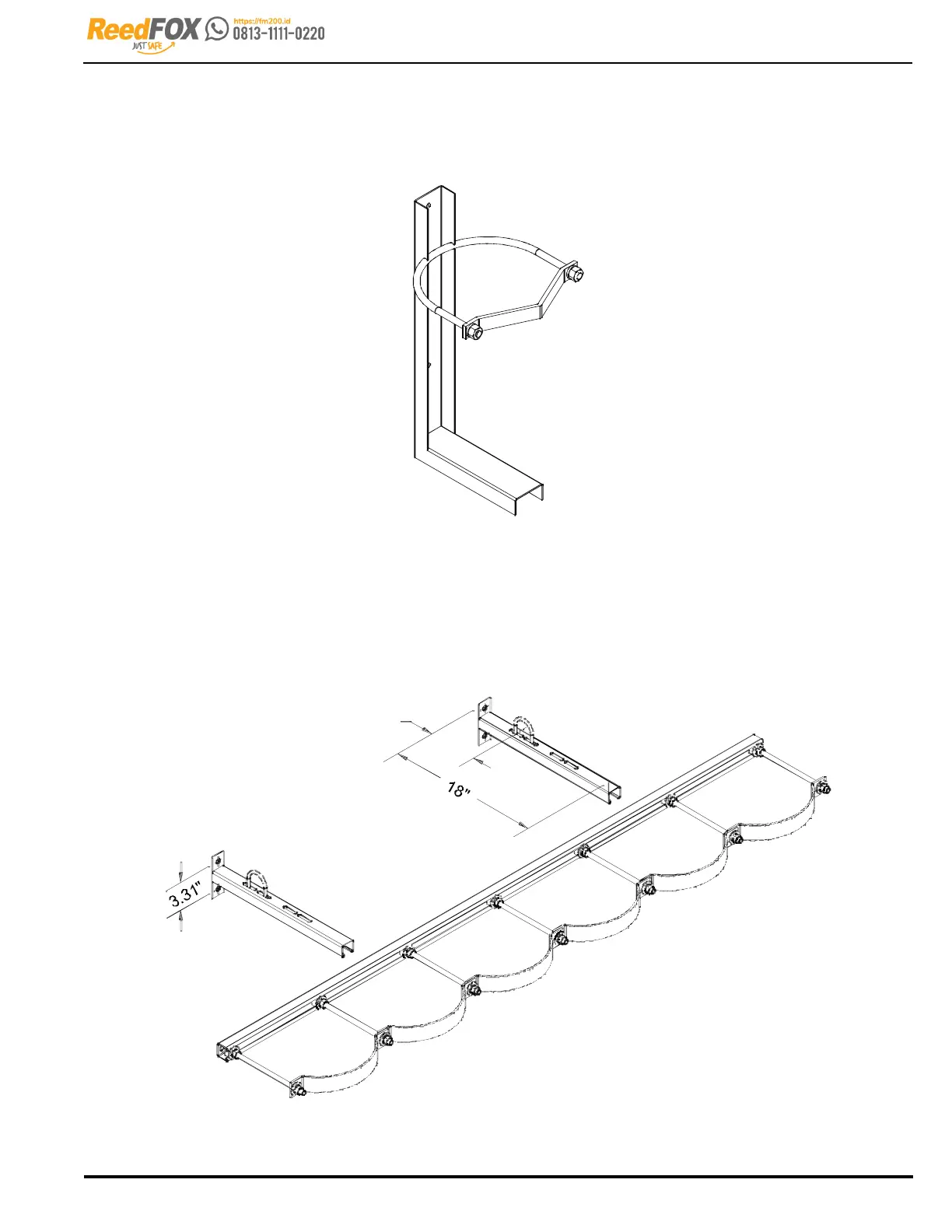

Figure 6-20. 15.9 L Cylinder Mounting Bracket
6-9.2 Wall Mount Bracket Kit for 66.7L and 80L Cylinders
with Manifold Mounting Brackets
Each kit consists of unistrut steel mounting rails, threaded rods and straps, and
hardware for 1 to 12 cylinders. Manifold mounting brackets are not included and
must be ordered separately.
5.37"
Figure 6-21. 66.7 and 80 L Cylinder Wall Mount Rack Kit and Wall Mount Brackets for Manifold
