Kidde Fire Systems Argonite User Manual

6-7
July 2004
Argonite
®
Engineered Fire Suppression System
38-KFSARG-000
REDUCING BUSHING*
PRESSURE RELIEF DEVICE,
P/N 38-509836-001
SELECTOR VALVE,
1/2” TO 2” NPT
RESTRICTOR
1/2” TO 2” NPT
OUTLET FROM
RESTRICTOR TO
HAZARD #2
OUTLET FROM
RESTRICTOR TO
HAZARD #1
*NOTE: ALL FITTINGS, NIPPLES
AND HOSES ARE PROVIDED
BY INSTALLER
HANDLE FOR
MANUAL OPERATION
CYLINDER MANIFOLD
OUTLET
FITTING TYPICAL
3000# MIN.
NIPPLE TYPICAL
SCH. 160 MIN.
REDUCING BUSHING*
PRESSURE REGULATOR
WITH VENTED ELBOW,
P/N 38-509803-001
ACTUATION HOSE
TYPICAL,
120 PSI (8 BAR)
NORMAL WORKING PRESSURE*
OPERATION NAMEPLATE,
P/N 38-509858-001
AFTER SYSTEM DISCHARGE
VALVE MUST BE
MANUALLY CLOSED

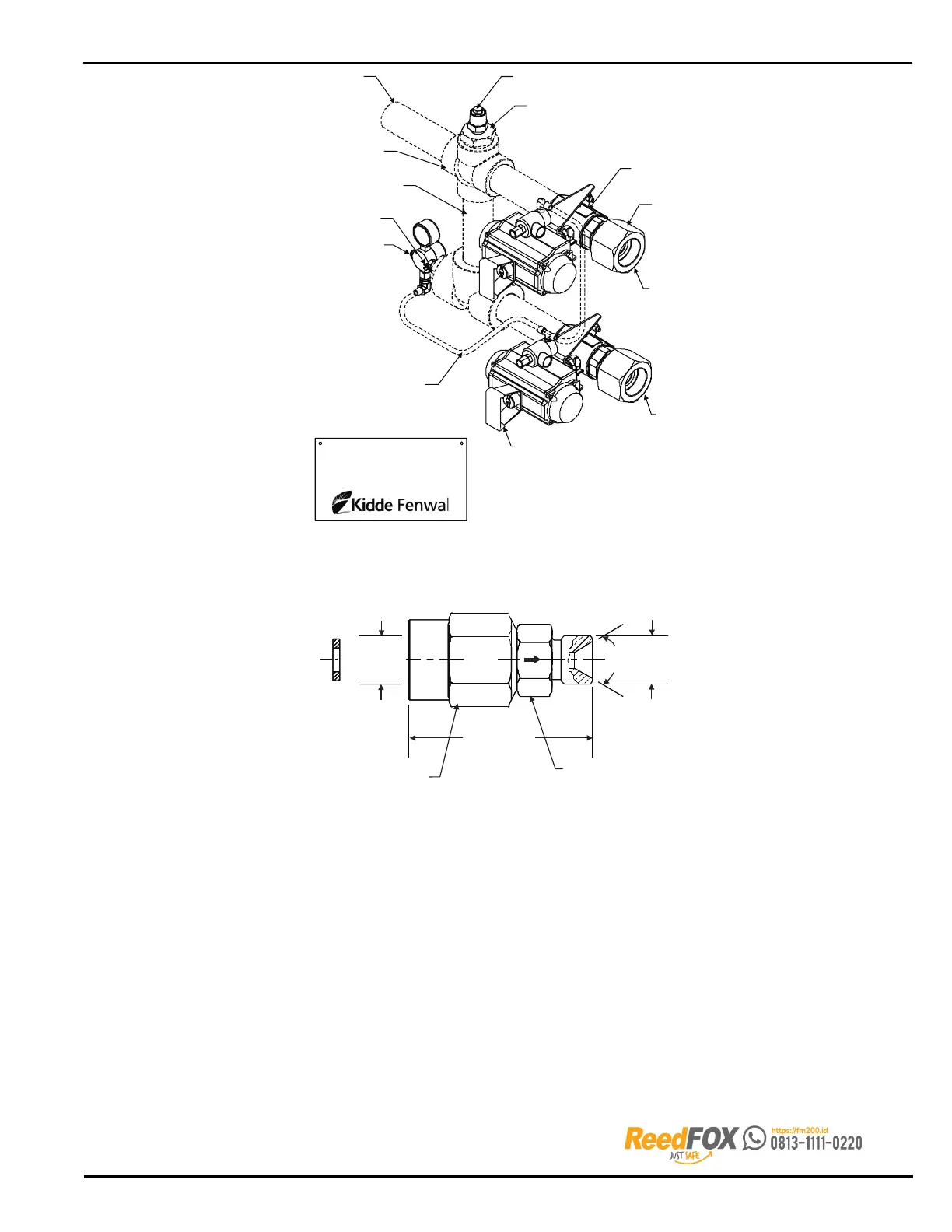

Figure 6-9. Typical Selector Valve System Arrangement
17 mm HEX
APPROX.
1.97 in. (50 mm)
1/4-19 BSP
60°
24 mm HEX
TORQUE 20 TO 25 Nm
1/4-19 BSP
BATCH NO.
XX-XX
01-6363-0000
W/P 370 bar
Figure 6-10. Non-Return (Check) Point for Pilot Lines, P/N 38-509832-001
The selector valve manifold or piping configuration is supplied by others (not Kidde Fire Systems)
and must include a 3/4 in. relief valve (P/N 38-509836-001) and a 1/4 in. NPT fitting for
connection of the pressure regulator. The relief valve and regulator are supplied as part of the
Pressure Regulator Kit (P/N 38-509803-001).
