6-8 July 2004
Argonite
®
Engineered Fire Suppression System
38-KFSARG-000
6-6.1 Pressure Regulator Kit, P/N 38-509803-001
The preassembled pressure regulator kit consists of the Pressure Regulator (preset at
120 PSIG) with gauge and relief valve, the gauge adapters, the gauge adapter kits, a
vented elbow and a 3/4 in. pressure relief valve. See Figure 6-11 and Table 6-4 for
more information.
1/4” NPT
VENTED ELBOW
ASSY. OUTLET
1/4” NPT
ASSEMBLY
INLET
4
2
3
2
1
5
3
RELIEF DEVICE,
4351 PSI (300 BAR)
MAX AT 70°F (21°C)
TORQUE 17 TO 19 LB.-FT.
1” NPT
36 MM HEX
INLET, 3/4” NPT

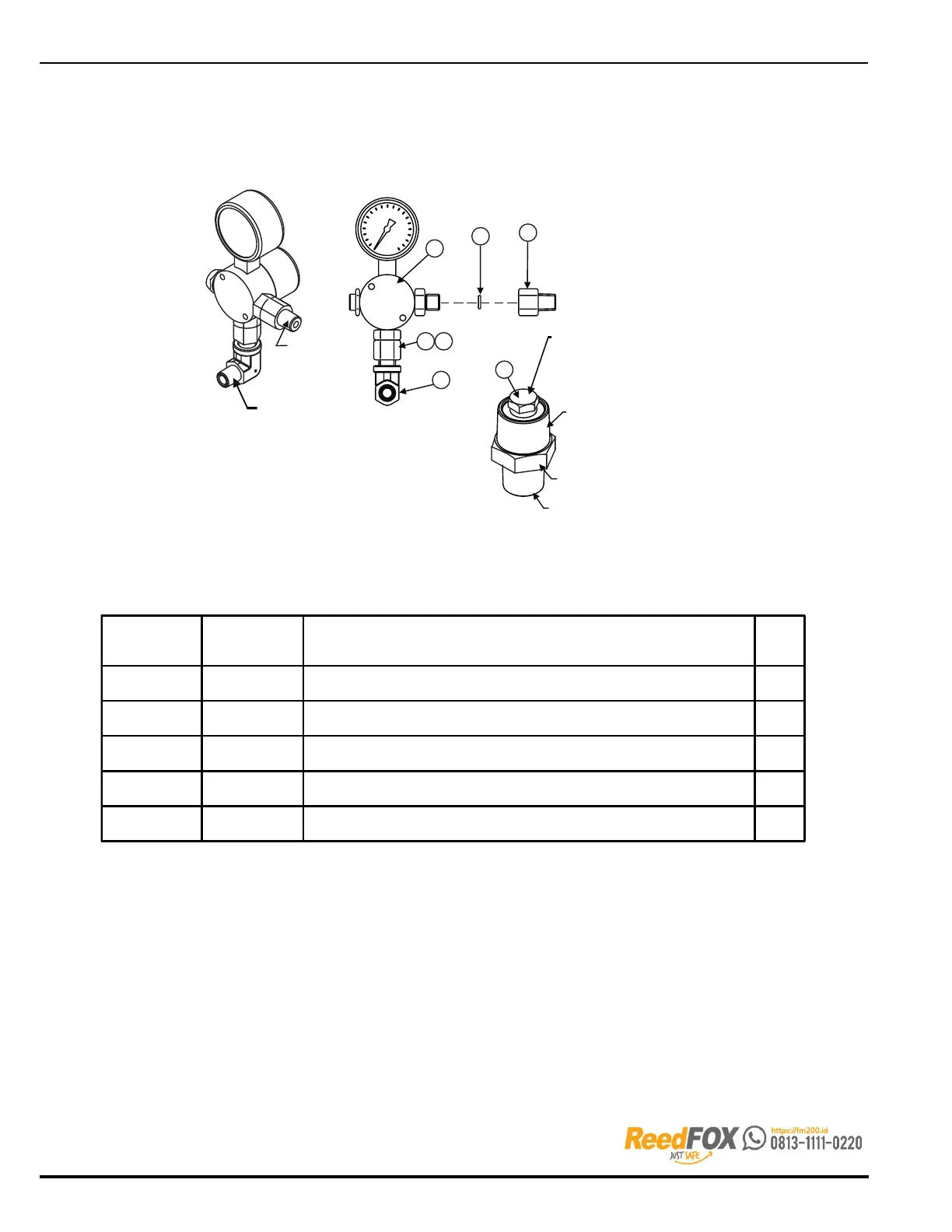

Figure 6-11. Selector Valve Pressure Regulator Kit, P/N 38-509803-001
Table 6-4. Pressure Regulator Kit
Item Number Part Number Description Qty.
1 38-509830-001 Pressure Regulator preset at 120 PSI (8.3 bar) with gauge and relief valve 1
2 38-509825-001 Gauge Adapters (converts threads from BSP to NPT) 2
3 38-809826-001 Gauge Adapter Kits 2
4 38-509867-001 Vented Elbow, 1/4 in. NPT 1
5 38-509836-001 3/4 in. Pressure Relief Valve, 4350 PSI (300 bar) 1
6-6.2 Selector Valve Assemblies
Each selector valve assembly consists of the selector valve (in various sizes from 1/2" up
to 2") with actuator and reset handle. It will also include the 24 Vdc 3-way actuation
solenoid (weatherproof), and the nipple connector to assemble the unit.
The selector valves will operate pneumatically by actuating the solenoid, but because of
the design of the unit, the valves must be closed manually after the discharge. An operation
nameplate is also provided to be mounted near the associated selector valve assemblies.
All selector valves have a working pressure of 2900 PSI (200 bar).
