6-9
July 2004
Argonite
®
Engineered Fire Suppression System
38-KFSARG-000
MANUAL
ACTUATION
HANDLE
BALL VALVE
1/2” TO 2” FNPT
DOUBLE ACTING
PNEUMATIC ACTUATOR
VENT
SOLENOID VALVE
24 Vdc

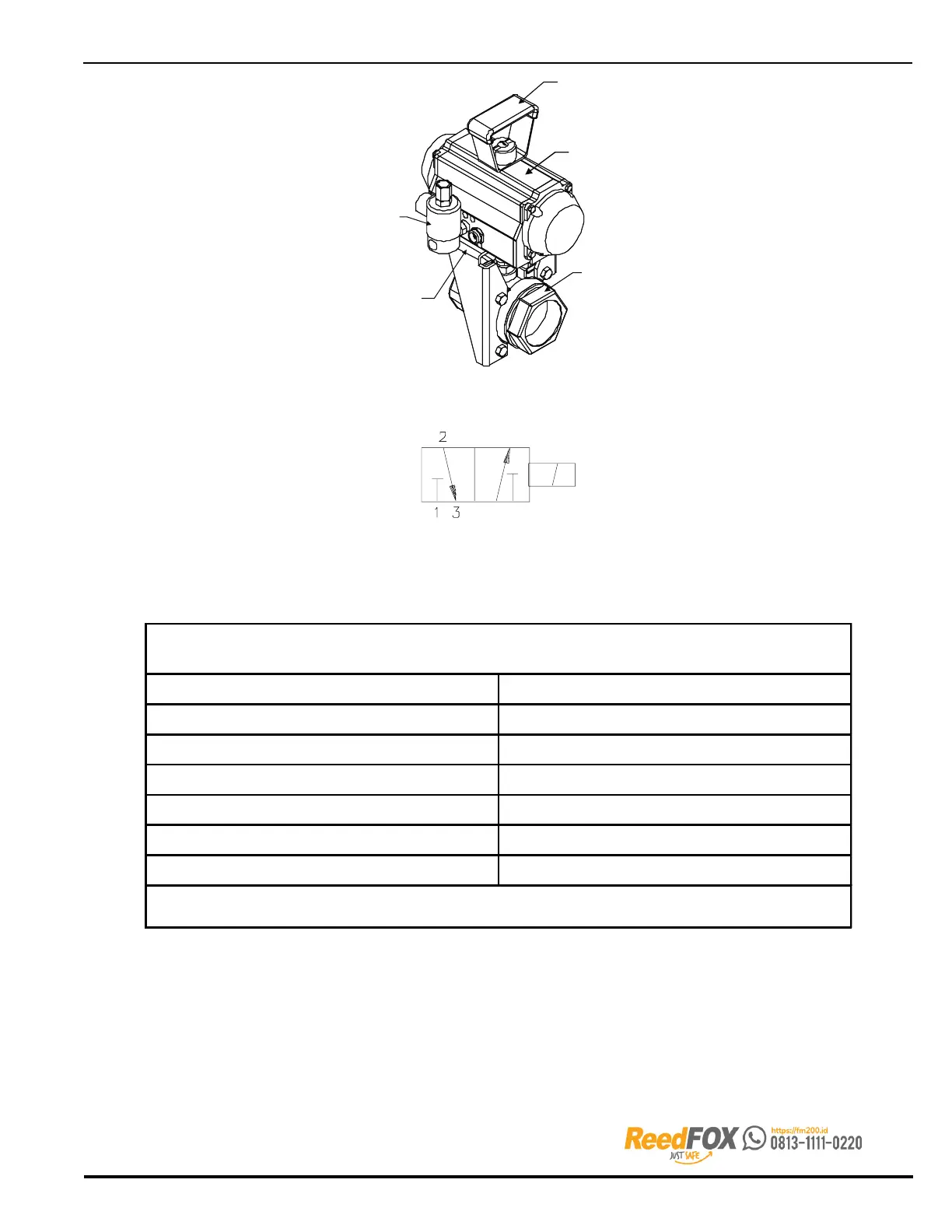

Figure 6-12. Selector Valve (Typical)
Figure 6-13. Selector Valve Solenoid Wiring Schematic
Table 6-5. Selector Valve Assemblies
With 24 Vdc 3-Way Solenoid (Weather-Proof)*
Part Number Description
38-609800-001 1/2 in. NPT (15 mm)
38-609800-002 3/4 in. NPT (20 mm)
38-609800-003 1 in. NPT (25 mm)
38-609800-004 1¼ in. NPT (32 mm)
38-609800-005 1½ in. NPT (40 mm)
38-609800-006 2 in. NPT (50 mm)
Note:
* Assembly also includes Actuator, Reset Handle, Connector and Operation Nameplate.
