Argonite

Engineered Fire Suppression System

38-KFSARG-000

9-7.2 Filling Argonite, Nitrogen First

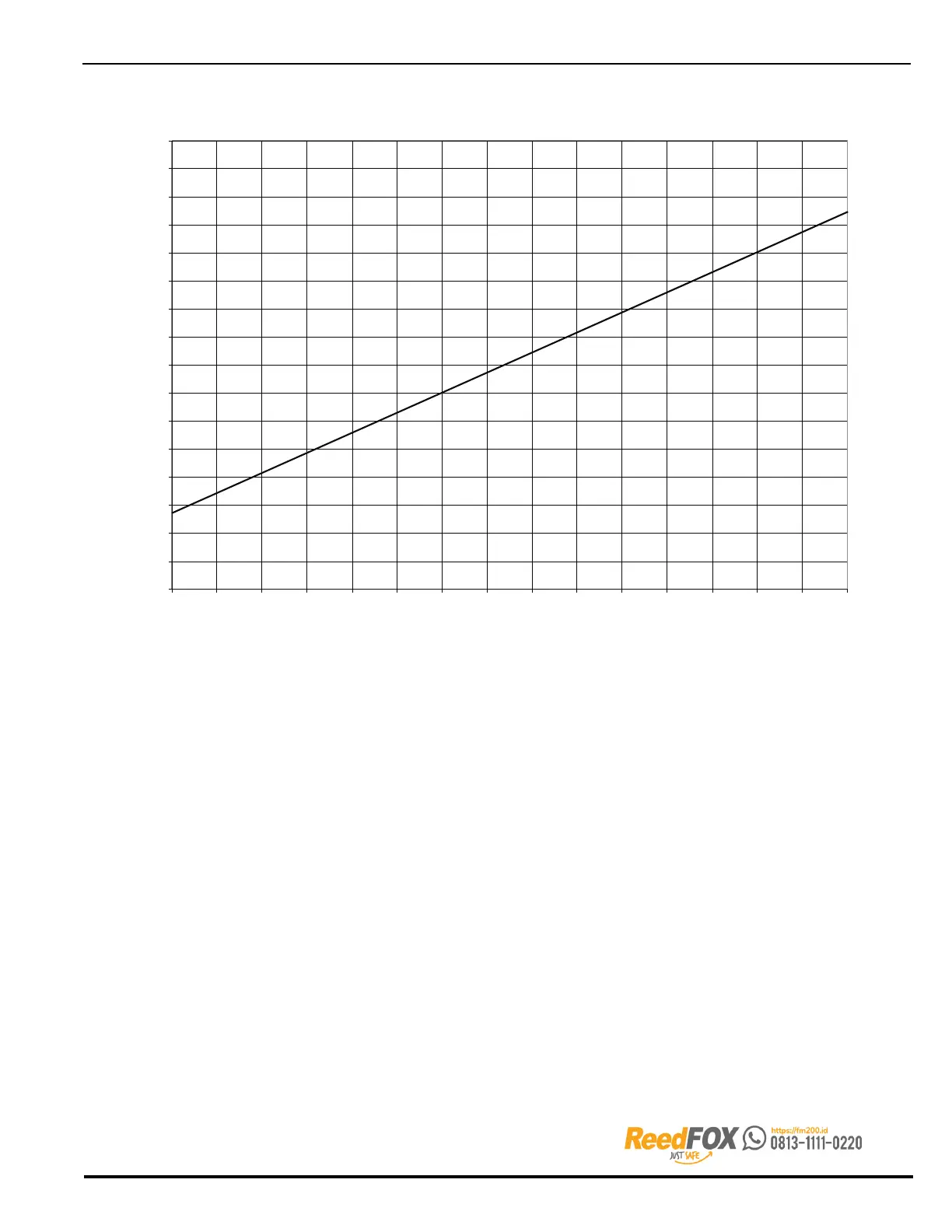

Based on ideal gas equation factors for Nitrogen.

1000

1050

1100

1150

1200

1250

1300

1350

1400

1450

1500

1550

1600

1650

1700

1750

1800

-20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130

Figure 9-4. Filling Argonite, Nitrogen First
