Kidde VS4 User Manual

Appendix C: Applications
224 P/N 3102351-EN • REV 005 • ISS 28DEC18
Message Line 1: SMOKE_<N>, where <N> can be the device address or other number
Base Type: Sounder
Follow: Head
3. Configure the RM1 or CT1 module as follows:
Device type: Monitor
Message Line 1: 24VDC_RISER
Programming sounder bases for a T3T4 Fire Alarm/CO emergency
signaling application per NFPA 720, UL 2017

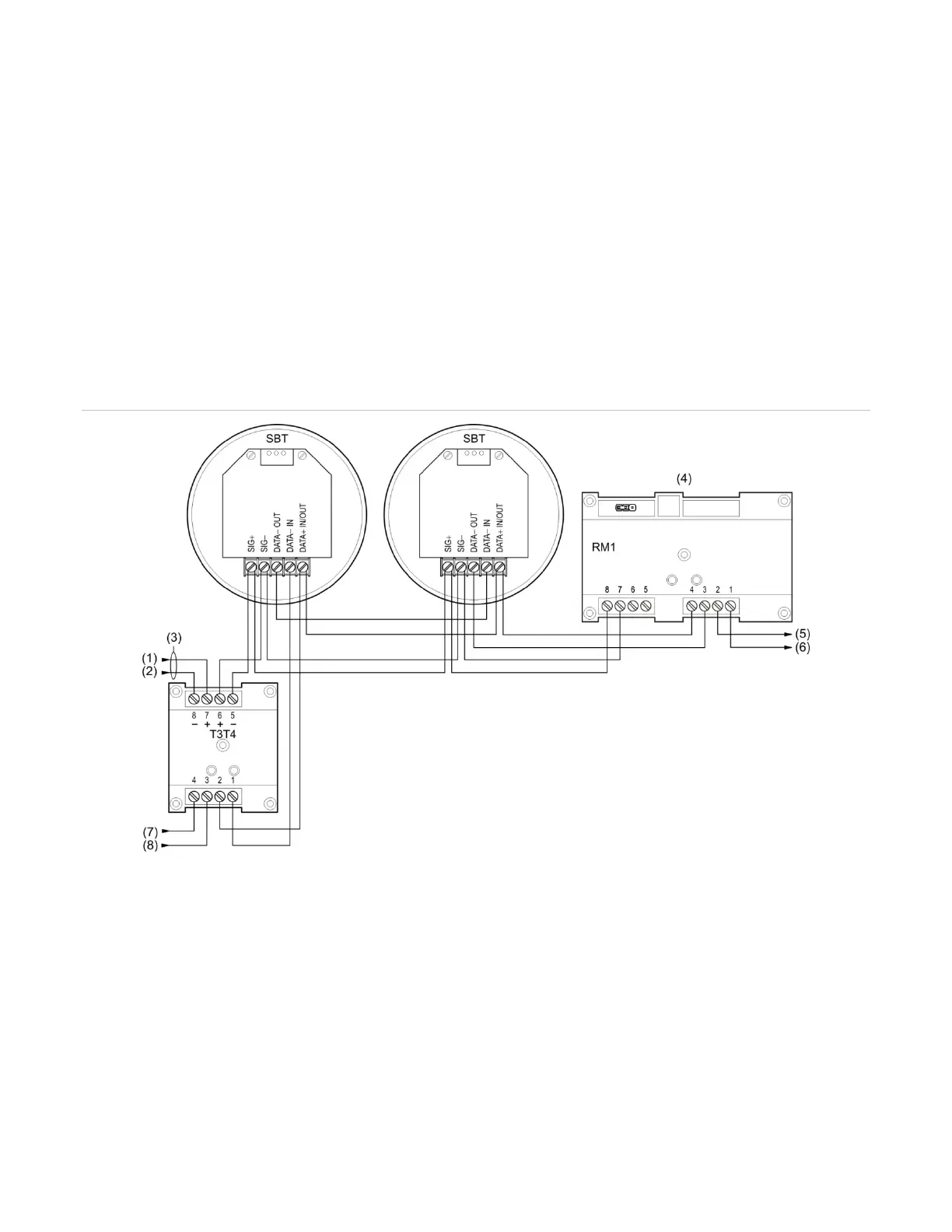

Figure 58: Wiring the sounder base for a T3T4 Fire/CO alarm
(1) AUX riser +
(2)
AUX riser –
(3)
Use a power-
limited and regulated 24
VDC power supply that is UL/ULC Listed
for fire protective signaling system.
(4) RM1 module or equivalent
(5) SLC OUT +
(6) SLC OUT −
(7) SLC IN +
(8) SLC IN −
