TOS8030 Precautions for Safe Testing 21
3. Connect the black test lead to the DUT.
Note that improper test-lead connections may cause the entire DUT to be
charged to dangerously high voltages.
4.
Connect the red test lead to the DUT.

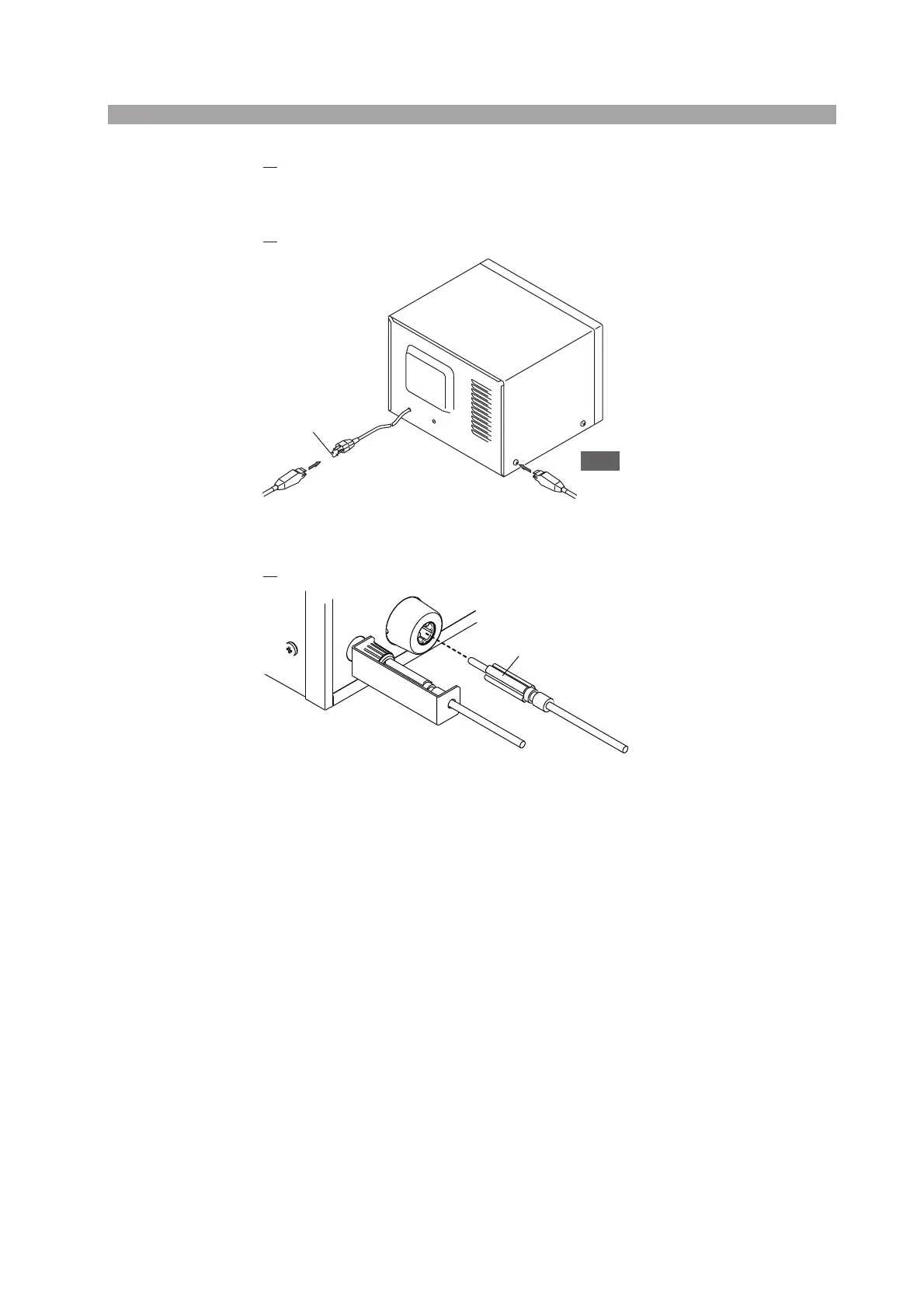

Fig. 3-3 Example of Connection to the DUT
5. Insert the red test lead into the HIGH VOLTAGE terminal.
Fig. 3-4 Connecting the HIGH VOLTAGE-side test lead
■ To disconnect the test leads from the DUT
Disconnect the red test lead from the HIGH VOLTAGE terminal. You do not need to
disconnect the black test lead from the LOW terminal.
Short-circuit the L and N
terminals of the power
cord and connect the red
alligator clip to one
terminal.
Example of connection
between the AC INPUT
connector and chassis
First,
connect the black alligator clip to the
DUTʼs case (conductive part).
HIGH VOLTAGE-side test lead (red)
To Next Page
