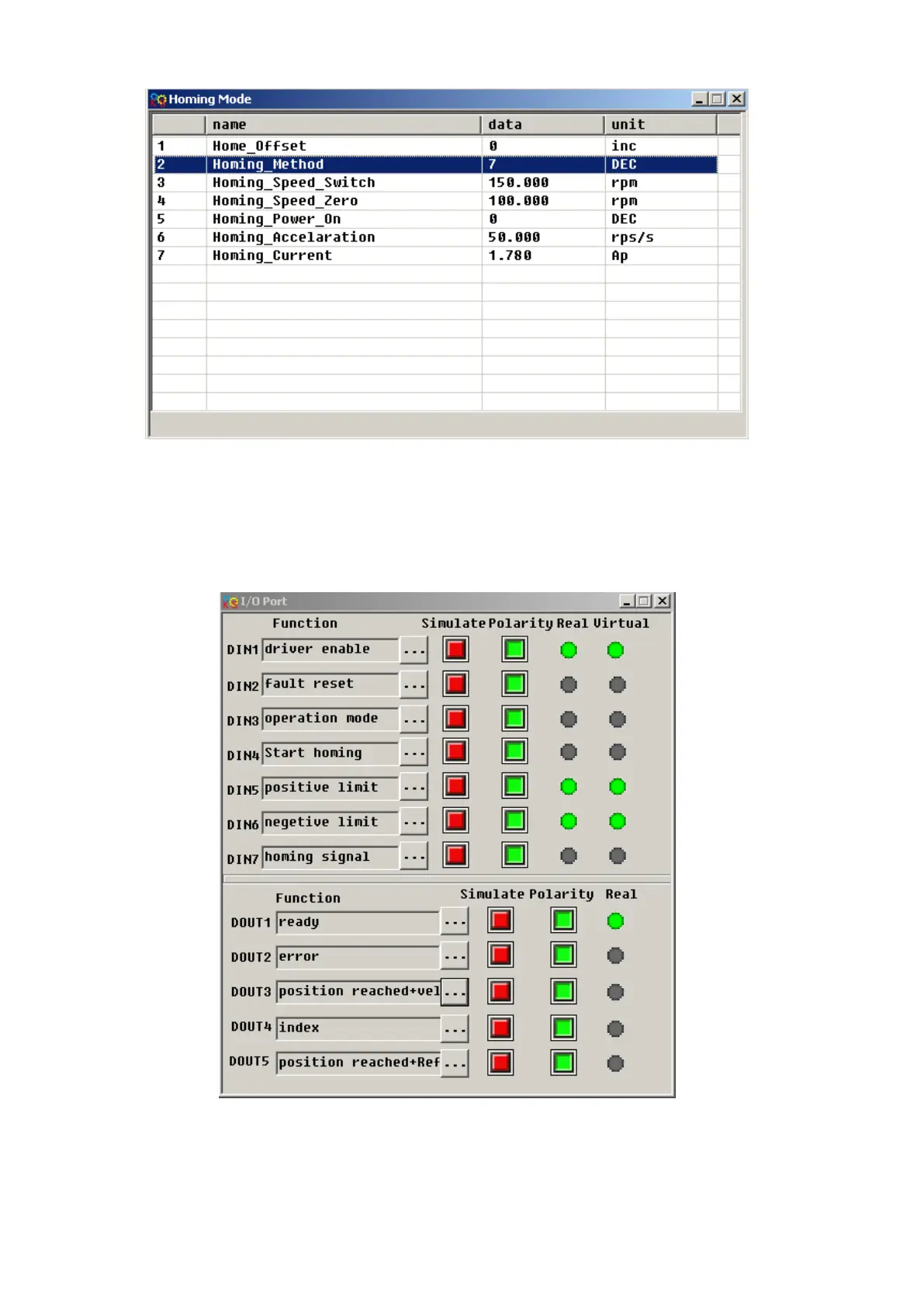

In common circumstance, only need to set up the model of origin and the rest of the parameters are default.
In some case, “Electrify and then find the origin” is set to 1, at the same time the definition-- “Start finding the
origin” is eliminated.
3. Start homing.
(1). Enable motor, which means the digital input point 1 is set to high-level. The computer motoring picture is
shown below:
(2). Send “Start finding the origin” signal to motor, which means the digital input point 4 is set to high-level.
The computer motoring picture is shown below:
