（2） input project name；
（3） Select path for saving project；
（4） Click【OK】
1.2 choose device, connect and setup parameters

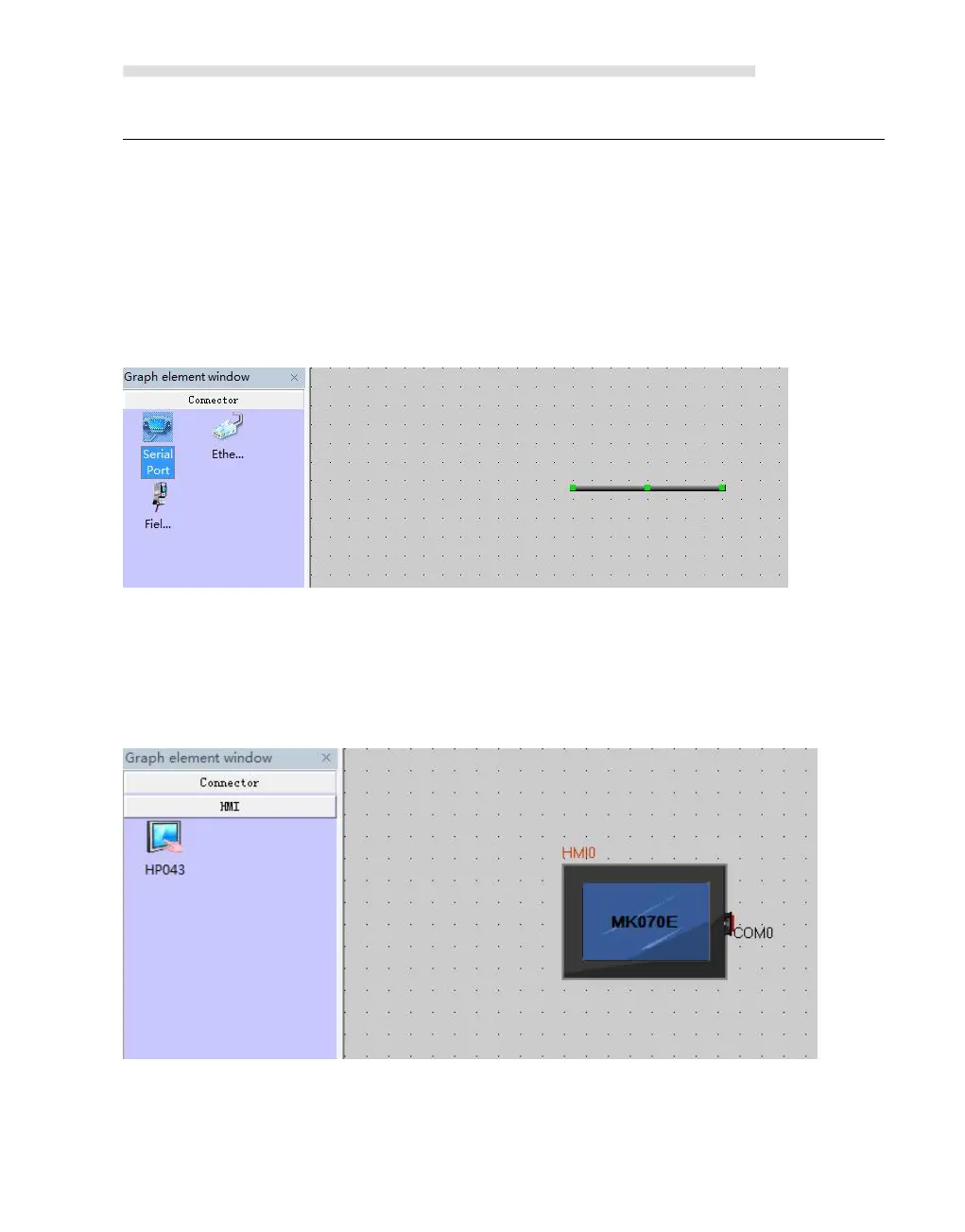

① choose device-choose communication
Drag “Serial port”in 【Graph element window】--【Connector】 to construct window.
②Choose device—choose HMI type
Drag “MK070E”in 【Graph element window】--【HMI】to construct window.
System will show ”Display Mode”, we can choose “Horizontal” or “Vertical”
Click 【OK】
③choose device—choose PLC type（communication protocol）
Drag “Kinco PLC series” in 【Graph element window】to construct window
