Kinco MK043E-20DT - Configuration in Software

Kinco-MK
User Manual
54
The AQ output value specified in the user program would firstly sent to the corresponding AO
module through the expansion bus, and then calculated, transformed, and output on the
specified channel through the DAC.
The signal output range are limited.If the user assign an output value over the limitation,The
actual output value would keep maintain on the upper or lower limit value.
The following table are the range of signal.Among them,I stand for Actual Current,V stand for
Actual Voltage.
Signal
Output range
User assigned value in program
4-20mA
3.92-20.4mA
I×1000
0-20mA
0-20.4mA
1-5V
0.96-5.1V
V×1000
0-10V
0-10.2V

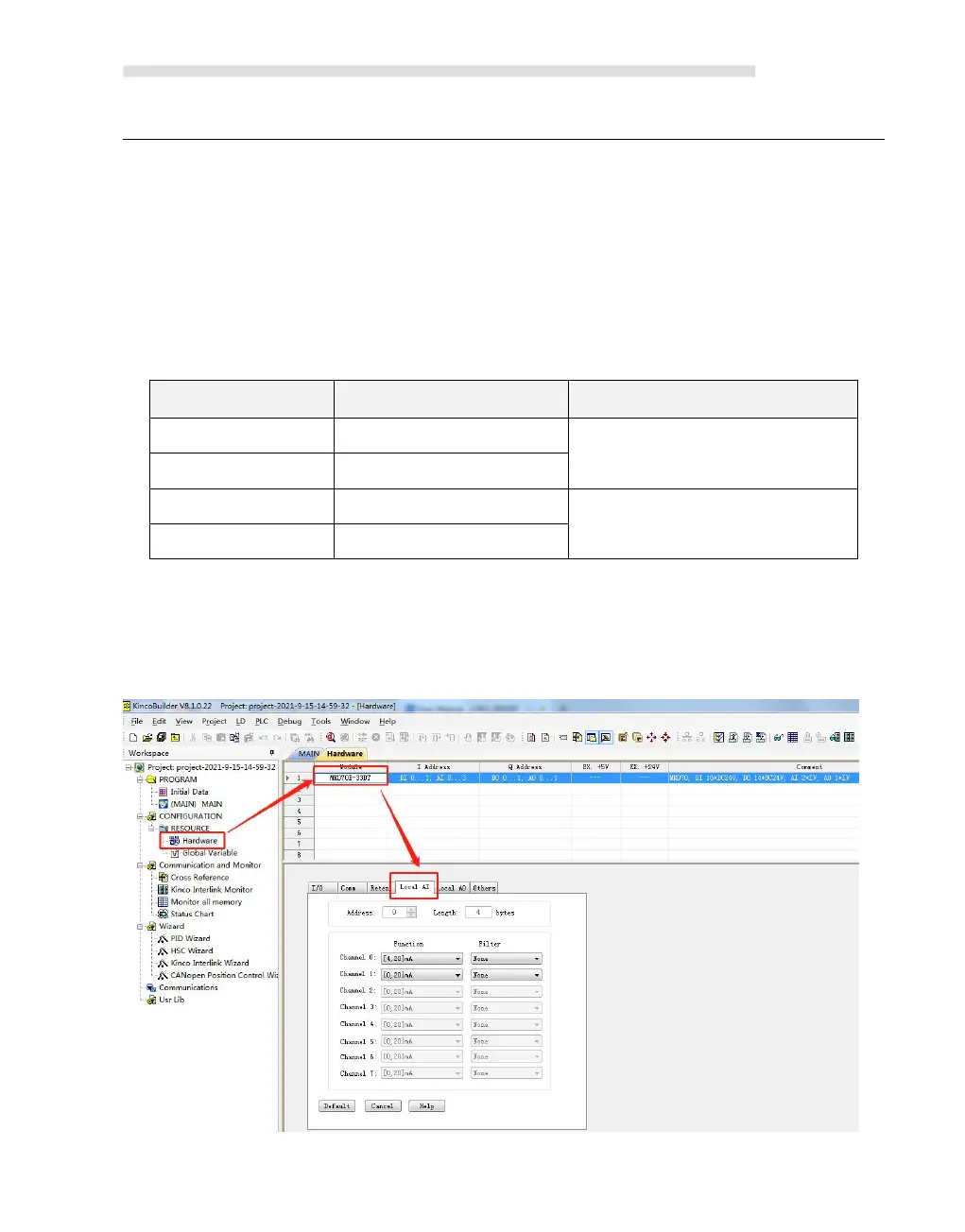

3.3.3 Configuration in software
Hardware configuration in the software can be used to configure analog channel parameters.
