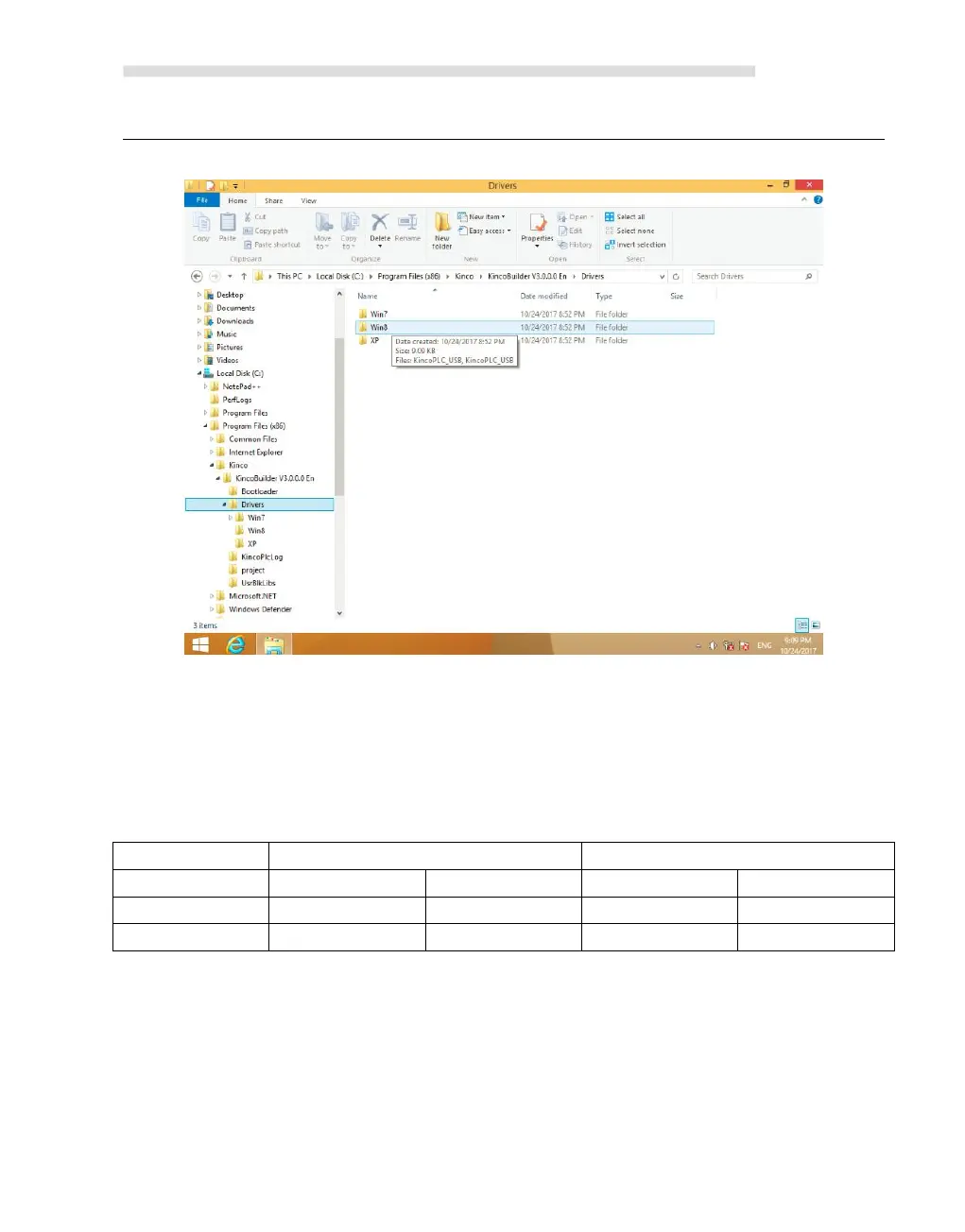

3.2.3 High speed counter
MK070E-33DT provides 4 high speed counters (HSC0~HSC3).High speed counter supports a
variety of modes, it can be single-phase, dual-phase (Up/Down), AB phase (1-fold and 4-fold
frequency).The maximum counting frequency of the four pulse counters is 50KHz.
Single phase
AB phase
Model
HSC0 and HSC1
HSC2 and HSC3
HSC0 and HSC1
HSC2 and HSC3
MK070E
50K
50K
50K
50K
MK043E
50K
50K
50K
50K
All high speed counter can support maximum 32 PV and support 32 “CV=PV” interrupts. PV
can be set as relative value or absolute value. If it is relative value, then the "CV = PV"
interrupt allows the selection to occur cyclically.
