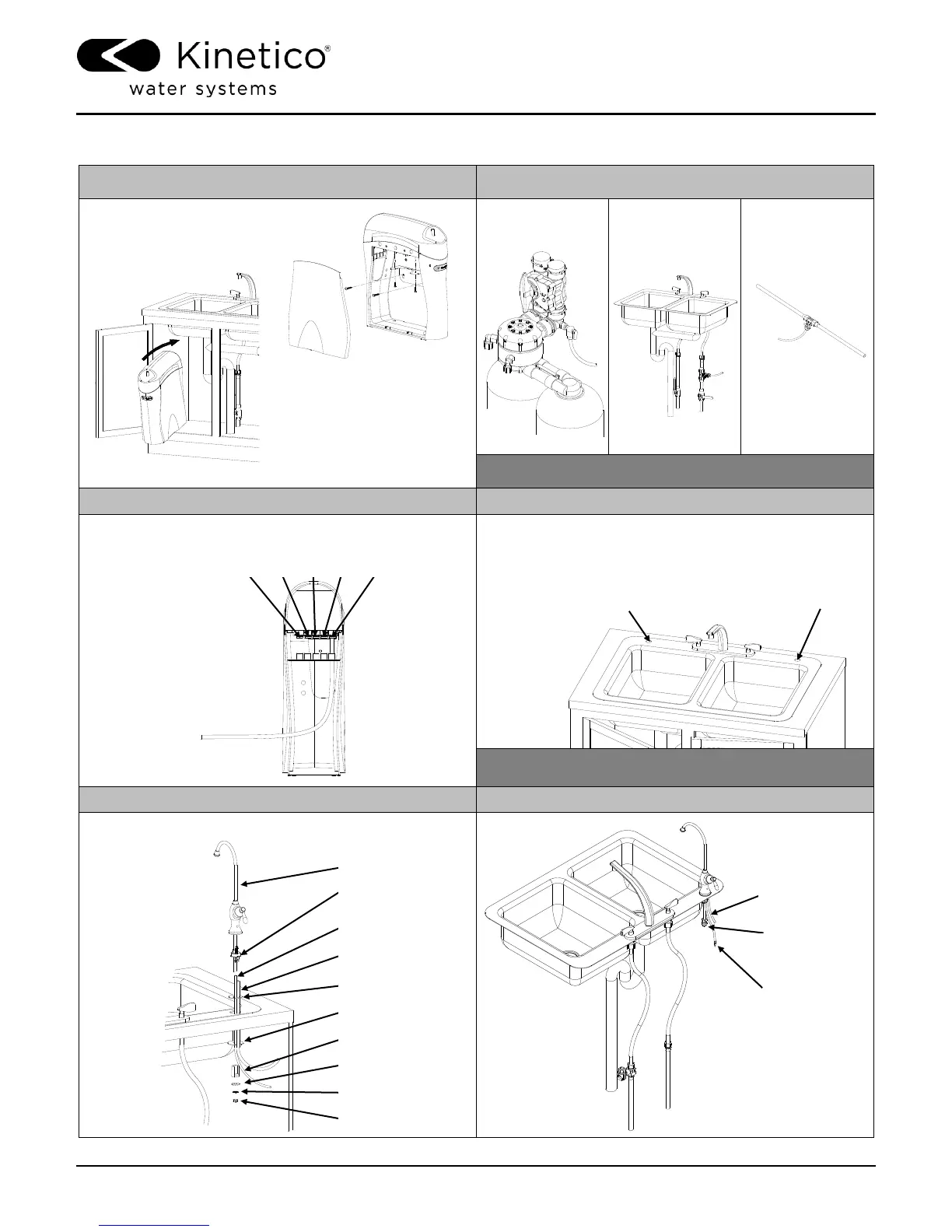

Section 1: K5 Installation Instructions
1. Unit Placement
2. Install ⅜” Water Supply (choose A, B or C)
A. Softener to
blue collet
B. Under sink to
blue collet
C. Cold water
pipe run to
blue collet
Note: No self-piercing valves.
3. Water Supply Connection
4. Faucet Mounting Preparation
drill faucet mounting hole:
⅞” to 1” for air gap faucet (do not exceed 1”)
½” for non-air gap faucet
consult with customer, choose one location
Note: Drilling hole too large will result in a gap.
5. Air Gap Faucet Installation
6. Air Gap Faucet Connections
For non-air gap installation, skip to Step 7.
to drain pipe
⅜” quick connect
from white collet
¼” barb fitting to ⅜”
barb fitting from red
collet
to blue collet
White Green Yellow Red Blue
faucet
air gap kit -
(part #12961A)
¼” tubing
⅜” tubing
rubber gasket
mounting washer
stand off
washer
lock washer
nut
under sink test fit
wall mount
bracket –
part #12715

Kinetico K5 Specifications

General

Filter Type	Reverse Osmosis
Daily Production Rate	50 gallons per day
Certifications	NSF/ANSI 58
Filter Life	6-12 months
Waste Water Ratio	1:1
