Kinetico K5 Manual

K5 Drinking Water Station
Revised: 09/2016 Drinking Water Systems Section 7
Page 3

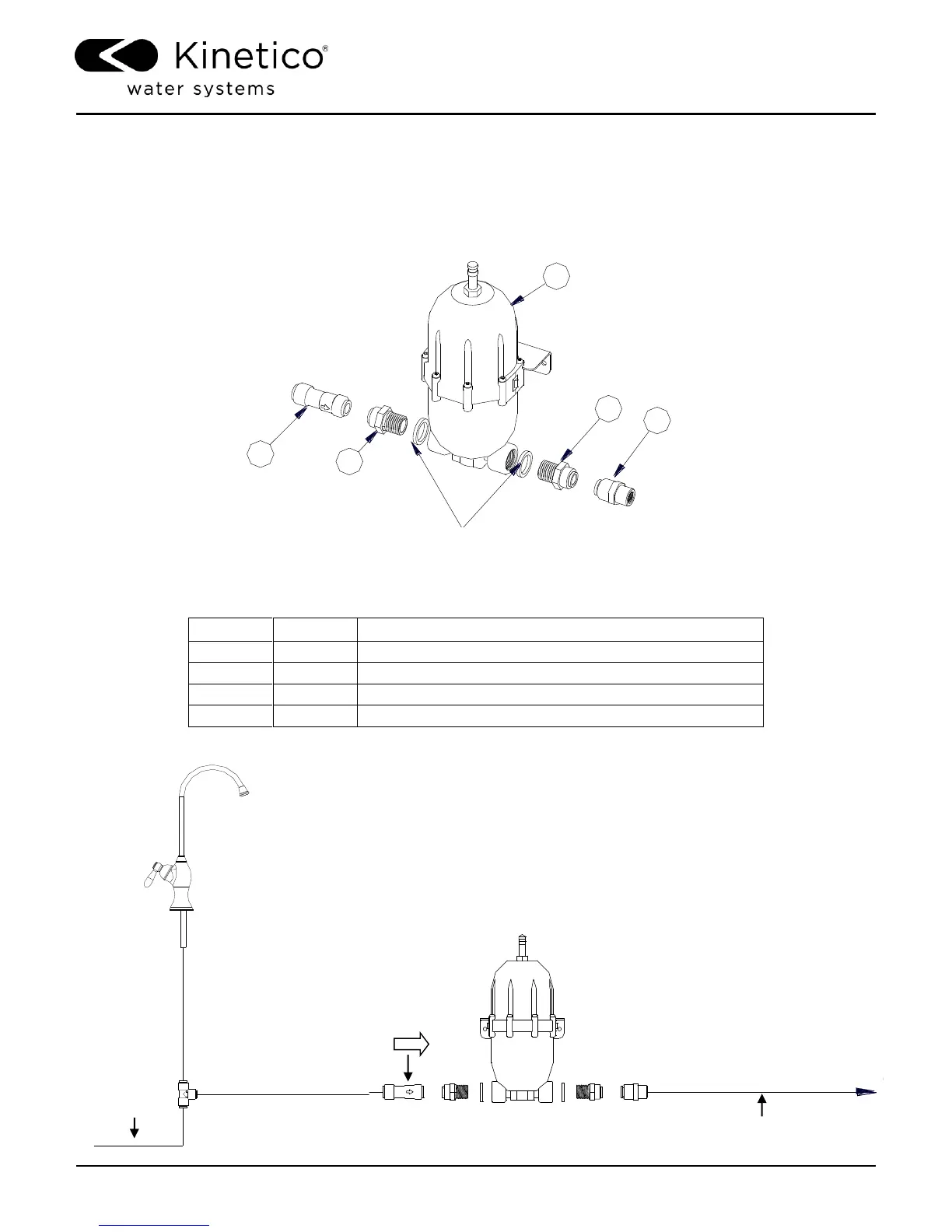

13475 - K5 Ice Maker Kit
To Refrigerator
Faucet Line From K5
1
3
2
3
4
Note:
Fittings seal on rubber washers.
Do not use teflon tape on fittings.
Item # Part # Title
1 8954C Check Valve, 3/8'' x 3/8'' MG
2 13473 Ice Maker Accumulator Tank
3 8970 Connector, 1/2MNPT x 3/8T {A6MC8-PG}
4 11439 Refridgerator/Ice Maker 3/8 Adapter Fitting
4
Note:
Fittings seal on rubber washers.
Do not use teflon tape on fittings.
Item # Part # Title
1 8954C Check Valve, 3/8'' x 3/8'' MG
2 13473 Ice Maker Accumulator Tank
3 8970 Connector, 1/2MNPT x 3/8T {A6MC8-PG}
4 11439 Refridgerator/Ice Maker 3/8 Adapter Fitting
13474 - Install Instruction, Ice maker Kit, K5
13475 - K5 Ice Maker Kit
To Refrigerator
Faucet Line From K5
1
3
2
3
Faucet Line
from K5
13475 – K5 Ice Maker Kit
Line to
Refrigerator
13475 - K5 Ice Maker Kit
To Refrigerator
Faucet Line From K5
1
3
2
3
4
Note:
Fittings seal on rubber washers.
Do not use teflon tape on fittings.
Item # Part # Title
1 8954C Check Valve, 3/8'' x 3/8'' MG
2 13473 Ice Maker Accumulator Tank
3 8970 Connector, 1/2MNPT x 3/8T {A6MC8-PG}
4 11439 Refridgerator/Ice Maker 3/8 Adapter Fitting
Note:
Check valve arrow is
pointing towards
accumulator.
K5 Ice Maker Kit
The K-5 Ice Maker Kit is used in conjunction with the K5 to eliminate partial ice cubes when
there is inadequate ice cube production at the refrigerator.
Item #
Part #
Title
1
8954C
Check Valve, ⅜” x ⅜” MG
2
13473
Ice Maker Accumulator Tank
3
8970
Connector, ½ MNPT x ⅜ T {A6MC8-PG}
4
11439
Refrigerator/Ice Maker ⅜ Adapter Fitting
Note:
Fittings seal on rubber washers.
Do not use Teflon tape on fittings.
Accumulator air charge is 10 psi.

Kinetico K5 Specifications

General

Filter Type	Reverse Osmosis
Daily Production Rate	50 gallons per day
Certifications	NSF/ANSI 58
Filter Life	6-12 months
Waste Water Ratio	1:1
