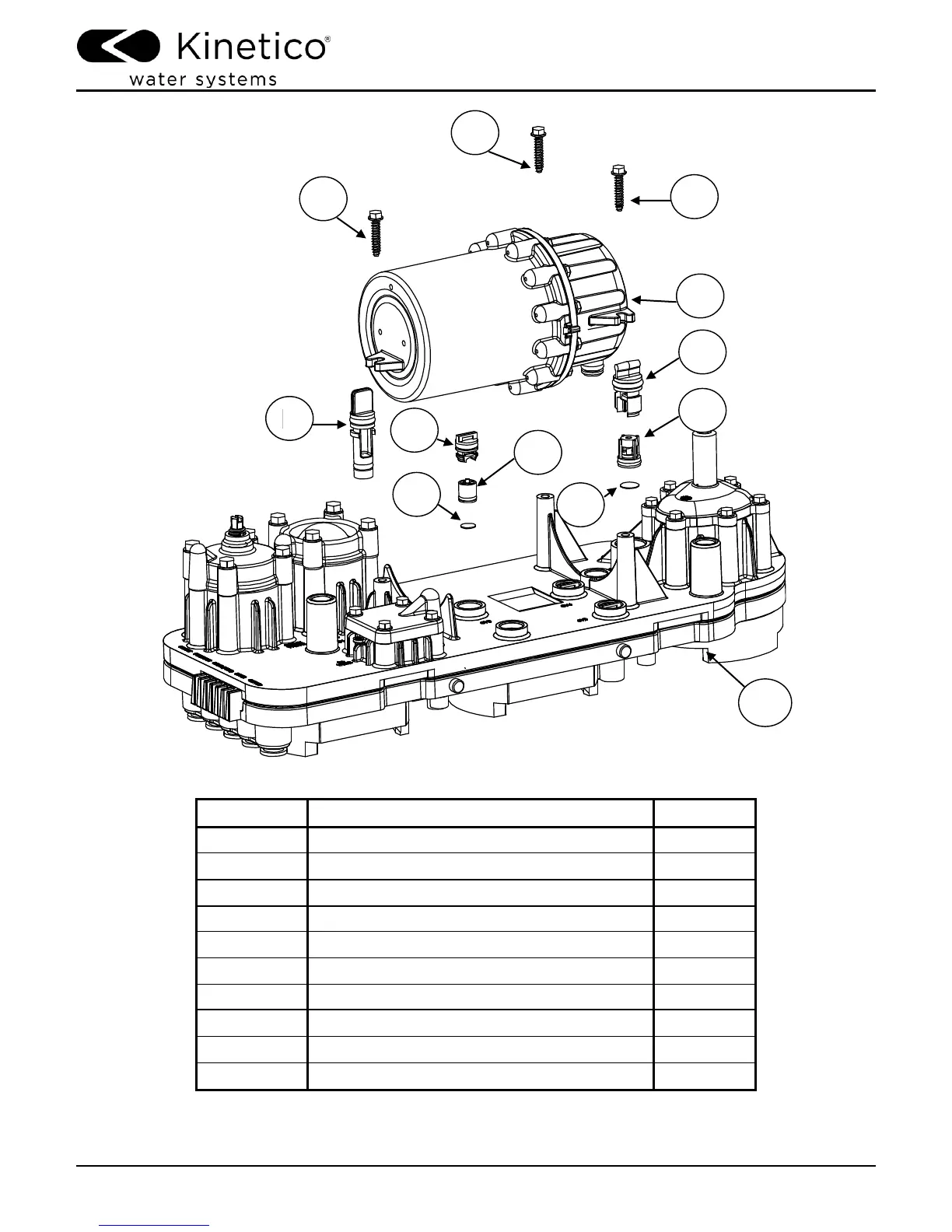

Kinetico K5 - Page 47

K5 Drinking Water Station
Revised: 09/2016 Drinking Water Systems Section 7
Page 47
Dwg. No.
Description
Part No.
1
Screw, MAC Cap
12743
2
Flush Accumulator Assembly
12753
3
Reject Flow Control with O-ring & Screen
12791A
4
Cap, Check Valve – Small
12789
5
Check Valve 10 mm
12713A
6
Cap, Check Valve – Large
12790A
7
Check Valve 13 mm
12714A
8
Filter Disc, L-1 SS
10781
9
Screen, .330 Disc
12763
10
K5 Manifold Assembly
12747
10
1
1
1
2
4
5
9
6
7
8
3
