14. SELF-HELP MOVEMENT OUT OF CONTROL(FAIL SAFE)
15. RESET SETTING
page 13
Model lost in the remote control transmitter signal when the implementation of dynamic
self-help movement. This action is stored in a set of 8-channel receiver, by the user to set
their own store.
Method: Open the first remote control transmitter, receiver after the opening, to ensure
that the receiver Always light, can be normal to accept instructions. Press the button on
the receiver to keep 2 seconds until the light is off, said the store began to manipulate the
action, this time to send button to open soon in the remote control transmitters operate on
self-help movement to do that in 5 seconds after the re-turn on the light before the operation
In the remote control transmitter made on the operation of action will be down the memory.
If the indicator light turns off so that the buttons did not release the button until the indicator
light to turn on, it will lift the self-storage process moves.
Press SET key to SERVO blink, then press down SEL+ CH keys and You will hear “DI”
sound as confirmation.
FIXED-WING AIRCRAFT
AUX2(CH8)
AUX1(CH7)
Flap Servo (CH6)
Landing Gear Servo
(CH5)
Rudder Servo (CH4)
Throttle Servo (CH3)
Elevator Servo (CH2)
Aileron Servo (CH1)
OFF
ON
BATTERY
SWITCH
RECEIVER
ANTENNA

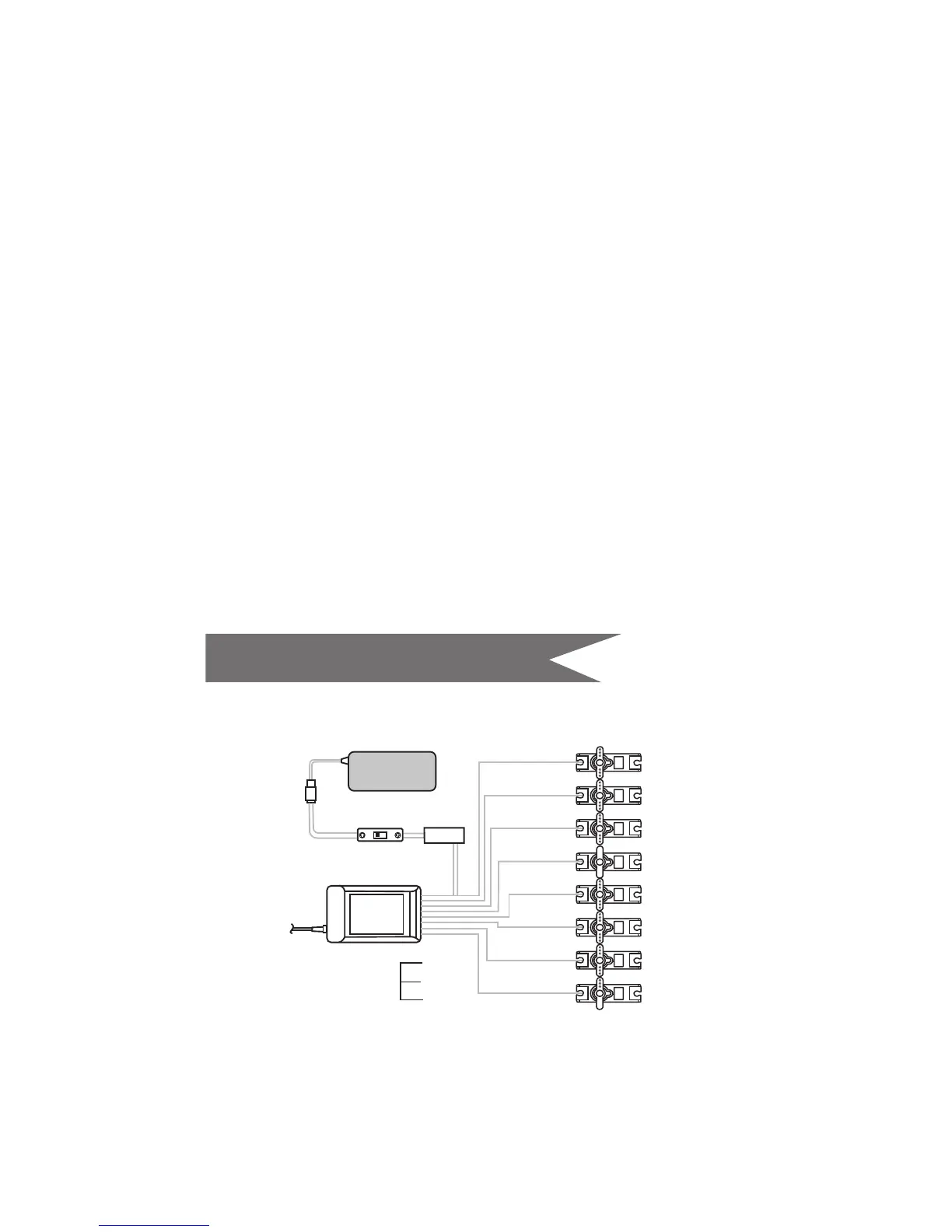

1. INSTALLATION DIAGRAM:
UBEC
ESC
SIGNAL
+
-
