6.1#Wheel#Size#Setting#
Short press “MODE” button to enter the setting option. The settable values are: 16, 18, 20, 22, 24, 26,
700C, 28 and 29 inch. Select the corresponding wheel diameter of the E-bike through “UP” and “DOWN”
button to ensure the accuracy of the speed display and mileage display. Long press “MODE” button to
return to the setting list interface.

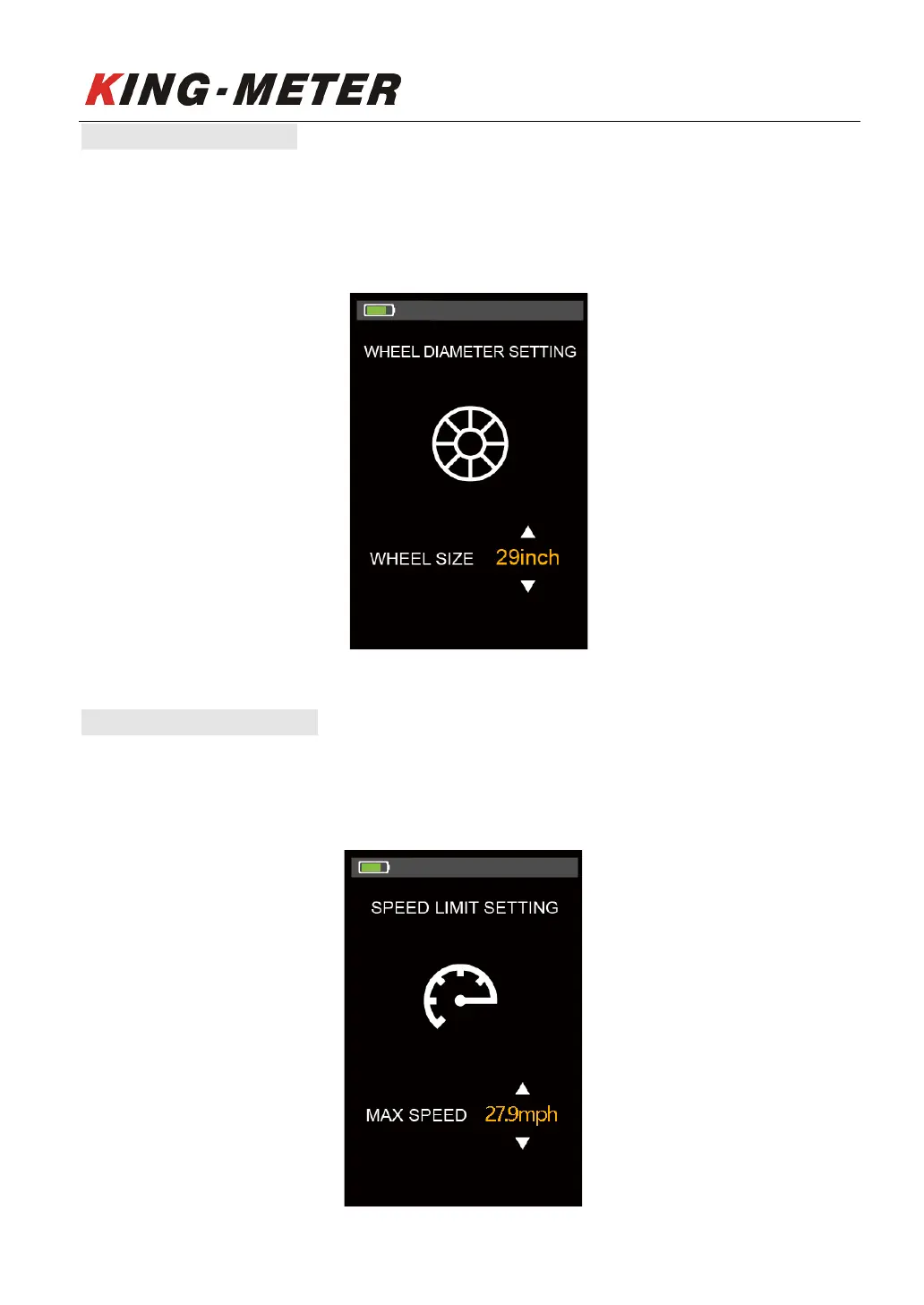

Wheel size setting interface
6.2#Speed#Limit#Setting# #
Short press “MODE” button to enter the setting option. The optional range of the maximum speed
setting is 10.5mph-27.9mph(17Km/h to45Km/h). It can be set by “UP” and “DOWN” button. Long press
“MODE” button to return to the setting list interface.
