Kingsman MDV30 - Door and Grill Installation

21

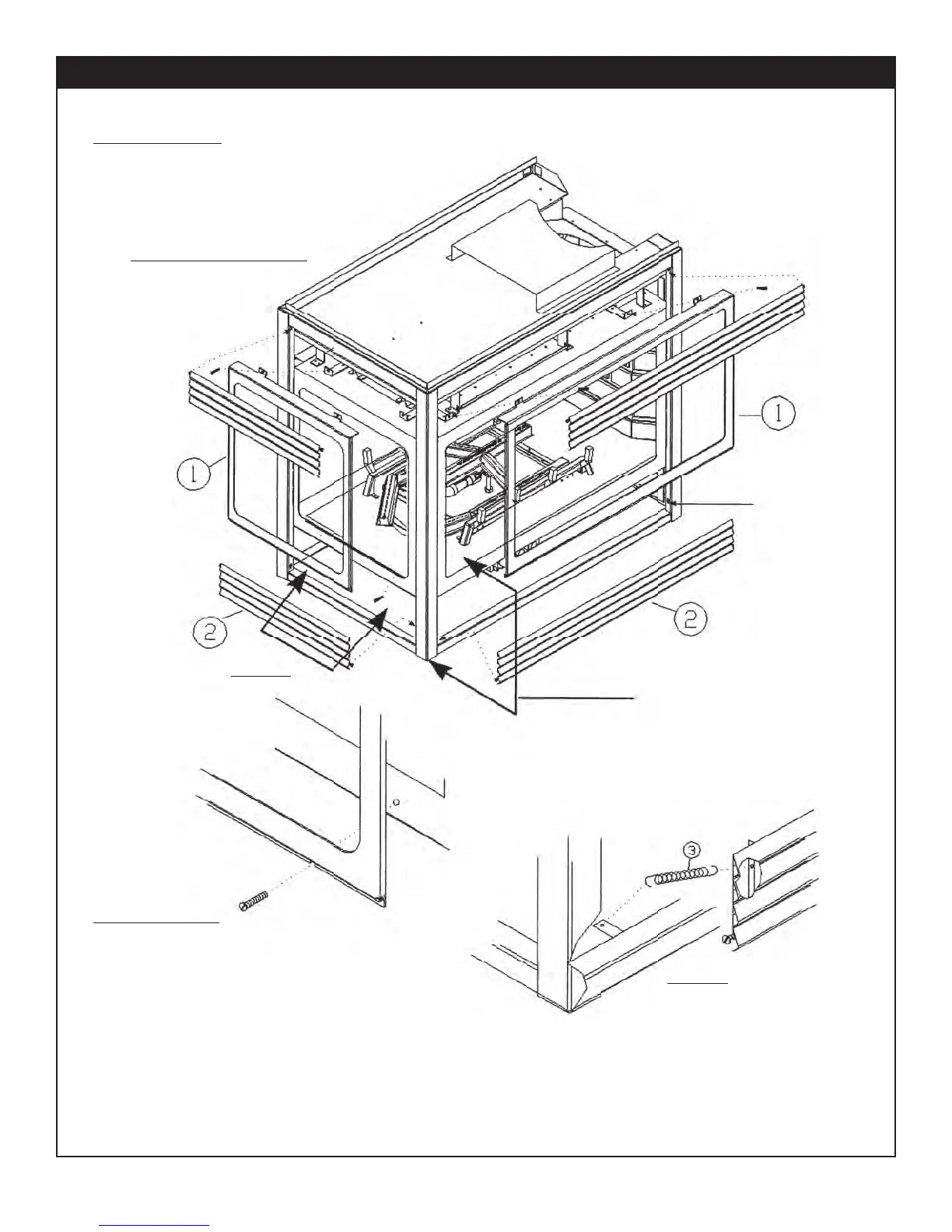

DOOR ASSEMBLY
To install all Doors, first install bottom
screws into Fireplace. Set slots in bottom
of Doors onto screws, slide top of Door onto
Fireplace and insert top screws. Tighten
bottom and top screws so that they are
snug.
DO NOT OVER TIGHTEN.
GRILL ASSEMBLY
1. In both top and bottom inside corner
posts there are Teardrop slots. As shown
in diagram.
2. On Grills there are screws in both ends.
To install slide the head into one of the teardrop slots,
then slide Grill to opposite side, repeat procedure.
These screws may have to be adjusted for proper alignment
and length.
3. All Grills have screws in top part of Grill with exception to lower
Grill for Gas Valve access. This Grill will fit either side depending on
L/H or R/H Fireplace installation.
The Grill for Gas Valve access requires the installation of 2 springs on both ends.
Refer to VIEW .A. for proper installation.
VIEW .A.
VIEW .B.
WINDOW
FIREPLACE
FRAME
VIEW .A.
TEARDROP
SLOTS
Door and Grill Installation
