General Vent Installation Information
This gas appliance is approved to be vented either through the
side wall or vertically through the roof. Only Kingsman venting
kits and components specifically approved and LABELED for
this stove may be used. This appliance is also approved for use
with Simpson-Duravent Direct Vent system (Model DV-GS
Series) and Selkirk Direct Temp.
SIMPSON DURAVENT OR SELKIRK DIRECT TEMP
When using Simpson Duravent or Selkirk Direct Temp a Duravent
hardpipe adapter must be used
(part # ZDVDFA for fireplaces). Follow
installation instructions provided
by Simpson Duravent/Selkirk Direct
Temp for installation of pipe and adhere to the clearance to com-
bustibles provided in this manual.
Apply a bead of Mill Pac high temp
sealant to all joints of pipes, adapters and termination, when using
Kingsman venting and Simpson Duravent venting.
Flex Pipe Venting
Flex pipe is shipped in unexpanded length. When installing pipe
expand the lengths. Pipe can be expanded to twice their lengths e.g. 4ft.
to 8ft.
Do not use more than 2 couplers to extend short pipes. Single sections
are preferred in an installation attaching at the fireplace and termina-
tion.
Place the spring spaces provided approximately every two feet to stabi-
lize 4” flex in the center of 7” flex. When forming bends place spring
in bend or before and after. (See Fig. 1).
Horizontal runs require support metal straps every 2 feet. In off set
installation support straps should be used to stabilize pipe.
Expand 4” and 7” flex pipe to the point that the 7” protrudes approxi-
mately 2 to 3 inches past outer wall and the 4” flex protrudes approxi-
mately 2 to 3 inches past the 7” flex. See Fig. 1. Attach the 4” pipe to
the termination first and secure with sealant and 4 screws, then attach
the 7” flex to the termination with sealant and 4 screws. Termination
may then be moved back to the outer wall and attached to home by
screwing into the framing. Silicone around termination to waterproof.
If siding shield is going to be used attach this using same attaching hole
as the top of termination after termination has been caulked for water
proofing.
Use Term Hi Temp Sealant
Apply a bead of mill pac high temp sealant to all joints and secure with
4 screws at every connection provided at fireplace, termination and any
joint if joining any sections of pipe.
NOTE: It is critical to the proper and safe operation of this fireplace that on all
connections the inner liner and the outer casing are both caulked with liberal
amounts of sealant. Do not use any kind of tape or silicone other than that
recommended in this manual. Mill Pac Sealant
FRAMING DIMENSION
Combustible Wall
Cut a 11” hole through exterior wall and frame as shown below.
Non combustible Wall
Cut or drill 8” or 204mm diameter hole.
OPTIONAL
CLAMPS

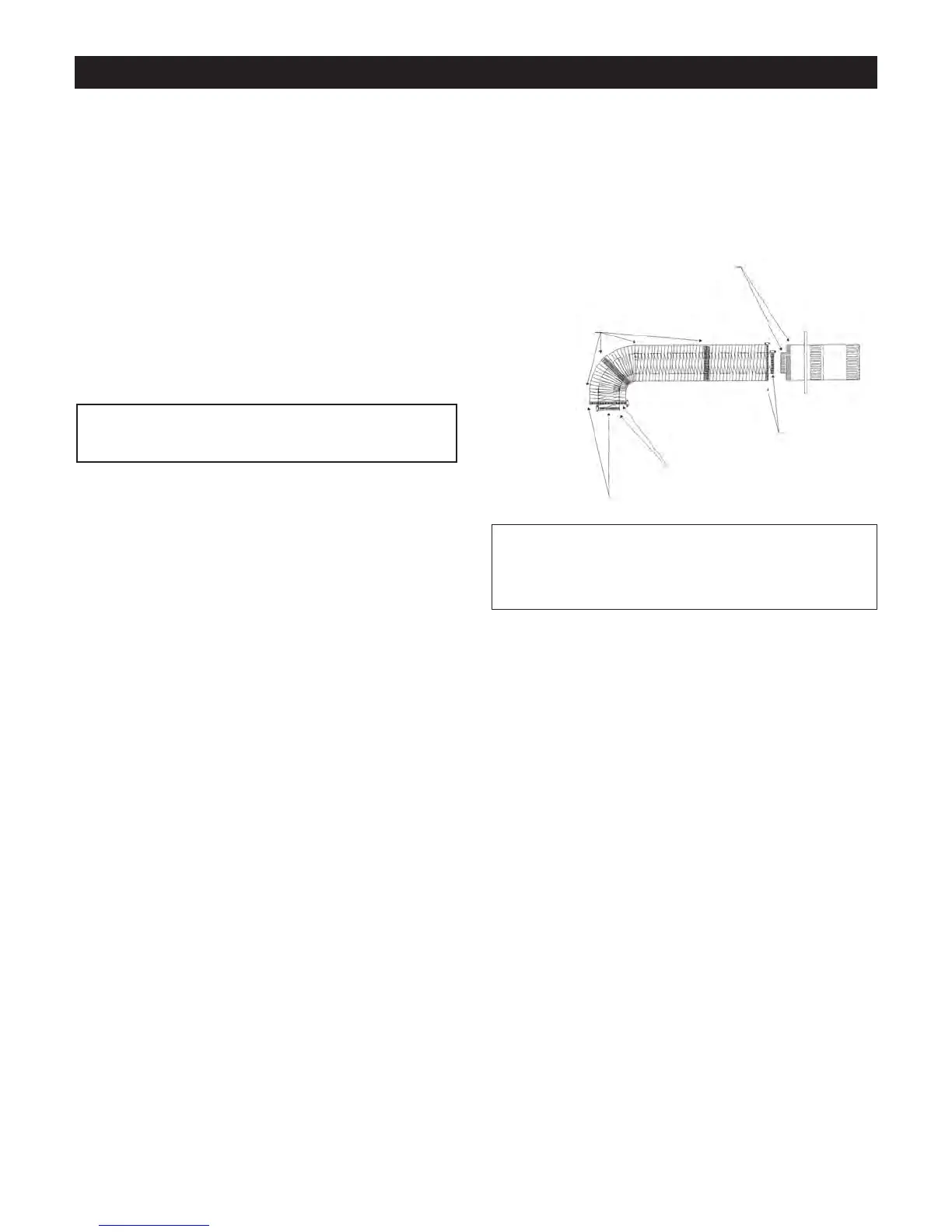

FIGURE 1
MAX. DISTANCE BETWEEN SPACERS 2 FEET
SPRING SPACERS
OPTIONAL
CLAMPS
SEAL WITH HIGH TEMP. SEALANT
SEAL WITH HIGH TEMP. SEALANT
WARNING: DO NOT mix parts from different sys-
tems unless stated in the manual.
