22
Before installing Bay window spread crushed rock
in bottom of Bay window pan. Sprinkle Vermiculite on
top of crushed rock.
To install Bay window assembly slightly tilt back
and hook bottom onto bottom channel of Fireplace.
Before pushing Bay window into place check to
make sure original window is centered.
Center Bay window and push into place,
using original screws. Compress original
window and Bay window together.
Install top louver only.

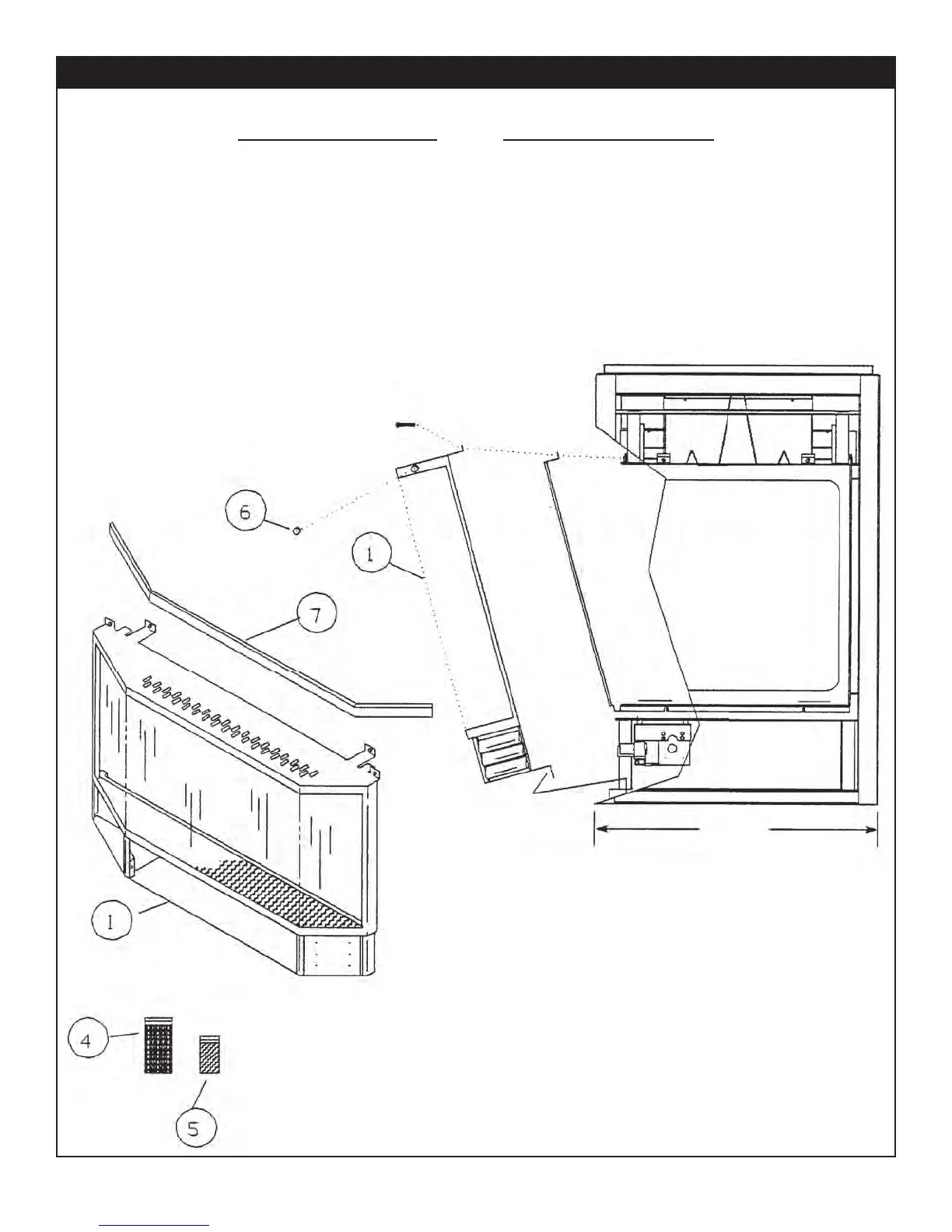

To complete your installation place
magnet on each side as shown in
illustration and install Brass Trim.
“CAUTION” “WARNING”
WHEN INSTALLING Bay window ASSEMBLY ORIGINAL GLASS WINDOW
MUST REMAIN INSTALLED ON FIREPLACE. FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY CAUSE INJURY.
THE BAY WINDOW IS NOT TO BE USED WITH TEMPERED GLASS MODEL MDV30 SERIES
SCREW
MAGNET
Bay window
21.687"
Ref. No. Part No. Description 1
“1” 1001-500 Bay window Assembly 1
“2” 1001-P189SI S.I.T. Extension Hi/Low 1
“3” 1001-P188SI S.I.T. Extension On/Off 1
“4” Misc. Crushed Rock 1 1/2
“5” Misc. Vermiculite 1
“6” 1000-309 Magnet 2
“7” 1001-506 Brass Trim Top 1
Bay window
Crushed Rock
Vermiculite
BRASS TRIM
END
VIEW
Bay Window Instructions
- MDV38/MDV39 Series - Ceramic Glass Models
