Kingsman MDV30 - Millivolt Lighting Instructions

31

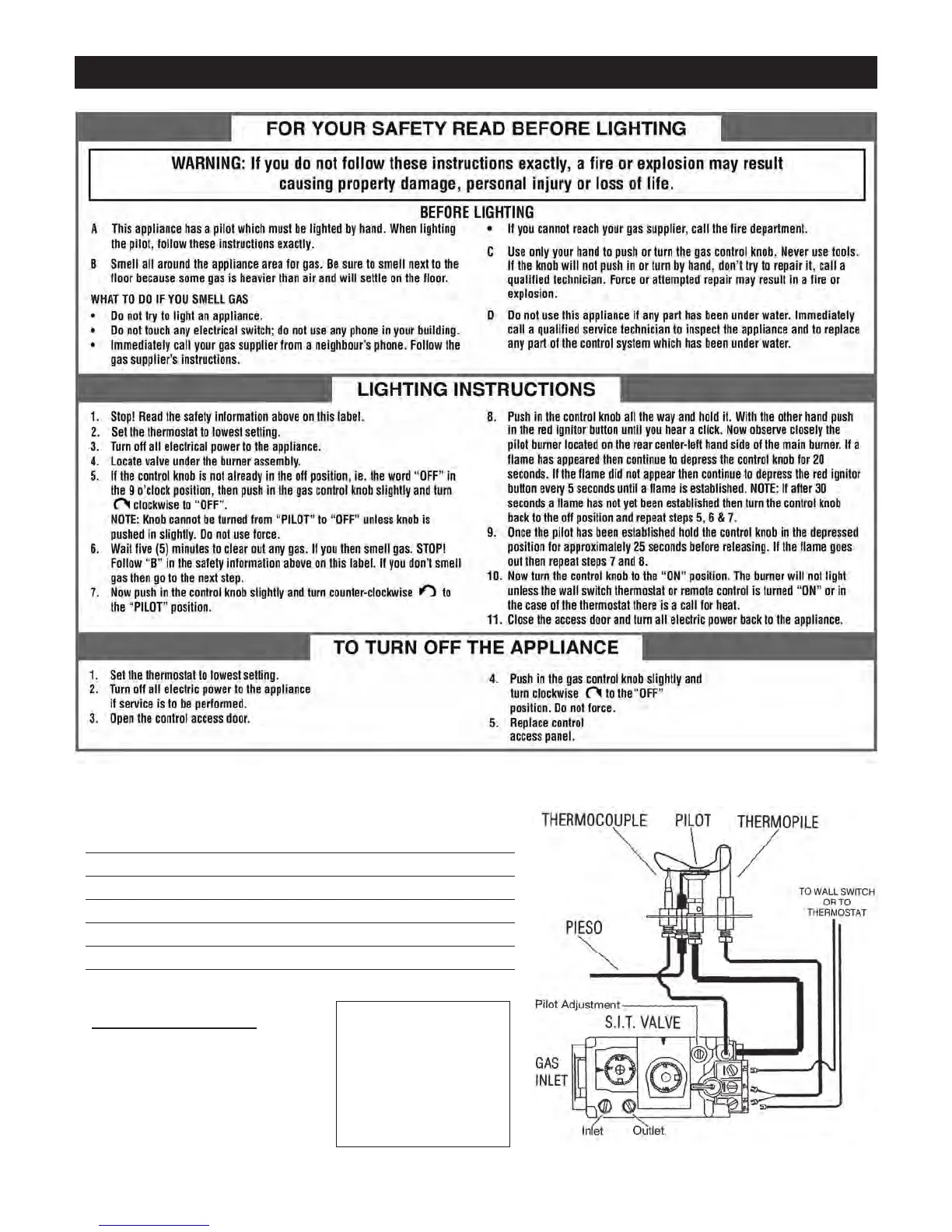

Millivolt Lighting Instructions
Pilot Burner Adjustment
1.Adjust pilot screw to provide
proper sized flame.
Recommended Maximum Lead Length (Double Wire)
When Using Wall Switch or Thermostat
Wire Size Max. Length
14 GA. 100 FT.
16 GA. 64 FT.
18 GA. 40 FT.
20 GA. 25 FT.
22 GA. 16 FT.
CAUTION: DO NOT
WIRE 120 VOLT
POWER TO MILLI-
VOLT SWITCHES OR
THERMOSTAT.
