Kingsman MDV30 - Log Placement

24

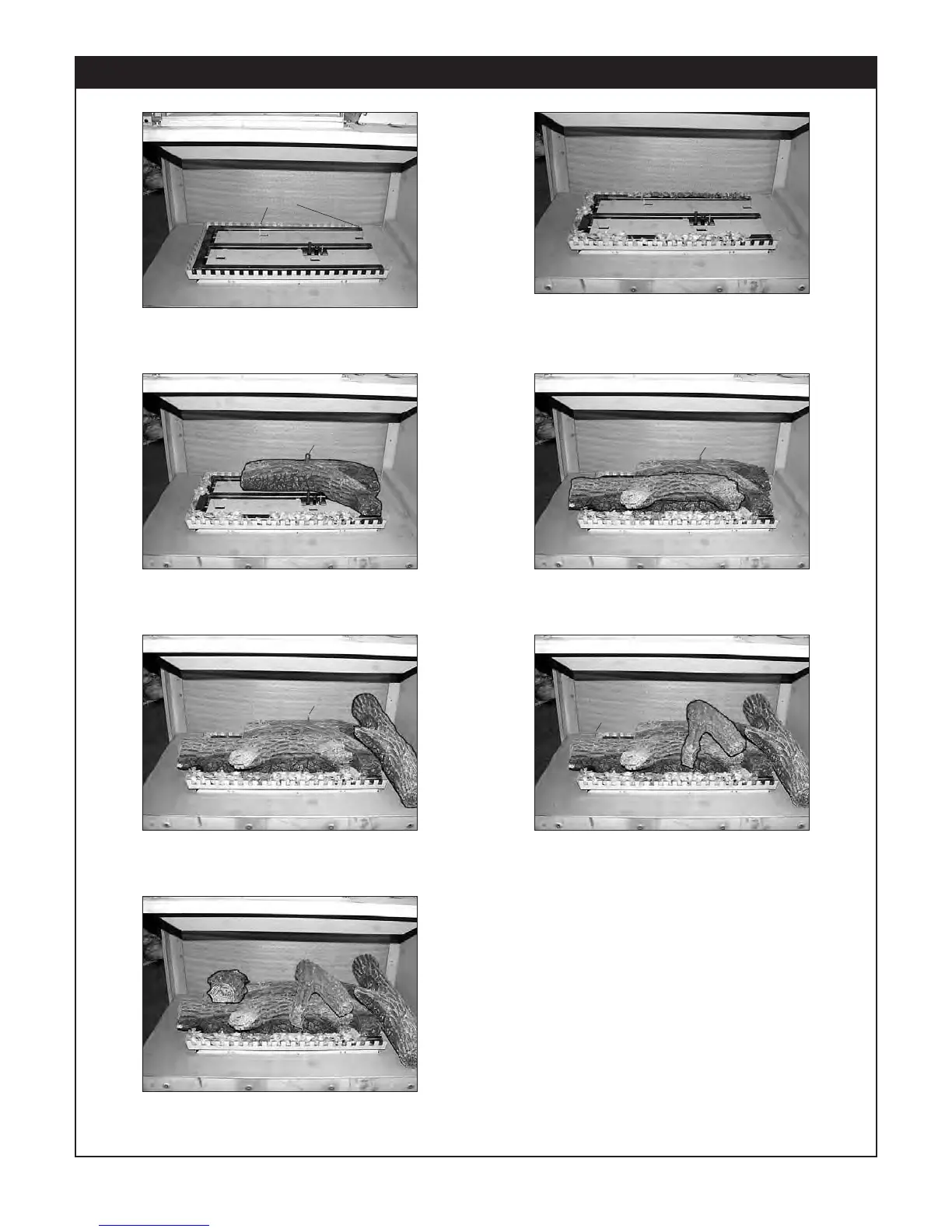

LOGF38 Placement Guidelines for Model MDV30/38
Step (1) If using the MVF40 chassis, omit this step (go to step 2). If
using MDV30 or MDV38, break glowing embers into thumbnail size
and place along the perimeter of the burner. Do not place on middle
burner (as illustrated). Care should be taken not to block burner ports.
Step (2) Take Log #4 and place onto burner using the two log tabs
(located on burner pan) as a guide.
Step (3) Take Log #1 and place onto burner using the two log tabs
(located on burner pan) as a guide.
Step (4) Place Log #5 onto Log #4 using the log pin as a guide.
Ensure Log #5 rests on the shape of Log #4.
Step (5) Place Log #3 onto both Log #1 and Log #5 using the log pins
as a guide.
Step (6) Place Log #2 onto both Log #1 and #4 using the log pins as a
guide. Ensure Log #2 does not cover burner.
Log Tabs
Log Pin
Log Pin
Log Pin
Log Pin
