Kipor IG1000 Shop Manual
5
of 1
of 1 rating
75 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

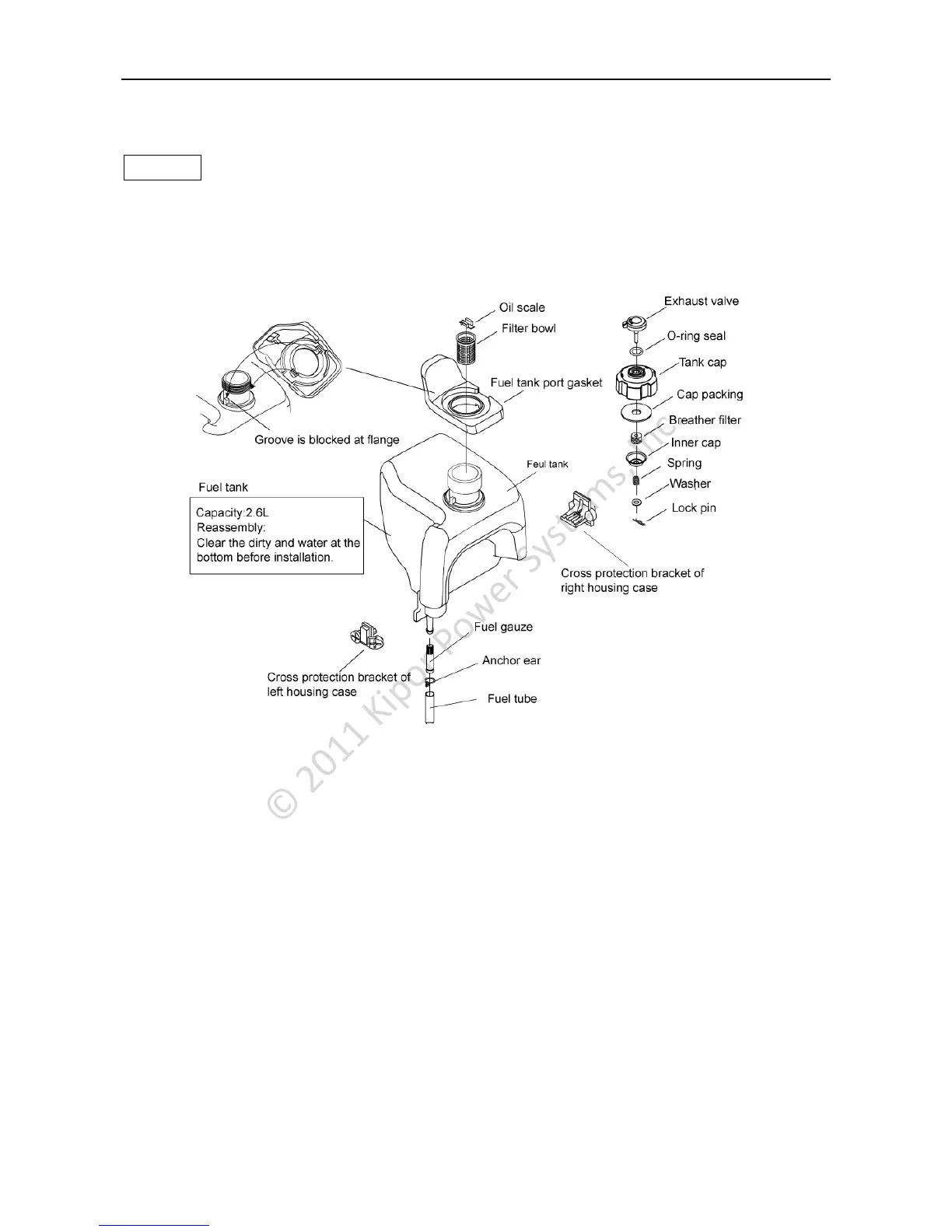

8.2 Fuel t
ank assembly
Caution
■
Gasoline is highly flammable and
explosive. Y
ou can be burned or
seriously injured w
hen handing
fuel. Keep heat, sparks, and flame away
. Wipe up spills immediately
.
Loosen the drain screw to drain
the carburetor thoroughly before removal.
]
38
©
2011
Kipor
Power
Systems,
Inc.
42
44
Table of Contents
Default Chapter
3
Table of Contents
3
1 Specifications/Wiring Diagram
6
Specifications
6
Wiring Diagrams
6
2 Service Information
11
The Importance of Proper Servicing
11
Important Safety Precautions
11
Service Rules
12
Electrical Precautions
12
Maintenance Standards
14
Torque Values
15
3 Troubleshooting
16
General Symptoms and Causes
16
Hard Starting
17
Engine Stops Running
20
Engine Speed too High or Low
21
Smart Throttle
22
No DC Output
23
4 Maintenance
24
Maintenance Schedule
24
Engine Oil
24
Checking the Low Oil Alarm
25
Air Cleaner
26
Spark Plug
27
Valve Clearance
28
Fuel Pump and Hoses
32
Spark Arrestor
33
5 Muffler
34
6 Air Filter/Carburetor
35
Air Filter Removal and Installation
35
Carburetor Removal and Installation
35
Stepping Motor Removal and Installation
36
Carburetor Exploded Drawing
37
Inspection
38
7 Control Panel
39
Removal and Installation
39
Inspection
40
8 Housing/Fuel Tank
42
Housing Disassembly
42
Fuel Tank Assembly
43
9 Recoil Starter/Air Conduct Cover/Igntion Coil/Air Conduct Plate
44
Disassembly and Reassembly
44
Air Conduct Plate
45
Recoil Starter
46
Ignition Coil
49
10 Alternator/Trigger
50
Alternator
50
Inspection
50
Trigger Adjustment
51
11 Cylinder Cover/Rocker Arm
52
Disassembly/Reassembly
52
Inspection
53
12 Crankcase Cover/Camshaft Drive Chain
54
Disassembly
54
Crankshaft Installation
55
Crankcase Cover Assembly
56
Inspection
56
Disassembly/Reassembly
59
Piston
60
Inspection
61
13 Appendix A- Capacitor
71
Appendix B- Carb Certified Units
73
Appendix C- Parallel Operation
74
Other manuals for Kipor IG1000
Operation Manual
40 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Kipor IG1000 and is the answer not in the manual?
Ask a question
Kipor IG1000 Specifications
General
Brand
Kipor
Model
IG1000
Category
Portable Generator
Language
English
Related product manuals
Kipor IG3000
40 pages
Kipor IG2000
74 pages
Kipor IG6000h
15 pages
Kipor IG2000P
74 pages
Kipor Sinemaster IG2600
22 pages
Kipor Sinemaster IG3000
42 pages
Kipor Sinemaster IG6000
43 pages
Kipor KDE16EA
24 pages
Kipor KDE19EA
24 pages
Kipor KDE16STA3
24 pages
Kipor KDE19STA3
24 pages
Kipor Camping-Mate KGE1300Tc
21 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
