DP480 Service Manual
22
6. Assembly and Disassembly
This radio is a sophisticated communication device with precise and compact structure. Please be careful
with the repair.
6.1.Installing and Uninstalling the Battery
Installing the Battery

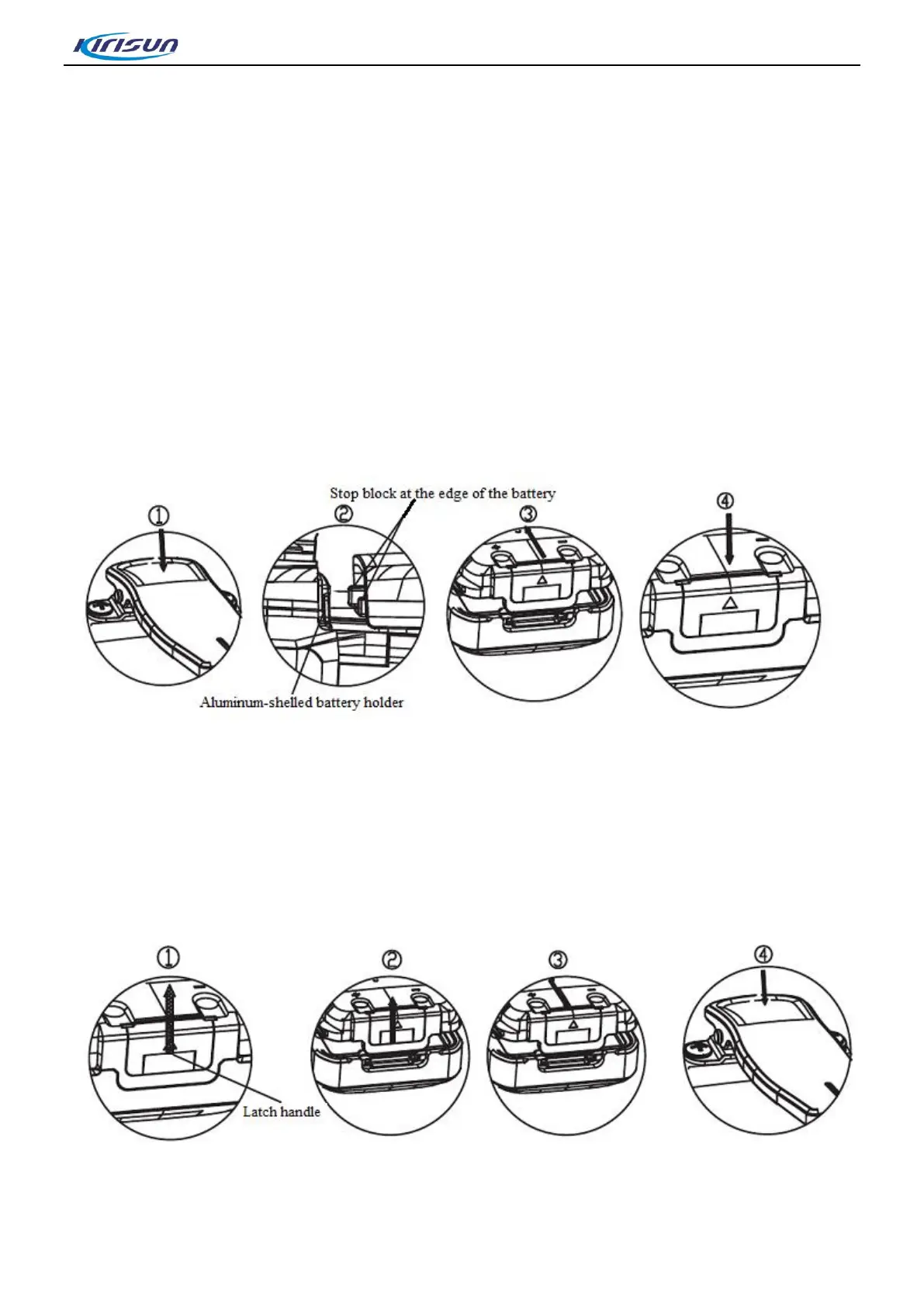

Step 1.Press the upper part of the belt clip gently so that it goes up. (Figure ①)
Step 2.Align the battery with the battery holder at the back of the radio, and then insert the battery. (Figure
②)
Step 3.Push the battery in the direction indicated until the latch is in position. (Figure ③)
Step 4.Press the upper part of the battery until it is latched. (Figure ④)
Uninstalling the Battery
Step 1.Power off the radio.
Step 2.Slide the latch in the indicated direction, and the battery will go up. (Figures ① and ②)
Step 3.the battery in the indicated direction to take it down. (Figure ③) If the belt clip is installed, please first
press the upper part of it so that it goes up.
