2. External View and Keys

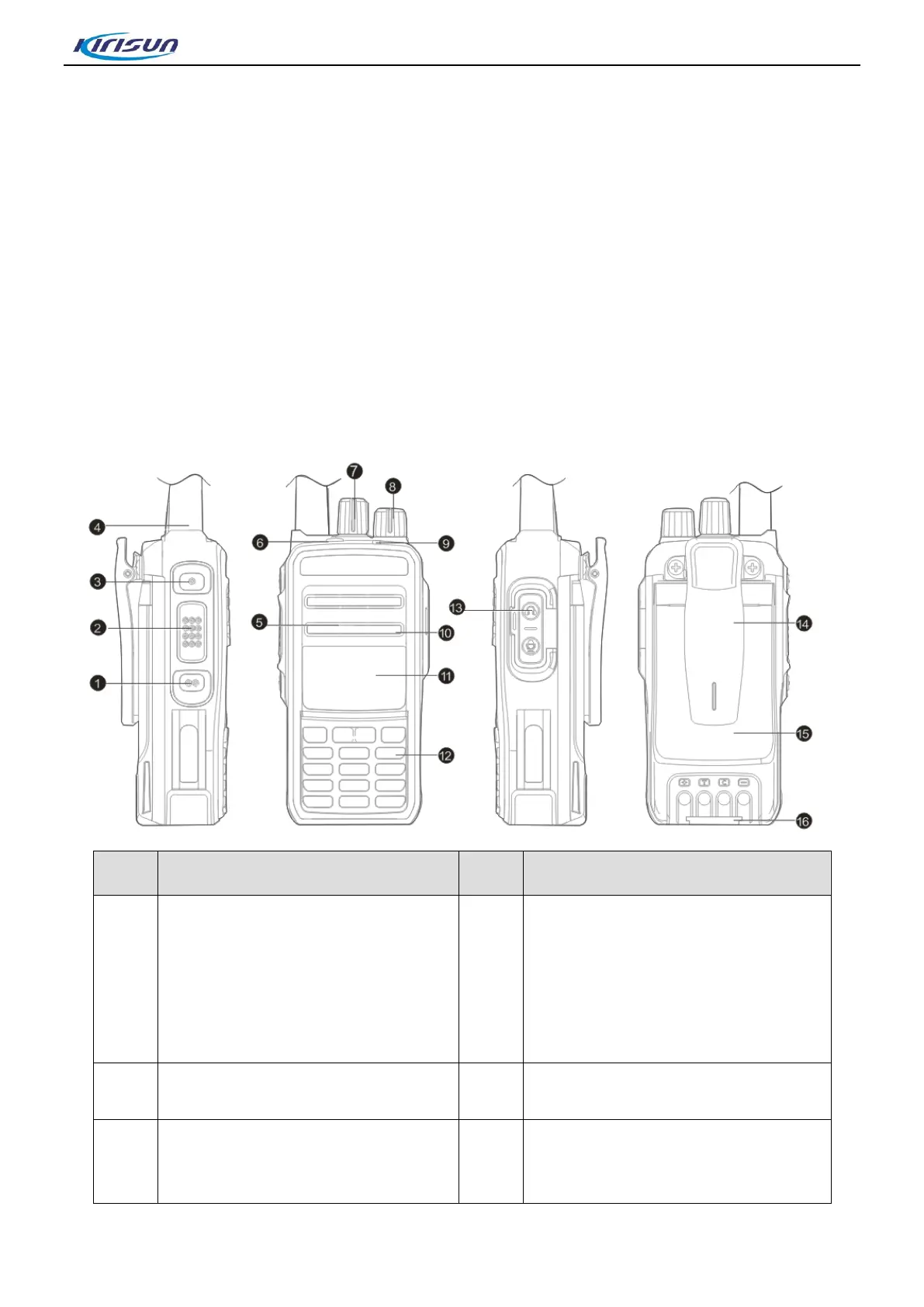

2.1.External View
NO.
Description
NO.
Description
1
Lower Side Key (Programmable)
Programmable by a dealer to achieve
various functions. See 2.2
Programmable Keys.
9
LED Indicator
Red light on: The radio is transmitting
signals.
Green light on: The radio is receiving
signals.
Flashing red light: The battery is low.
2
PTT Key
Press it to make a call and talk.
10
Microphone
Input voice.
3
Upper Side Key (Programmable)
Programmable by a dealer to achieve
various functions. See 2.2
11
LCD screen

Kirisun DP480 Specifications

General

Brand	Kirisun
Model	DP480
Category	Two-Way Radio
Language	English
