Kirisun DP770 Service Manual

DP770 Service Manual

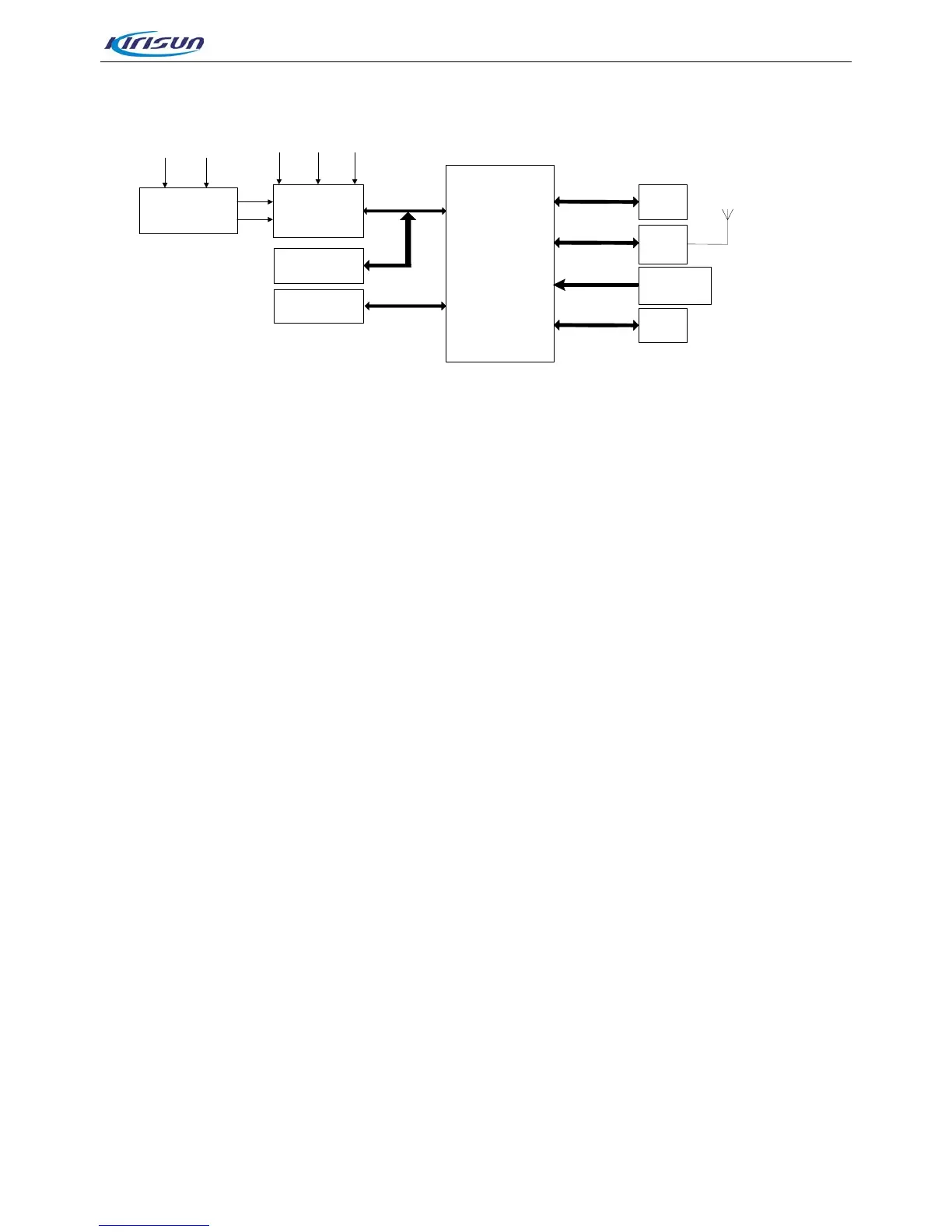

Figure 3-9 The Composing of System Basic Peripheral
ADC
Voice level detect
Codec
Accelerometer
TF card
IIC0
INT_MIC
EXT_MIC
CVDECT
Voltage
Temperature
detect
IIC1
GPS
UART0
OmapL138
Key scan module
LCD
LCD
controler
4. Function Instruction and Parameters Setting
4.1. General Functions
• Support P-Call, G-Call, A-Call in digital mode.
• Support P-Call, G-Call, A-Call in analog mode.
• Support Transmit Interrupt function in digital mode.
• Support Encryption of both voice and data.
• Support Short message, status message and GPS data information.
• Support Stun, Un-kill, Remote Monitor, Call Alert digital signaling.
• Support Self-defined Kill digital signaling.
• Support CTCSS/CDCSS in analog mode.
• Support MDC1200, 2 Tone, DTMF, 5Tone signaling system in analog mode.
• Support Emergency function.
• Support scan function of digital channel, analog channel and mixed digital and analog channel.
• Support the maximum of 1024 channels capacity.
• Support the maximum of 248 Zones and the maximum of 128 channels in every zone.
• Support the maximum of 512 contacts.
• Support graphic menu operation interface.
• Support LED, choices of alert tones and vibration indication.
• 12.5 kHz, 20 kHz or 25 kHz channel spaces can be chosen by PC software.
• Real-time display of signal strength.
• Support battery display and low battery alarm alert functions.
