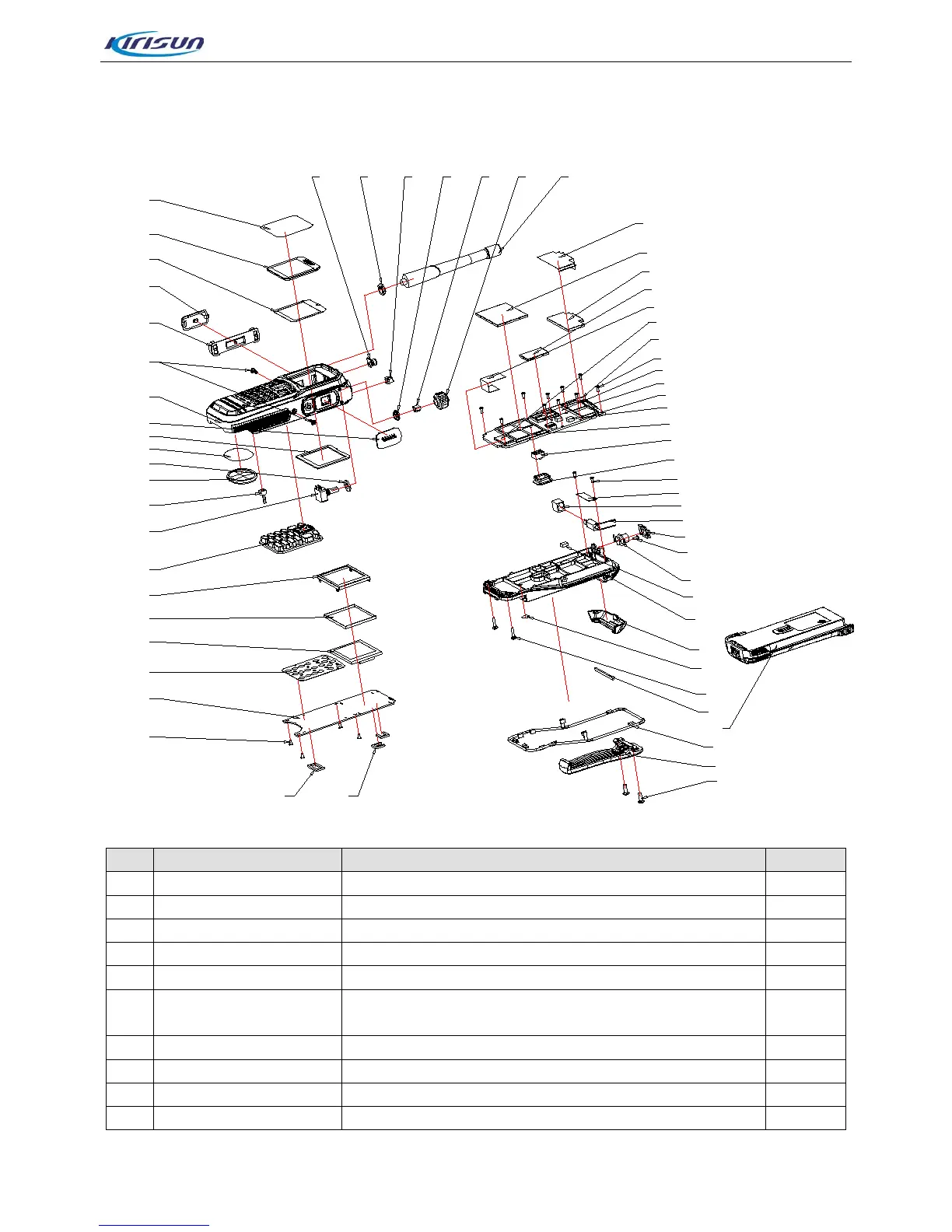

5.7. Exploded View
Spare Parts List（Structure）
NO.
Part Number
Name, Specification
Quantity
1
7WFP-4002-01A
DP770lens protective film PET; transparent
1
2
7MHP-4002-02A-WC
DP770 LCD lens PC+PMMA,
transparent
1
3
7GCJ-S4002-J
DP770 lens double sides adhesive tapeNITTO 57120B
1
4
7MHP-4002-04A-W9
DP770 PTT cover PC+ABS/TPU
；
black/PT2757C
1
5
7MHR-4002-10A-W6
DP770 Side silicone buttons silica gel; blue,PT654C
1
6
7SAF-020070M-SZYB-Z
1
2.0X7.0 iron hardened tooth machine screw; Zinc
plating-black
2
7
7MHP-4002-01A-W0
DP770 front cover shell PC+ABS, texture, black
1
8
6SS1-4002-HL3C
Attachment plate strips nesting
1
9
7MHM-4002-01A-W9
DP770 LCD Sponge back rubber; black
1
10 7GCB-S4002-01A DP770 Trumpet anti-dust mesh nylon; black 1
57585960616263
53
54
55
56
52
46
45
47
48 49
50 51
44
42
41
18
40
43
38
37
36
35
18
39
32
33
34
29 30
31
27
26
25
24
28
22 23
21
20
19
18
17
16
15
13
14
12
11
9
8
7
10
30 6
5
3
2
1
4
