DP770 Service Manual

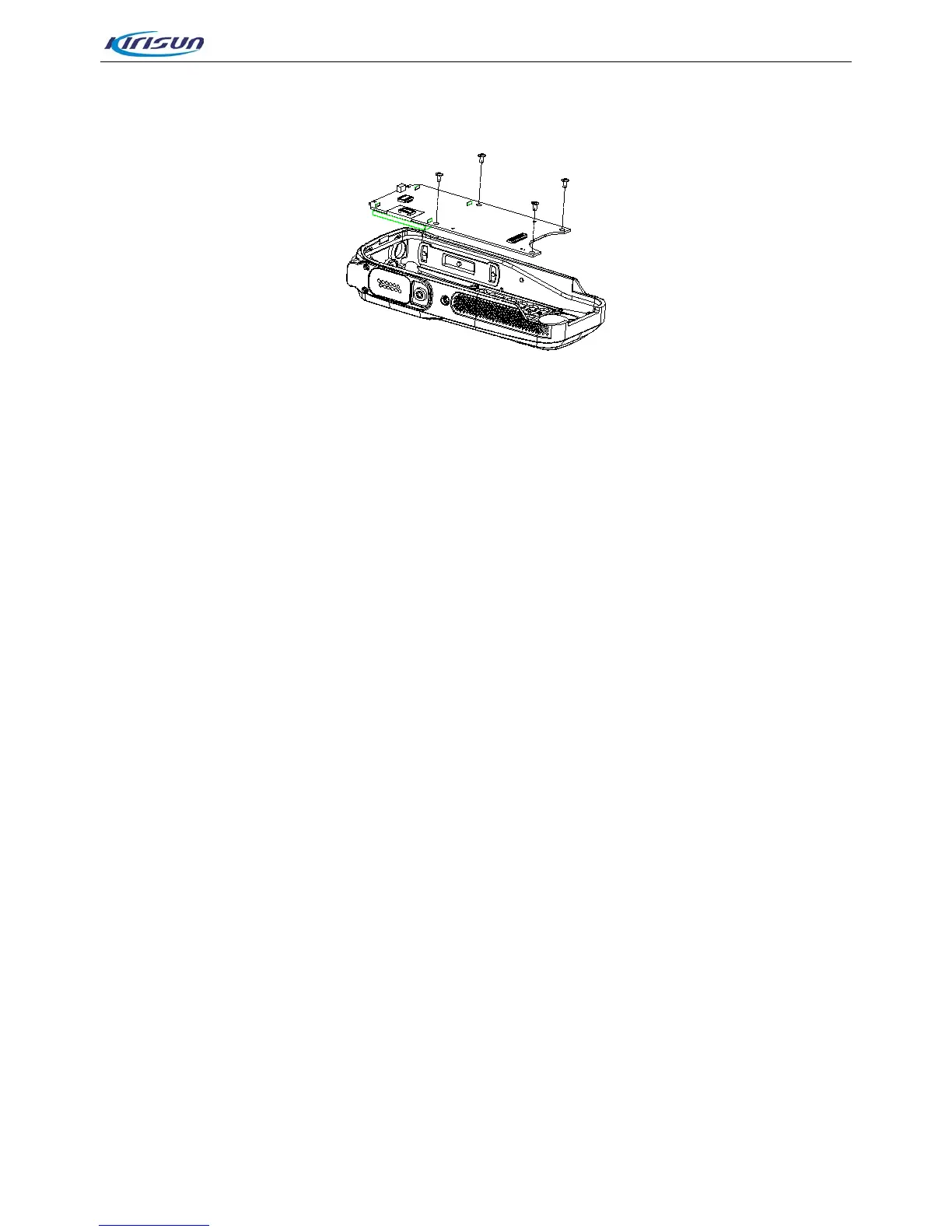

Step 3. Remove the four screws from keypad board and take off keypad PCB from case. (See Figure
5-11)
Figure 5-11
St
ep 4. After the detaching above, you can make the appropriate repairs and debug against fault
conditions.
Page 21 of 102
