1-4 CHAPTER 1 Overview
Series 5000 V2 Sonar System Operations and Maintenance Manual P/N 11214512, Rev. 04

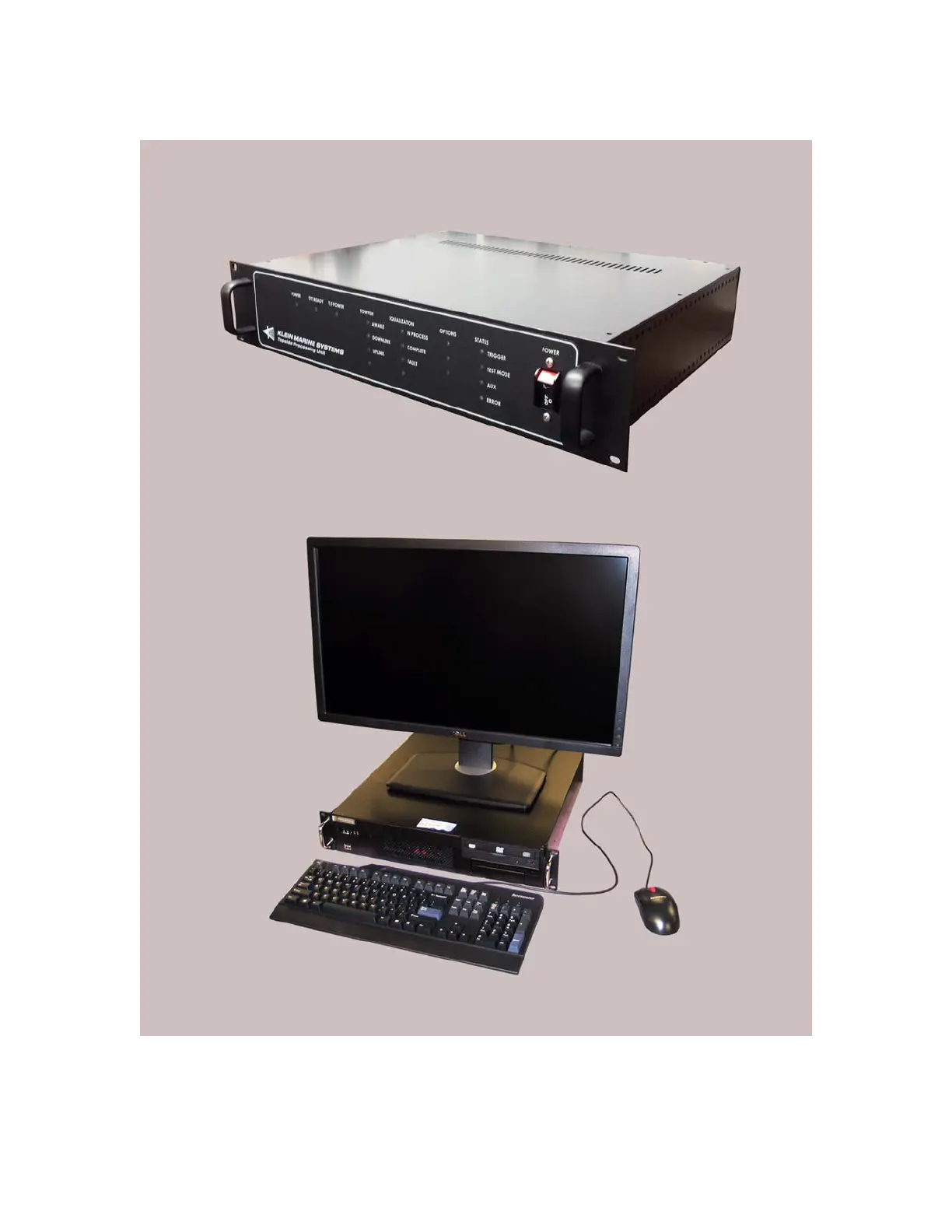

Figure 1-2: Series 5000 V2 Sonar System Topside System Main Components
SonarPro Workstation
Transceiver and Processing Unit (TPU)
